High Quality sand and gravel Separator Sieve Machine
1. Working principle :

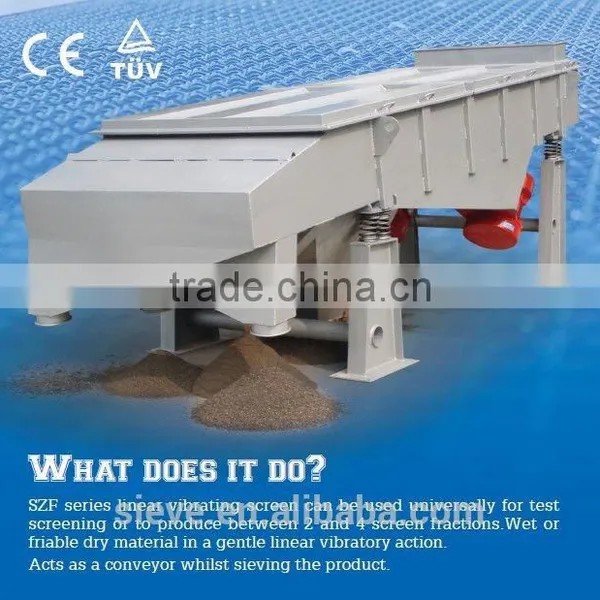

SZF Series linear vibrating screenis low consuming, high output, simple structure, easy,maintain, no powder dispersed, automobile discharged. It can be used universally for test screening or to produce between 2 and 4 screen fractions. A good screening effect is achieved by the circular vibration in the vertical plane.
2. Application :
SZF Series linear vibrating screen are very useful in plastics, rubber, ceramic, food, pharmaceutical, chemical, fertilizer, glass industries. Vibratory screens can be provided with dust proof cover as required. SZF Series linear vibration screen can be supplied of different sizes depending upon capacity required. They can also handle slightly wet material
Effect demo figure
3.Make the order: Inlets, outlets and legs can be custom fit to your installation requirements.
Screen frame:We have two different screen frame structure, help you get more quality screening purpose!

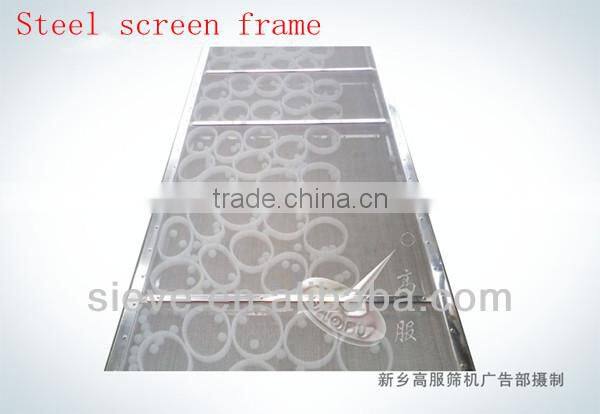

1).Steel screen frame

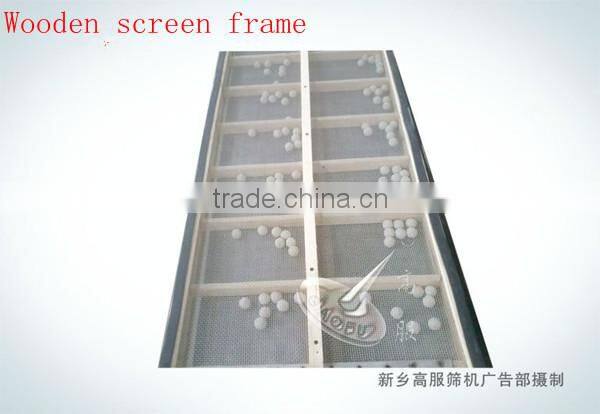

2).wooden screen frame

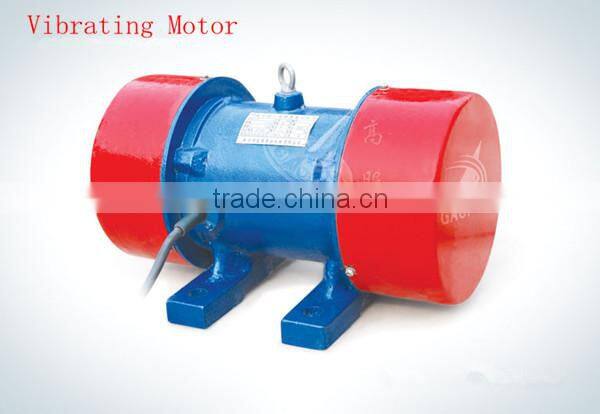

3).Vibrating motor
The results of the screening equipment after the show:Big, small, the smallest size.
4. Technical parameters
Model | Description(m) | Feed Material Size(mm) | Obliquity(°) | Amplitude (mm) | Power (kw) |
SZF-520 | 0.5×2 | 0.074-10 | 0-7 | 4-10 | 2×(0.4-0.75) |
SZF-525 | 0.5×2.5 | 0.074-10 | 0-7 | 4-10 | 2×(0.4-0.75) |
SZF-1020 | 1×2 | 0.074-10 | 0-7 | 4-10 | 2×(0.4-0.75) |
SZF-1025 | 1×2.5 | 0.074-10 | 0-7 | 4-10 | 2×(0.4-1.1) |
SZF-1030 | 1×3 | 0.074-10 | 0-7 | 4-10 | 2×(1.1-1.5) |
SZF-1040 | 1×4 | 0.074-10 | 0-7 | 4-10 | 2×(1.1-1.5) |
SZF-1230 | 1.2×3 | 0.074-10 | 0-7 | 4-10 | 2×(1.1-1.5) |
SZF-1235 | 1.2×3.5 | 0.074-10 | 0-7 | 4-10 | 2×(1.1-2.2) |
SZF-1250 | 1.2×5 | 0.074-10 | 0-7 | 4-10 | 2×(1.1-2.2) |
SZF-1535 | 1.5×3.5 | 0.074-10 | 0-7 | 4-10 | 2×(1.1-2.2) |
SZF-1560 | 1.5×6 | 0.074-10 | 0-7 | 4-10 | 2×(2.2-3.7) |
SZF-1845 | 1.8×4.5 | 0.074-15 | 0-7 | 4-10 | 2×(2.2-3.7) |
SZF-2050 | 2×5 | 0.074-15 | 0-7 | 4-10 | 2×(2.2-3.7) |
SZF-2260 | 2.2×6 | 0.074-1 | 0-7 | 4-10 | 2×(2.2-3.7) |
Note:
1. Each type can be 1-5 layers, and the mesh is from 5 to 200 meshes.
2. Material: SUS 304 / Q235A / 316L
3. Voltage: 380V /400V
5. Our Factory :

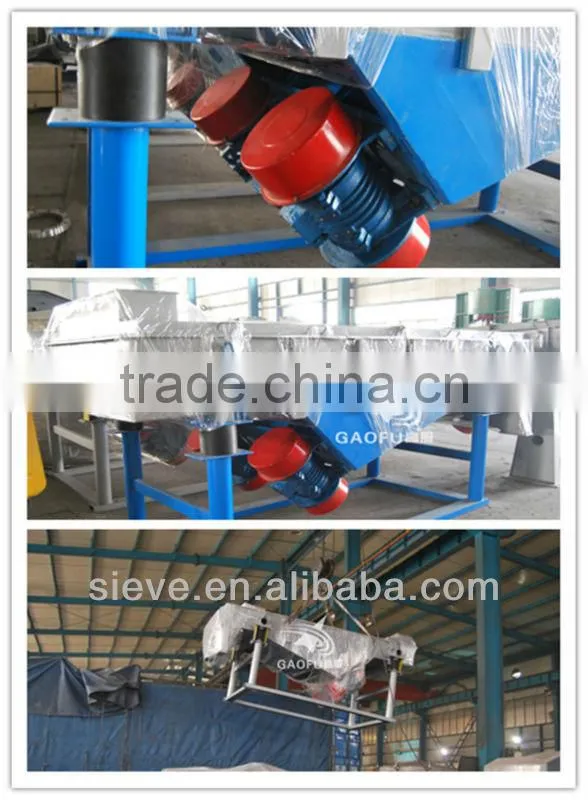

6.Detailed products and packing
7. Certificate :
8.After Sales Service :
