xinxiang gaofu stone powder linear vibrating sieve
- 20 Set / Sets per Month
- Tianjin OR Qingdao
- T/T
Product Details
| Condition: | New | Type: | Circular | Application: | Ore |
| Place of Origin: | Henan, China | Brand Name: | Gaofu | Model Number: | SZF-1025-2S-SUS304(Q235A), SZF |
| Voltage: | 220V/380V/415V | Power(W): | 2*1.1KW | Dimension(L*W*H): | 2700mm*1370mm*885mm |
| Weight: | 1t | Certification: | ISO9001:2008 | Warranty: | 12months, 12 months |
| After-sales Service Provided: | Overseas service center available |
Packaging Details
Wooden case or according to your need
Product Description
Xinxiang gaofu stone powder linear vibrating screen
Technical parameters
Model | Size(mm) | Leanangle(°) | Layers | Power(KW) |
SZF-520 | 500*2000 |
0-7 |
1-6 | 2*(0.4-0.75) |
SZF-525 | 500*2500 | 2*(0.4-0.75) | ||
SZF-1020 | 1000*2000 | 2*(0.4-0.75) | ||
SZF-1025 | 1000*2500 | 2*(0.4-1.1) | ||
SZF-1030 | 1000*3000 | 2*(1.1-1.5) | ||
SZF-1040 | 1000*4000 | 2*(1.1-1.5) | ||
SZF-1235 | 1200*3500 | 2*(1.1-2.2) | ||
SZF-1250 | 1200*5000 | 2*(1.1-2.2) | ||
SZF-1535 | 1500*3500 | 2*(1.1-2.2) | ||
SZF-1560 | 1500*6000 | 2*(2.2-3.7) | ||
SZF-1845 | 1800*4500 | 2*(2.2-3.7) | ||
SZF-2050 | 2000*5000 | 2*(2.2-3.7) | ||
SZF-2260 | 2200*6000 | 2*(2.2-3.7) |

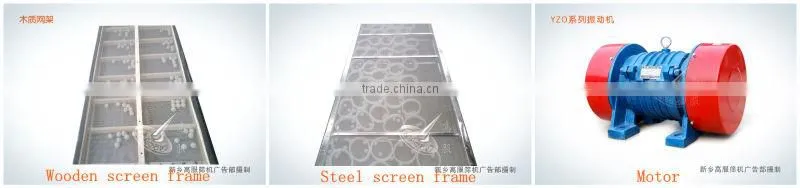

Screen frame and Motor
Company Profile
Xinxiang Gaofu Sieving Machinery Co., Ltd. specializes in manufacturing vibration screens and vibrating sieves. To solve sieving problems in all fields, we can manufacture all kinds of vibrating screens to meet the different needs of customers.
Thanks to production equipment, strong technical capabilities, improved detection means and strict managing system, we have enjoyed good reputation.
our company has attained ISO9001:2000 certification and CE Certification. Our products sell well throughout China and are exported to North America, West Europe, Southeast Asia and other countries and regions.
Do you want to improve your product quality? Do you want your products to become more competitive? Choosing Xinxiang Gaofu Sieving Machine Co., Ltd.! We will be your friend in the way to success! And you will create a shiny future in 2014!
Please visit our website: www.gaoful.com.
Our tenet: "Honest Service, the Highest Quality".To solve sieving problems in all fields, we can manufacture all kinds of vibrating screens to meet the different needs of customers.
