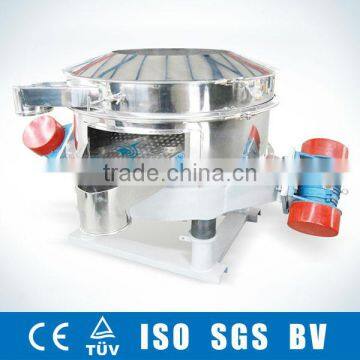

Large Capacity Shaker Sieving Machine for Powder Particle
Large Capacity shaker sieving machine
--------for powder particle
When your product including impurity, and the impurity content is not more than 10%, it will best suitable for SZS Series sorting machine.
Special structure design :
Sorting machine use two unbalanced-weight gyratory motors mounted on opposing exterior sidewalls of the unit (instead of one motor positioned beneath the screening chamber), reducing minimum height requirements significantly.
How many apertures is it suitable ??
This innovation also enables the bottom outlet to be located directly below the top inlet, allowing material to fall vertically through the screen at high rates. Available from 600mm.800mm.1000mm and 1200mm in diameter.
The shaker sieving machine 'customer :
Features of vibrating sieve machine:
(1). Compact, light weight, mobility,
(2). Low noise and pollution,
(3). Less energy consumption and easy installation.
(4). The machine outlet can be connected to any direction. Sieved material can be discharged straight away, suitable for automated operation.
(5). No blockage on screen, high efficiency, applicable for 400 mesh or finer.
Introduction
.
Daily maintenance:
1. before running
(1) To check coarse mesh and fine mesh if there is damage
(2) Each group clamps is locking.
2. Running
(1) Notice any abnormal noises
(2) Electric current is stable
(3) Whether the vibration is abnormal.
3. after running
(1) After used clean up the vibration every time
(2) To inspect regularly the coarse mesh, fine mesh and the spring if there are fatigue and damage
(3) Whether each part of the vibrating body caused damage due to vibration.
(4) Need to add the site to be the lubricating oil
Technical parameters
Model |
Power (kw) |
Motor speed (r/min) |
Sieve diameter (mm) |
Dimension(mm) |
Wight(kg) |
SZS-600 |
0.18 |
1450 |
580 |
1000*600*550 |
200 |
SZS-800 |
0.25 |
1450 |
780 |
1100*800*600 |
250 |
SZS -1000 |
0.55 |
1450 |
960 |
1280*1000*700 |
330 |
SZS -1200 |
0.75 |
1450 |
1160 |
1550*1200*750 |
400 |
DZ-1500 |
1.5 |
1450 |
1460 |
1850*1500*900 |
750 |
Note:
1. Material: SUS 304 / Q235A / 316 L.
2. Voltage: 380V /400V.
3. Voltage: 380V /400V, Frequency:50 / 60 HZ.
4. If the specification or appearance has changed, we will not notify additionally.
Our Company:
Our company has more than 30 years experience in machinery manufacturing industry , so We can provide you professional free technical service.
We ever exported this machine to America , Australia , Canda , Chile , Trinidad , and Tobago , Peru , Ghana and so on .And the perfect quality of the machine acquire many my customers` great praise .
Our company has passed the ISO9001:2008 Quality system certificate , and obtained the CE certificate.
