YDG Series Salt Milling Machine and Roller Crusher Machine for Salt Industry

YDG series salt milling machine and roller crusher machine for salt industry

                                                                                 ----Apply to salt industry and crushing

 If your product is sea salt, food salt and the table salt. Salt crusher and Vibrating screen specialist, we will be through the professional perspective and equipment, improve the quality of your products, and increase your business.

The system including the YDG Series crusher milling machine and SZF Series linear vibrating screen.

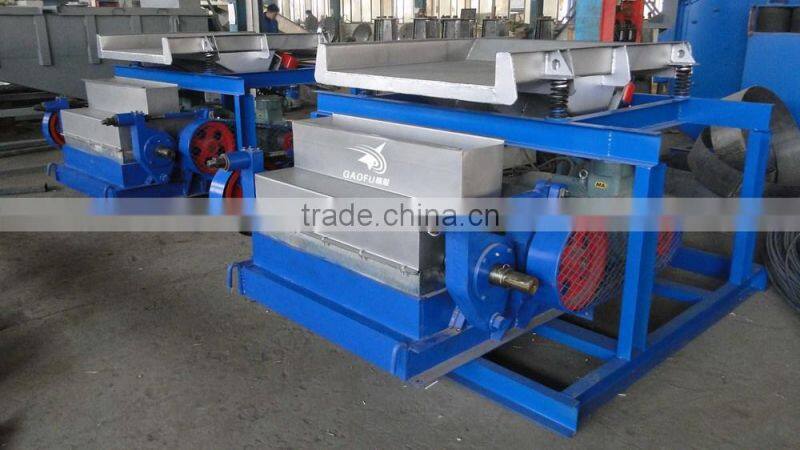

1. YDG Series crusher milling machine

    Feed size: 15mm-2mm  Output size: depend on your requirement

    Capacity: 2-15 t/h

YDG series roll milling machine has the advantages of simple structure, the compact machine body, reliable working, convenient adjustment and little fine powder generation, particularly applicable for salt crushing. The roll milling machine is provided with the flute profile, and the working principle of the roll crusher is that cutting is considered as the main method,with squeezing and pressing method as the assistant, and the crushing clearance can be adjusted and controlled at random within a certain scope.

1.Rotation speed of the main shaft: 600 - 900 revolutions per minute)

2.Power of motor (7.5, 11, 15, 18.5, 22) KW

3.Diameter of rollers: 300 MM, length: 600 MM, 800 MM and 1000 MM)

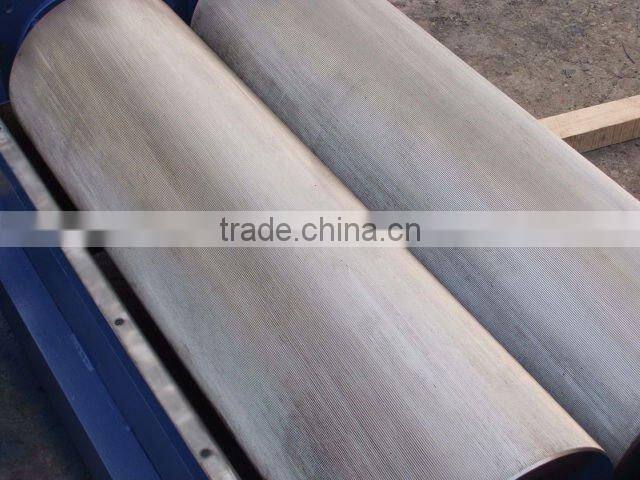

 Spare parts: Roller

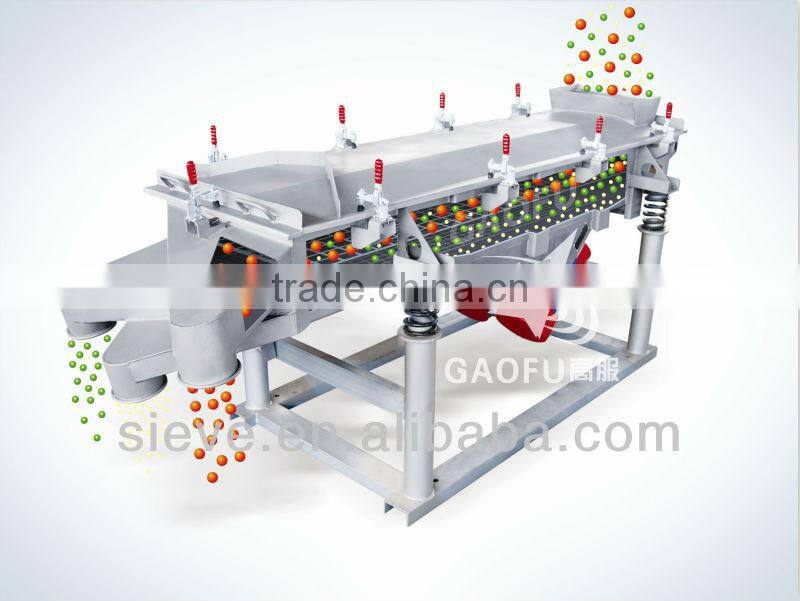

 2. SZF Series linear vibrating screen

    Screen mesh size: 1.2mm. 16mesh. 25mesh. 35mesh. 70mesh.100mesh

    Capacity: 1-10 t/h

 SZF linear vibrating screen which help you remove impurity or classify.

  SZF Series linear vibratory sieves is low consuming, high output, simple structure, easy,maintain, no powder dispersed, automobile discharged. It can be used universally for test screening or to produce between 2 and 4 screen fractions. A good screening effect is achieved by the circular vibration in the vertical plane.

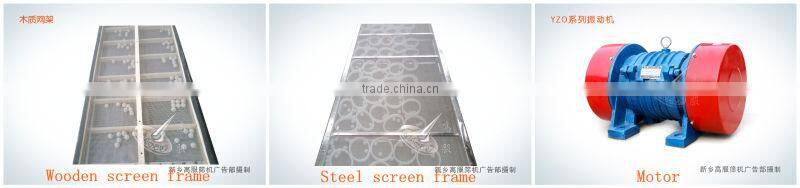

Screen frame:

We have many successful clients of producing salt. Last period, we just exported vibration screeen and mill machine to our old client - Riyadh Salt Industry Co (Saudi Arabia ) and AL-Saffy Salt Packing( Yemen) and SAUD ALQURASHI FAC. FOR SALT REFINING

Their screening requriment:
Meterial: Food salt
Capacity :10T/hour
Layer: 3 layers
Mesh:16 mesh, 25mesh,35 mesh.
Equipment materal: SUS304

SO, we hope that you can offer the key information so that we can recommend the suitable model to you, thank you.
