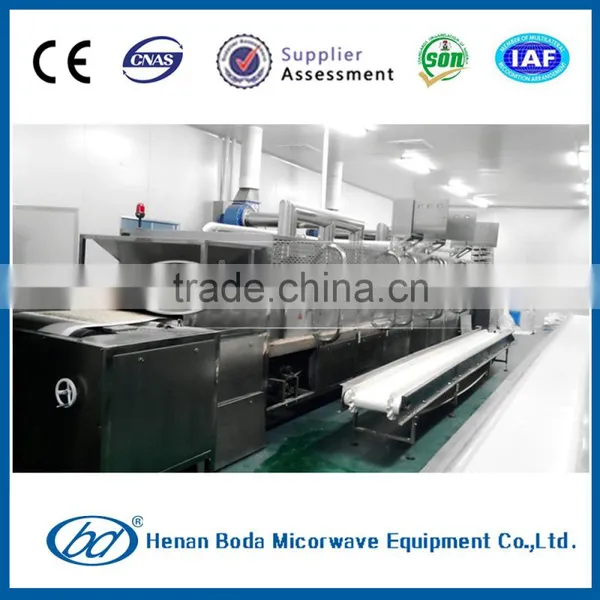

food industry snacks microwave dryer machine
Model number | BDMD- F-P-50 |
Description | BODA food industry snacks microwave dryer machine |
| Microwave frequency (MHz) | 2450±50 |
| Input voltage | 380V, 50Hz |
| Microwave power(KW) | 50(KW) |
Chamber material | Stainless steel |
| Chamber color | Silver-white |
| Conveyor belt | PP or PTFE belt |
| Dehydrator dimension(L*W*H)(mm) | 10.0x1.1x1.7 |
| Weight (KG) | 3000 |
| Microwave leakage limit(mW/cm2) | 1 mW/cm2 |
| Relative humidity(℃) | ≤85% |
| Ambient temperature(℃) | Normal temperature |
| Environment requirement | No excessive corrosive gas, no inflammable, explosive gas |
| Microwave snacks dryer machine Model | Microwave frequency (MHz) | Microwave power | Microwave leakage | Dryer dimension (m) | Installation area (m) |
| BDMD-F-P-20 | 2450±50 | 20kw | 1mW/cm2 | 7.0x1.1x1.7 | 9x3.5x2.5 |
| BDMD-F-P-30 | 2450±50 | 30kw | 1mW/cm2 | 8.0x1.1x1.7 | 10x3.5x2.5 |
| BDMD-F-P-40 | 2450±50 | 40kw | 1mW/cm2 | 9.0x1.1x1.7 | 11x3.5x2.5 |
| BDMD-F-P-50 | 2450±50 | 50kw | 1mW/cm2 | 10.0x1.1x1.7 | 12x3.5x2.5 |
| BDMD-F-P-60 | 2450±50 | 60kw | 1mW/cm2 | 11.0x1.1x1.7 | 13x3.5x2.5 |
| BDMD-F-P-70 | 2450±50 | 70kw | 1mW/cm2 | 12.0x1.1x1.7 | 14x3.5x2.5 |
| BDMD-F-P-80 | 2450±50 | 80kw | 1mW/cm2 | 13.0x1.1x1.7 | 15x3.5x2.5 |
| BDMD-F-P-100 | 2450±50 | 100kw | 1mW/cm2 | 16.0x1.1x1.7 | 18x3.5x2.5 |
| BDMD-F-P-120 | 2450±50 | 120kw | 1mW/cm2 | 18.0x1.1x1.7 | 20x3.5x2.5 |
| BDMD-F-P-150 | 2450±50 | 150kw | 1mW/cm2 | 21.0x1.1x1.7 | 23x3.5x2.5 |
| BDMD-F-P-200 | 2450±50 | 200kw | 1mW/cm2 | 27.0x1.1x1.7 | 29x3.5x2.5 |
Usage:
The microwave palm date dryer and red date dryer is used to all kinds of fruits and nuts, and it can drying and sterilizing them according to your requirements.
Advantage:
Microwave snacks drying machine has a number of quantitative and qualitative advantages over conventional drying machines so that it becomes more and more popular. One main advantage is the place where the heat is generated, namely the product itself. Because of this, the effect of small heat conductivities or heat transfer coefficients does not play such an important role. Therefore, larger pieces of foods can be heated in microwave dryer in a shorter time and with a more even temperature distribution. The another main advantages is the short drying time, low drying temperature of microwave dryer. Textured protein can be dried in about 2 minutes, which greatly preserves the nutrition and color of them.
- Energy saving 30%-60%
- Drying speed 4times quicker
- Reduced CO2 emissions
- Increased drying efficiency and yield
- Drying temperature adjustable
- Suitable for drying all kinds of food snacks
Wooden packing for each set of microwave snack foods dryer if needed.
Soft packing is supplied for microwave snack food dryer machine as well.
BODA provides a full range of services and technical support for fruits industrial snacks microwave drying systems. The services include custom installations, preventive equipment maintenance, equipment upgrades and modifications and microwave system repair.
1. What is Microwave?
Microwaves are a form of electromagnetic energy with frequencies between 300 MHz and 300 GHz, generated by magnetrons under the combined force of an electric and a magnetic field perpendicular to each other.
2. What is the advantage of Microwave food dehydrator compared to Conventional food dehydrator?
Conventional snacks dehydrator is a surface dehydration method, which is not only slow, but also non-uniform with the surfaces, edges and corners being much dehydrated than the inside of the material. The imperfect dehydration will cause product rejections, waste energy and extend process time.
Microwave snacks dehydrator is a direct method of dehydration. Energy is transferred through the material electro-magnetically, not as a thermal heat flux. Therefore, the rate of dehydration is not limited, the uniformity of heat distribution is greatly improved and dehydration time is reduced.
3. How about safety?
Using scientific structure and patented suppression system, BODA industrial microwave food dehydrator poses no threat of electromagnetic radiation to the health and safety of equipment operators.
4.What about maintenance?
In addition to downtime for cleaning and inspection, conventional dehydrators and heat exchangers need periodic servicing with an expensive inventory of parts and a highly trained labor force. For microwave food dehydrator, the only part that requires maintenance is the magnetron. In the event of a malfunction or misuse through incorrect operation, this can easily be replaced in less than thirty minutes. Generally, BODA recommends that the magnetron of industrial microwave dehydrator be replaced annually or after 8,000 hours of operation, whichever is sooner.
Contact:
