Microwave Industrial Dryer

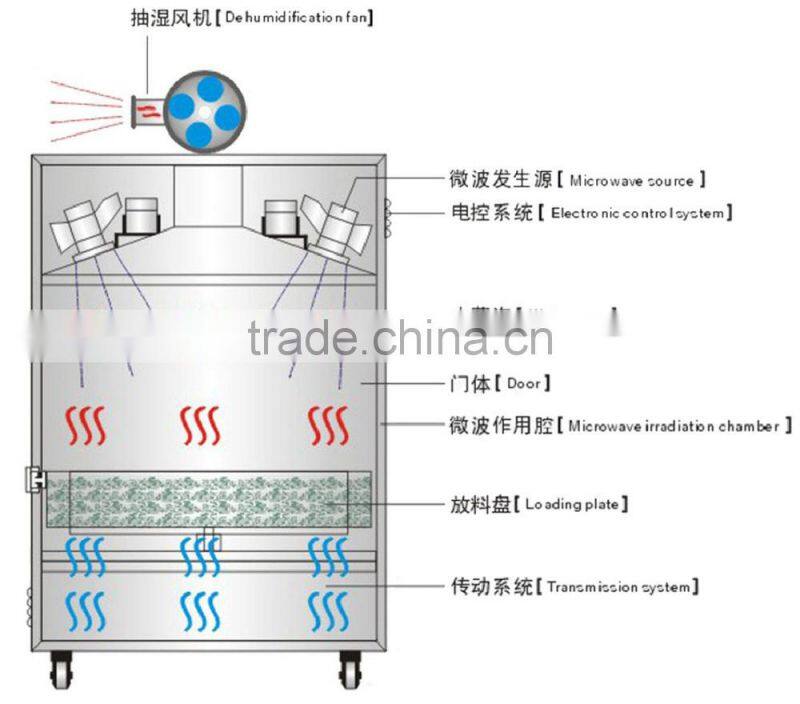

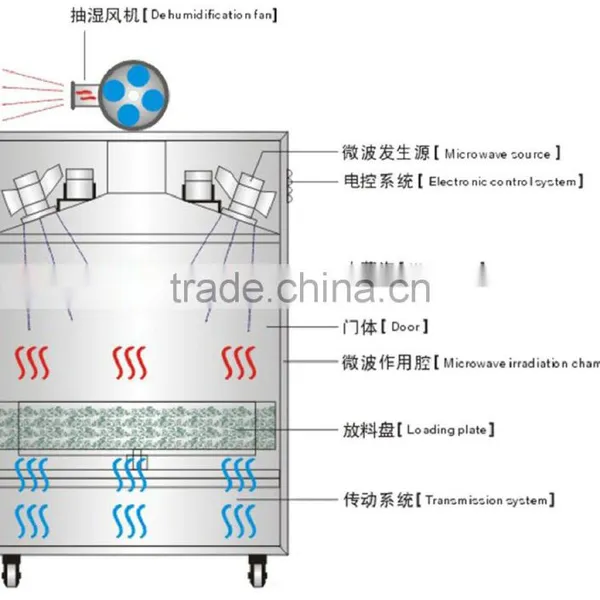

How does microwave heat and dry materials?
Microwave heat up materials using electromagnetic waves called microwaves (hence the name!). These microwaves oscillate (go up and down like a wave in the ocean 2.4 billion times every second). If you use fire to heat something, you know that it starts to get hot from the outside and it takes some time before the inside gets hot. But because microwave use the power of microwaves, they can start heat materials from the inside right away.
Model |
BDMD-M-T-6 |
BDMD-M-T-9 |
BDMD-M-T-15 |
BDMD-M-T-18 |
Microwave frequency |
2450±50 MHz |
|||
Input voltage |
3PH AC380V |
|||
Microwave power |
6Kw (Adjustable) |
9Kw(Adjustable) |
15Kw (Adjustable) |
18Kw (Adjustable) |
Input power |
≤7Kw |
≤10Kw |
≤17Kw |
≤20Kw |
Chamber color |
Silver-white |
|||
Chamber material |
Industrial stainless steel-food grade |
|||
Number of layers |
1~3 |
|||
Microwave leakage limit(mW /cm2) |
≤3 |
|||
Working temperature(℃) |
60-120 (Adjustable) |
|||
Cooling method |
Water-cooling or Air-cooling |
|||
Weight(Kg) |
550 |
600 |
850 |
1350 |
Chamber size |
1.2*1.0*1.6m |
1.4*1*1.6m |
1.9*1.5*1.8m |
2.4*2*1.8m |
Installation area |
3.0*2.0*2.5m |
3.0*2.0*2.5m |
4*2.5*2.5m |
4*3*2.5m |
Ambient temperature(℃) |
-10 ~ 40 |
|||
Remark: All technology parameters are subject to user manual, some parameters will be changed according to customer’s demand.
Food, Pharmaceutical, Cosmetic and Chemical industry for the drying of heat sensitive products or products sensitive to oxidation.
Drying of thick product with low thermal conductivity.
Low temperature drying of fruits, vegetables, meats.
