Home > Products > Hot air dryer > Cardamom Spices drying machine
Cardamom Spices drying machine
- 5 Set / Sets per Month
- China Main Port(Qingdao Tianjin Shanghai Port)
- T/T D/P D/A
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | BODA |
Model Number: | BDHD-F-10 | Type: | Dryer | Voltage: | 380V(220-330 can be offered) |
Power(W): | 30 KW | Dimension(L*W*H): | 12000X1600X4000(h) mm | Certification: | ISO.CE |
Warranty: | 12 monthes | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Cardamom Spices Drying Machine
Note:our machines shall be designed and manufactured as per your special production requirements. The below information is just for your reference,please contact us for concrete information.thanks

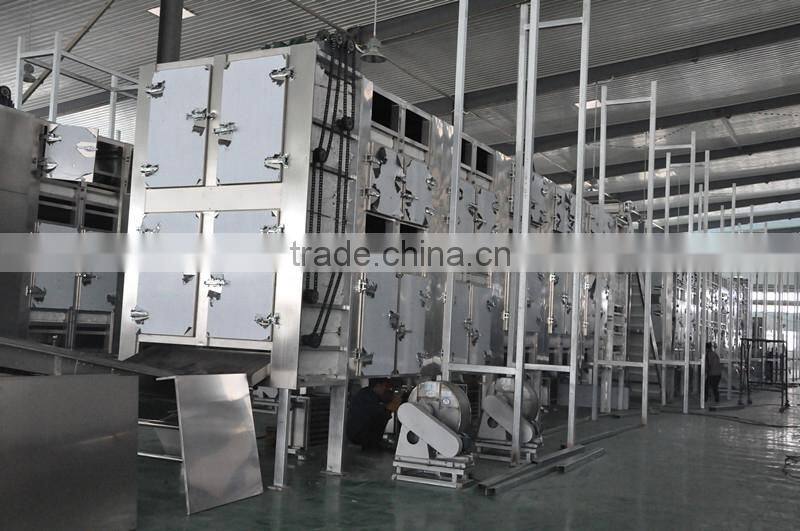

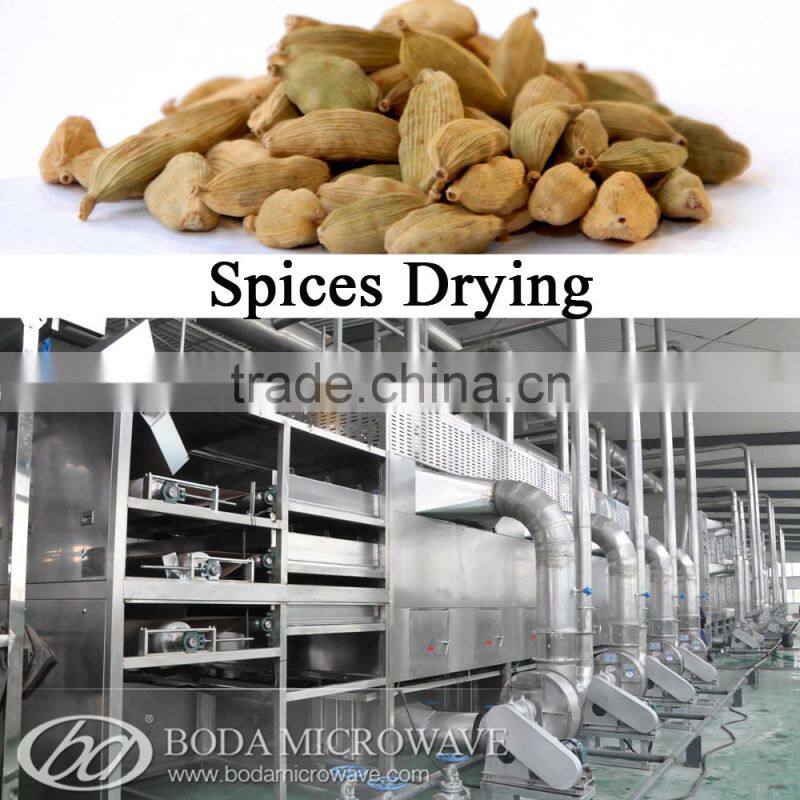

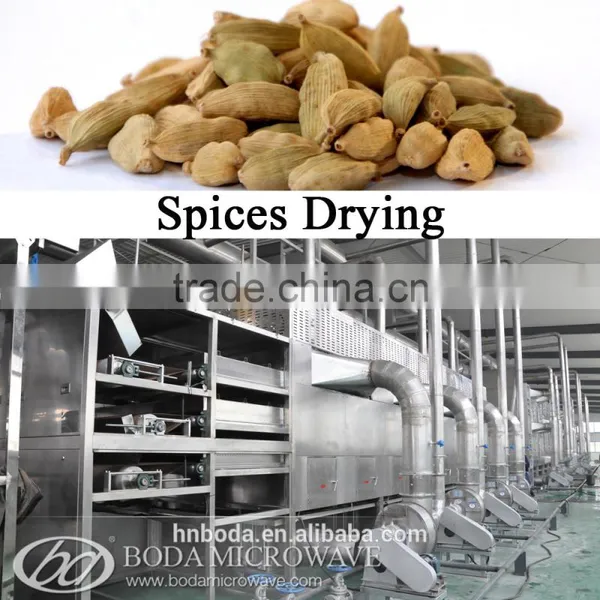

Five-Layer Mesh Belt Dryer Specification
Item | Parameter |
Item Name | BD five layer hot air dryer |
Type | BDHD-F-10 |
Overall Dimension | 12000×1600×4000(h)mm |
Drying Chamber | A independent hot air circulation unit in every two meter |
Transmission | Chain Drive |
Mesh Belt Specification | W=1600,mesh center spacing 10×16mm,Screw diameter 1.2mm,Material SUS304,;roller 12mm round steel,pitch 150mm,Material SUS304;Chain pitch 38.1mm,roller diameter 22.23mm,thickness 3mm,Material 201 |
Mesh layer | Five layer |
Motor Power | 3kw adopt stepless variable speed motor + frequency control |
Transmission Speed Range | 0.3~5m/min,(time 30~300min) |
Fan | DLF4.5C low noise centrifugal fan |
Fan Parameter | 4 sets,air volume 12500-6500m³/h,motor power 4kw,rpm 900 r/min,full pressure 830Pa |
Heating Source | Steam exchanging heat,steam pressure 0.4~0.6MPa |
Heat Exchanger | 4 sets |
Steam Consumption | 300~500kg/h |
Input Power | ≤30kw |
Drying Temperature (℃) | 0~80℃,temperature tolerances ±3℃ |
Heating Mode | Hot air circulation heating and flow through heating |
Cleaning | Spray cleaning on line |
Control System | PLC control,touch screen,automatic temperature control,transmission control,air volume control,video monitoring,fault display etc |
Feeding | Automatic distribute material,evenly distribution,thickness adjustable |
Feeding Port Size | H=4500mm,W=2500mm |
Discharging Port Size | H=600mm,W=2500mm |
Door | Stainless steel appearance |
Working Voltage | 380V 3 phase |
Relative Humidity(℃) | ≤85% |
Environment Temperature(℃) | Seasonal Temperature |
Temperature Requirement | Should be no excessive corrosive gas,no inflammable and explosive gas around |
Site requirements | Smooth and flat cement floor |
1. Are you a factory or a trader?
We are the largest and influential microwave equipments manufacturer in China, with registered capital of 26 million, setting scientific research, production, sales and service as a whole.
2. Where is your headquarters? And where is your factory?
Our headquarters is located in Building 18, No. 1, Cuizhu Street, High-tech Zone, Zhengzhou City, Henan Province, China.
The headquater is an executive office building with 9 floors.
Our factory located in the Crossing of Hongnan Road and Qingyang Street, High-tech Zone, Zhengzhou City, Henan Province, China. It takes about 20 minutes by car from our headquarters to our factory.
3. Do you have your own brand?
Our Registered brand is:BODA
Registration No: 7475478
Validity Period: 2010-10-14 ~ 2020-10-13
Approved Goods: foundry machinery, tea production equipment, dryer, ceramic production equipment, roaster, metal mixer, rotary kiln, electron industry equipment, static industry equipment, pharmaceutical processing machinery.
4. Please let me know your R&D team & capability?
R&D team consists of 65 outstanding engineers engaged in industrial microwave for years; 6 of them are professors and associate professors, 2 of them are senior professionals, who are engaged in high-end and novel products development as well as technological research and reformation. The others are technical staff, with veteran work experiences on technology transfer and application, engineering support and on-site management. With strong capability of R&D and technical transformation, we have set up a stable platform successfully on transforming its fruits from science to technology, technology to final products.
Equipped with the first-class R&D hardware facilities, our labs are operated and managed in accordance with ISO 9001 standard.
5. Which type of equipment is better for me?
Please inform us more information about your requirements, and our team will discuss together and offer the best solution to you soon.
