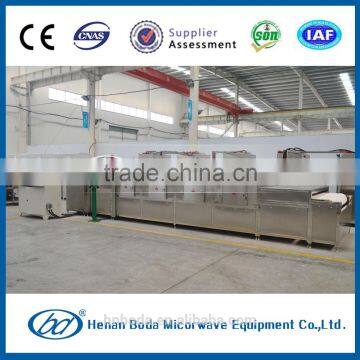

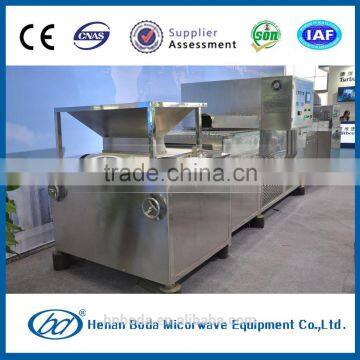

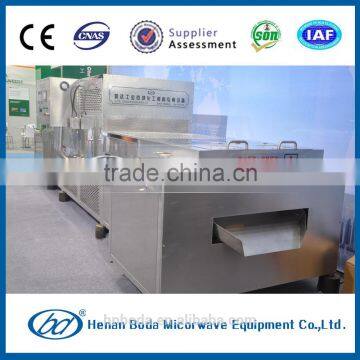

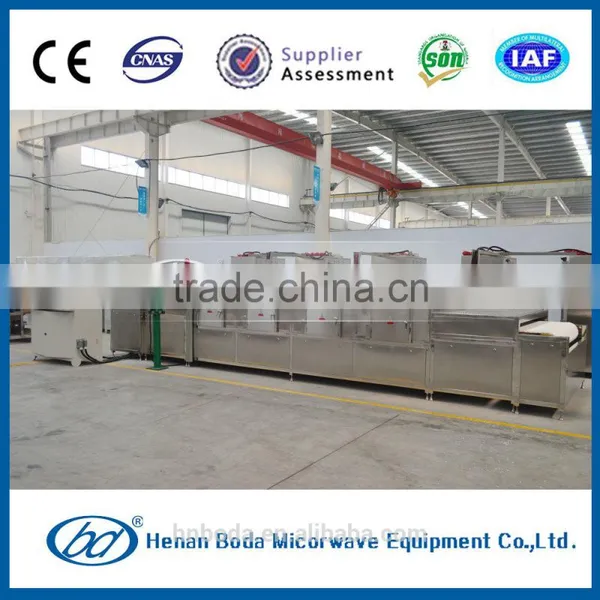

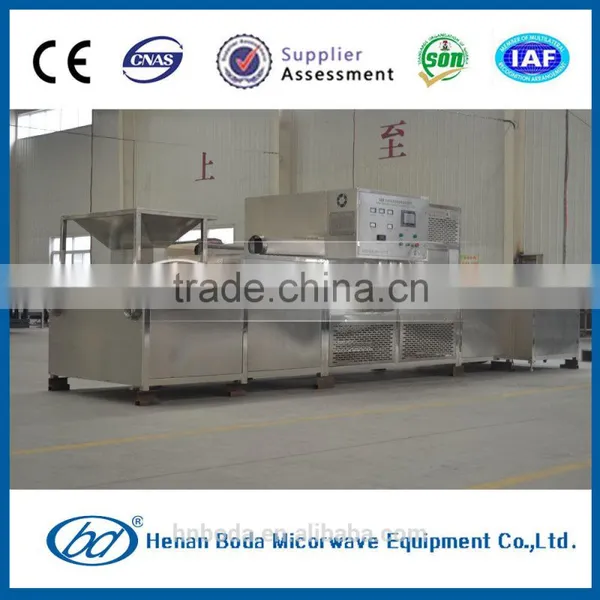

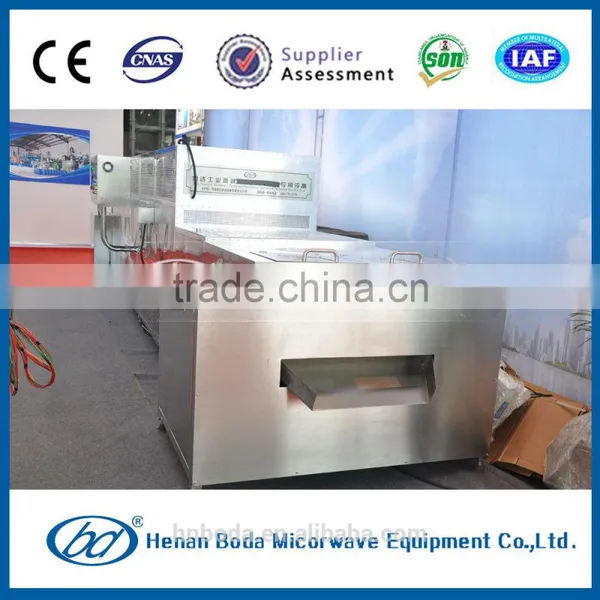

High speed microwave dried fruits dehydrated vegetables
Model number | BDMD- F-P-60 |
Description | High speed microwave dried fruits dehydrated vegetables |
| Microwave frequency (MHz) | 2450±50 |
| Input voltage | 380V, 50Hz |
| Microwave power(KW) | 60 |
Chamber material | Stainless steel |
| Chamber color | Silver-white |

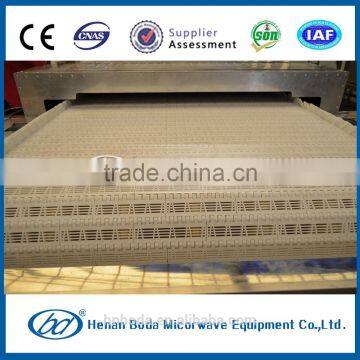

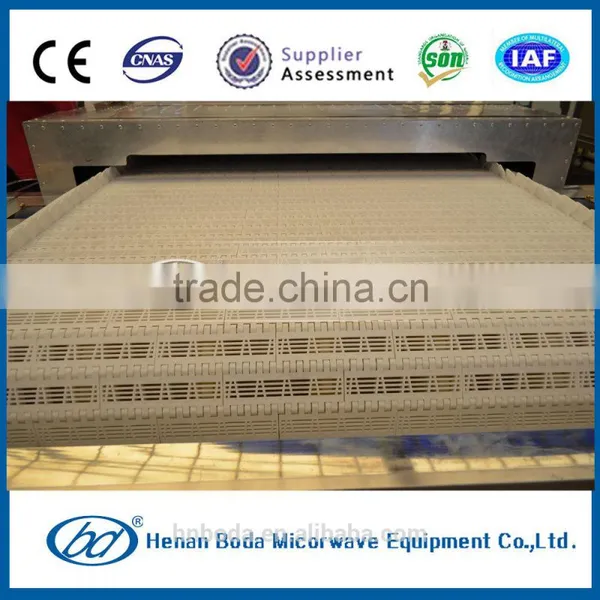

| Conveyor belt | PTFE |
| Dryer dimension(L*W*H)(mm) | 11.0x1.1x1.7 |
| Weight (KG) | 3500 |
| Microwave leakage limit(mW/cm2) | 1 mW/cm2 |
| Relative humidity(℃) | ≤85% |
| Ambient temperature(℃) | Normal temperature |
| Environment requirement | No excessive corrosive gas, no inflammable, explosive gas |
Usage:
High speed microwave dried fruits dehydrated vegetables is used for drying black pepper, white pepper, red chilli, chilli powder, turmeric, pepper, curry powder, ginger, garlic, scallion, onion, etc.
Advantage:
High speed microwave dried fruits dehydrated vegetables has a number of quantitative and qualitative advantages over conventional drying techniques that make its adoption a serious proposition. One main advantage is the place where the heat is generated, namely the product itself. Because of this, the effect of small heat conductivities or heat transfer coefficients does not play such an important role. Therefore, larger pieces can be heated in a shorter time and with a more even temperature distribution. These advantages often yield an increased production.
- Energy saving 30%-60%
- Drying speed 50% quicker
- Reduced CO2 emissions
- Increased manufacturing efficiency and throughput
- Drying temperature adjustable
- Suitable for drying spice and condiment powder, granules, and other shapes
Packing & Shipping:
Wooden packing for each set of whole chilli industrial microwave drying machine
Soft packing is supplied.
Our Services:
BODA provides a full range of services and technical support for industrial microwave systems. The services include custom installations, preventive equipment maintenance, equipment upgrades and modifications and microwave system repair.
WHY CHOOSE US?
1:The first listed company for microwave industry.
2:Equipment material: Full steel construction, durable
3:Accessory brand : SIEMENS and other High quality brand
4:Technical support for your installation, operation and maintenance.
5: Lifetime warranty
6: Fast delivery
7:Provide with CCC CE ISO certificate
8: we can customize different dimension and Specification according to the requirements of customers.
If you are interested in our machine,please contact us for more information (such as catalogue,video,prices,etc).
1. What is Microwave?
Microwaves are a form of electromagnetic energy with frequencies between 300 MHz and 300 GHz, generated by magnetrons under the combined force of an electric and a magnetic field perpendicular to each other.
2. What is the advantage of Automatic microwave rice dryer dehydrating machine compare to Conventional dryer?
Conventional dryer is a surface drying method, which is not only slow, but also non-uniform with the surfaces, edges and corners being much dried than the inside of the material. The imperfect drying will cause product rejections, waste energy and extend process time.
Microwave dryer is a direct method of drying. Energy is transferred through the material electro-magnetically, not as a thermal heat flux. Therefore, the rate of drying is not limited, the uniformity of heat distribution is greatly improved and drying time is reduced.
3. How about safety?
Using scientific structure and patented suppression system, BODA industrial microwave dryer poses no threat of electromagnetic radiation to the health and safety of equipment operators.
4.What about maintenance?
In addition to downtime for cleaning and inspection, conventional dryers and heat exchangers need periodic servicing with an expensive inventory of parts and a highly trained labor force. For microwave dryer, the only part that requires maintenance is the magnetron. In the event of a malfunction or misuse through incorrect operation, this can easily be replaced in less than thirty minutes. Generally, BODA recommends that the magnetron of industrial microwave dryer be replaced annually or after 8,000 hours of operation, whichever is sooner.
If you are interested in it,plz free to contact me.
1:let me know what kind of product do you need to dehydrate?
2, what's estimated initial moisture before drying? what's the end moisture level demand?
3, how about the drying temperature and sterilizing temperature demand?
4, what type of dryer/sterilizign machine do you prefer? batch type or continuous type(belt conveyor type)?
Hope to get your inquiry.
