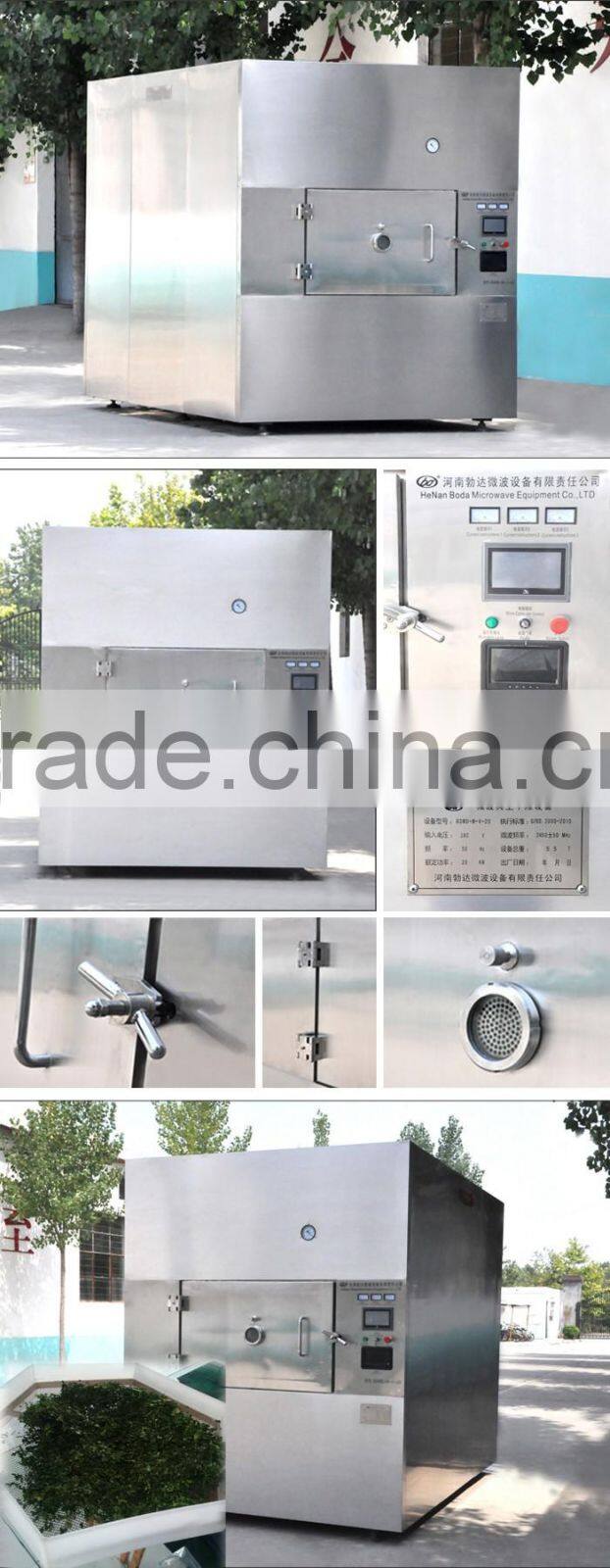

industrial food drying machine dehydrating machine microwave vacuum drying machine wide application high efficiency
| Product Name | Batch microwave vacuum drying machine industrial low temperature Microwave vacuum Fruit /Food dryer |
| Model | BDMD-M-V-20 |
| Operating Voltage | 380V±10% |
| Supply Frequency | 50Hz |
| Rated Current | 80A |
| Max Input Power | 40KW |
| Supply Power | ≥55KVA |
| Microwave Frequency | 2450±50MHz |
| Max Output Power of Microwave | 20KW |
| Dimensions (L*W*H) (mm) | 2600×2000×2000 |
| Installation Area(m) | 4500×3000×2700 |
| Inner Dimension (mm) | Φ1700×1100 |
| Material | stainless steel |
| Weight | ≈3 tons |
1,Patent core fitting manufactured by BODA, reliable and stable performance. |
2,Adopting advanced water cycled technology, easy to install, high efficiency, long service life. |
3,Adopting unique sealing technology, easy to install, non-leakage. |
4,Adopting auto-balance technology, keep the object balanced in the trays. |
5,Adopting water cycled vacuum pump, vacuum degree can be adjusted according to the objects. |
6,Adopting Non-contact infrared measuring temperature technology, measuring the object temperature all the time, ensure the accuracy of temperature control. |
7,Based on the rotary motion inside the oven, all of the objects in different trays can receive microwave energy uniformly which ensure the same drying rate of objects on the drying process. |
| 8,Adopting the positioning device for feeding&discharging, the tray always stop at the position of door, easy for operating |
9,Microwave power is adjustable,working time and drying time can be calculated automatically. |
10,Compact structure, occupy a limited area. Smooth inner wall, easy to clean, internal online cleaning device, meet the standard of GMP. |
