Summa printer cutter holder with long use lige
Blades suitable for the cutter holders
Blade for cutter plotter, which is made of tungsten carbide,with hardness, great-restiance and long lifespan.
Package: Blades are packaged with protective caps. Custom packaging and labeling are available.
Applying field: Cutter plotter, advertising equipment.
Size: 0.4x30degrees; 0.4x45degrees;0.4x60degrees and as customer's requirement.
Other type: Roland, Mimaki, Graphtec 09U with spring, Ioline, Tiker, Summa, Summa-T, Mutoh, Ana, etc.
Grade recommend: YG10X
Grades, properties and applications of the carbide blades
Grade |
Equal to ISO Category Number |
Performance |
uses |
||
Density |
Bend Strength |
Hardness |
|||
G/Cm3 |
N/mm2 |
HRA |
|||
YG3 |
K01 |
14.9-15.3 |
≥1180 |
≥90.5 |
sand-blasting nozzlesQualified for fine turning and half-fine turning when cast iron, non-ferrous metal, alloys as well as non-alloy materials cutting consecutively. Can make wire drawing of steel and non-ferrous metal. Also qualified for sand-blasting nozzles. |
YG3X |
K01 |
15.1-15.4 |
≥1300 |
≥91.5 |
|
YG6X |
K10 |
14.8-15.1 |
≥1560 |
≥91.0 |
Qualified for machining of chilled cast iron, alloy cast iron, refractory steel and alloy steel. Also Qualified for the machining of common cast iron. |
YG6A |
K10 |
14.7-15.1 |
≥1580 |
≥91.0 |
|
YG6 |
K20 |
14.7-15.1 |
≥1670 |
≥89.5 |
Qualified for finish machining and semi-finish machining for the cast iron, non-ferrous metal, alloy and unalloyed materials. Also qualified for wire drawing for the steel and non-ferrous metal, electric drill for geology use and steel drill etc. |
YG8 |
K20-K30 |
14.6-14.9 |
≥1840 |
≥89 |
Qualified for rough machining of cast iron, non-ferrous metal, nonmetal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts. |
YT15 |
P10 |
11.1-11.6 |
≥1180 |
≥91.0 |
Qualified for rough machining, semi-finish machining and finish machining during consecutive machining of carbon steel and alloy steel. |
YT14 |
P20 |
11.2-11.8 |
≥1270 |
≥90.5 |
Qualified for rough machining for rough face of carbon steel and alloy steel, half process during discontinuity cutting. |
YT5 |
P30 |
12.5-13.2 |
≥1430 |
≥89.5 |
Qualified for rough machining for rough face of carbon steel and alloy steel and discontinuity cutting. |
YW1 |
M10 |
12.7-13.5 |
≥1180 |
≥91.5 |
Qualified for finishing and semi-finishing machining of refractory steel, high manganese steel and common steel. |
YW2 |
M20 |
12.5-13.2 |
≥1350 |
≥90.5 |
Qualified for semi-finishing machining of refractory steel, high manganese steel and common steel. |
Displaying of the carbide plotter blades and cutters

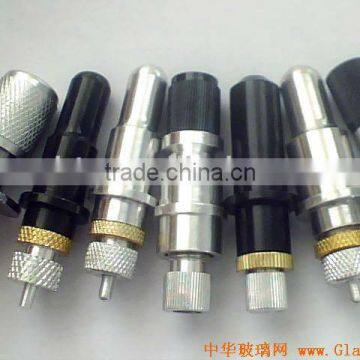

Full types of plotter printer blades to choose
Packing
