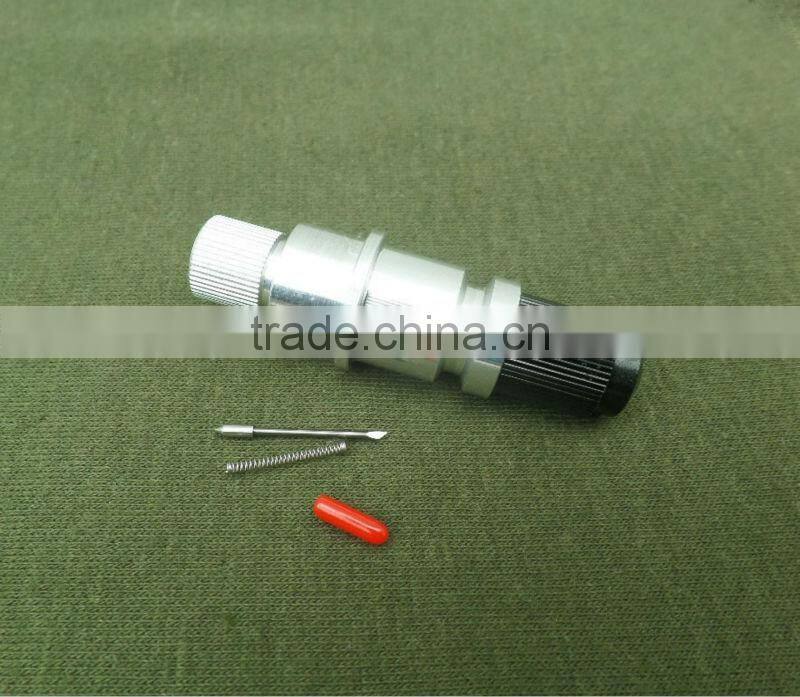

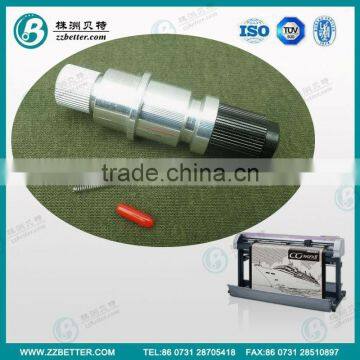

vinyl cutting blade and holder for graphtec
1.Technical data of the plotter blades in the overview:
tungsten carbide plotter blades Material: sintered tungsten carbide, special format for plotter blade use.
tungsten carbide plotter blades Application: Applied to plotter cutter machines as a replaceable part to cut material vinyl, plastic, rubber, glass, reflective film and common metal.
tungsten carbide plotter blades Standard: We offer standard blades for brands Roland, Mimaki, Graphtec, ioline, Summa, Mutoh, Annagraphtec and specially blades for Summa T, Craft Robo series plotters. Common degrees are 30°,45°,60°.
OEM service offered. Any special requirement on offset and reflective degree can be met. Any blades of brands not listed above can be customed by sample, detail drawings or detail description of specification.
2.Grade of the carbide for plotter blade
Grade | Equal to ISO Category Number | Performance |
uses | ||
Density | Bend Strength | Hardness | |||
G/Cm3 | N/mm2 | HRA | |||
YG3 | K01 | 14.9-15.3 | ≥1180 | ≥90.5 | sand-blasting nozzlesQualified for fine turning and half-fine turning when cast iron, non-ferrous metal, alloys as well as non-alloy materials cutting consecutively. Can make wire drawing of steel and non-ferrous metal. Also qualified for sand-blasting nozzles. |
YG3X | K01 | 15.1-15.4 | ≥1300 | ≥91.5 | |
YG6X | K10 | 14.8-15.1 | ≥1560 | ≥91.0 | Qualified for machining of chilled cast iron, alloy cast iron, refractory steel and alloy steel. Also Qualified for the machining of common cast iron. |
YG6A | K10 | 14.7-15.1 | ≥1580 | ≥91.0 | |
YG6 | K20 | 14.7-15.1 | ≥1670 | ≥89.5 | Qualified for finish machining and semi-finish machining for the cast iron, non-ferrous metal, alloy and unalloyed materials. Also qualified for wire drawing for the steel and non-ferrous metal, electric drill for geology use and steel drill etc. |
YG8 | K20-K30 | 14.6-14.9 | ≥1840 | ≥89 | Qualified for rough machining of cast iron, non-ferrous metal, nonmetal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts. |
YT15 | P10 | 11.1-11.6 | ≥1180 | ≥91.0 | Qualified for rough machining, semi-finish machining and finish machining during consecutive machining of carbon steel and alloy steel. |
YT14 | P20 | 11.2-11.8 | ≥1270 | ≥90.5 | Qualified for rough machining for rough face of carbon steel and alloy steel, half process during discontinuity cutting. |
YT5 | P30 | 12.5-13.2 | ≥1430 | ≥89.5 | Qualified for rough machining for rough face of carbon steel and alloy steel and discontinuity cutting. |
YW1 | M10 | 12.7-13.5 | ≥1180 | ≥91.5 | Qualified for finishing and semi-finishing machining of refractory steel, high manganese steel and common steel. |
YW2 | M20 | 12.5-13.2 | ≥1350 | ≥90.5 | Qualified for semi-finishing machining of refractory steel, high manganese steel and common steel. |
