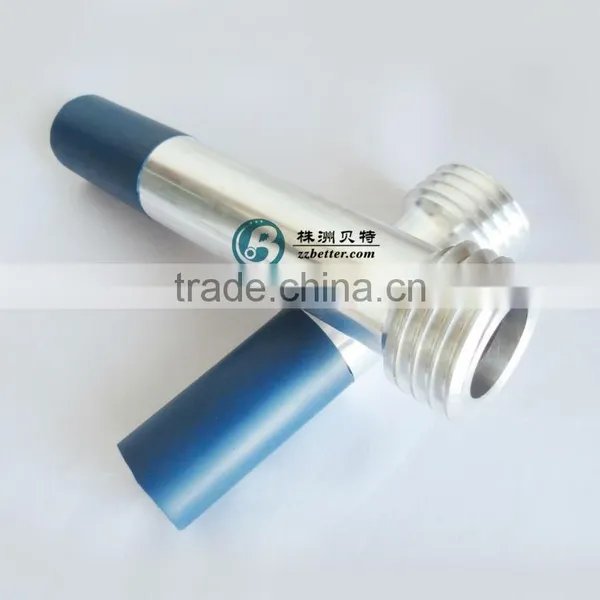

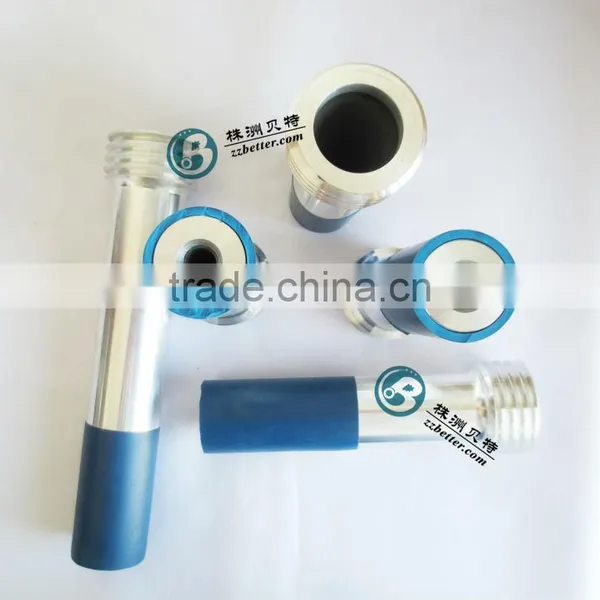

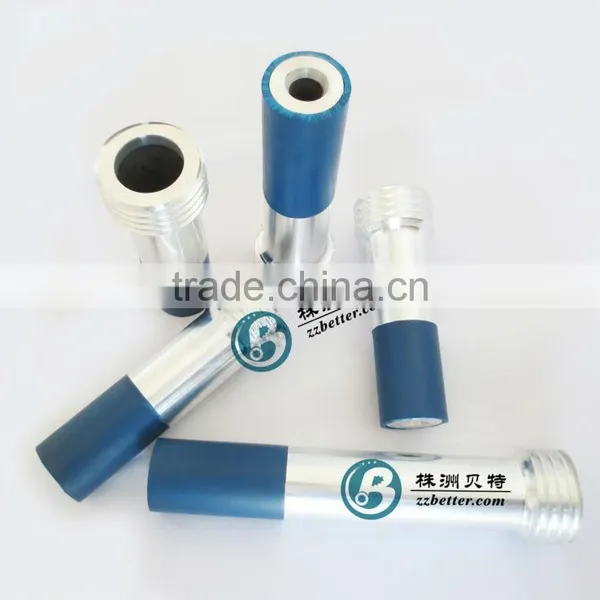

abrasive blasting B4C nozzles
1,Description of the boron carbide nozzle
Our boron carbide nozzle have follow advantage:
1)High hardness and wear resistance
(2)Heat resistance and corrosion resistance
(3)High quality, lowest price
The hardness of boron carbide is only secondary to diamond and Cubic BN
The density of the boron carbide products produced by us is close to its academic density (2.52g/cm3). Its advantages are: High hardness, high wear-resistance ability, anti-corrosion, lower cost per use, reducing down time. It's the ideal material for sandblasting nozzle and mechanical seal.
2.Estimated Service Life of Nozzles (In hours)
Nozzle Material |
Steel Grit/Shot |
Silica Sand |
Brown Aluminium Oxide |
Alumina |
20-40 |
10-30 |
1-4 |
Tungsten Carbide |
500-800 |
300-400 |
20-40 |
Silicon Carbide |
600-1000 |
400-600 |
50-100 |
Boron Carbide |
2000-2500 |
1000-1500 |
500-1000 |
The service life is THREE TIMES as silicon carbide Nozzle’s
3,Full size for selection, with case or not.
Also,we can provide according to your drawing.
- Nozzle throat diameter: 4.8 to 12.5 (mm)
- Nozzle length: 85 to 225 (mm).
-
Part Number
Bore Diameter
Exit
Length
BT-15830B
4.8mm
9mm
140mm
BT-15840B
6.4mm
10.5mm
140mm
BT-15850B
7.9mm
12mm
145mm
BT-15860B
9.5mm
14mm
170mm
BT-15870B
11.1mm
15mm
195mm
BT-15880B
12.7mm
17mm
225mm
boron carbide blast nozzle
