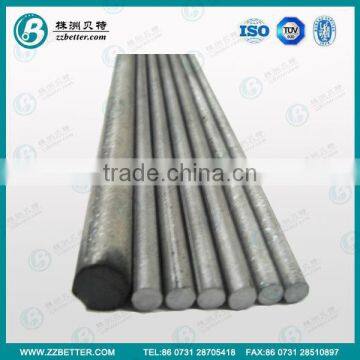

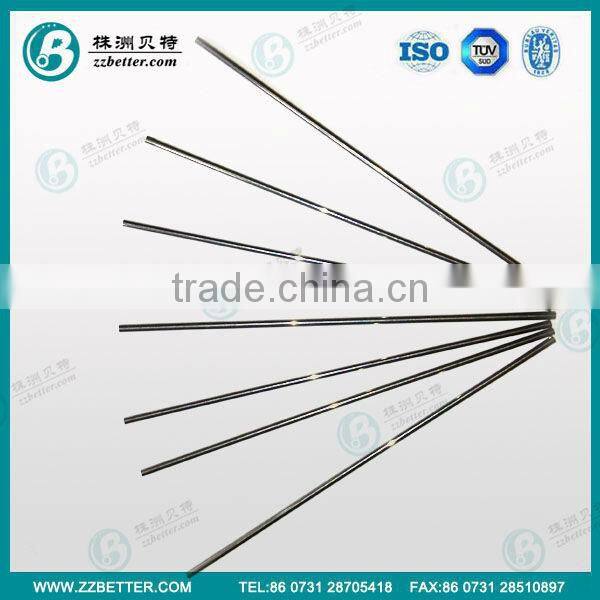

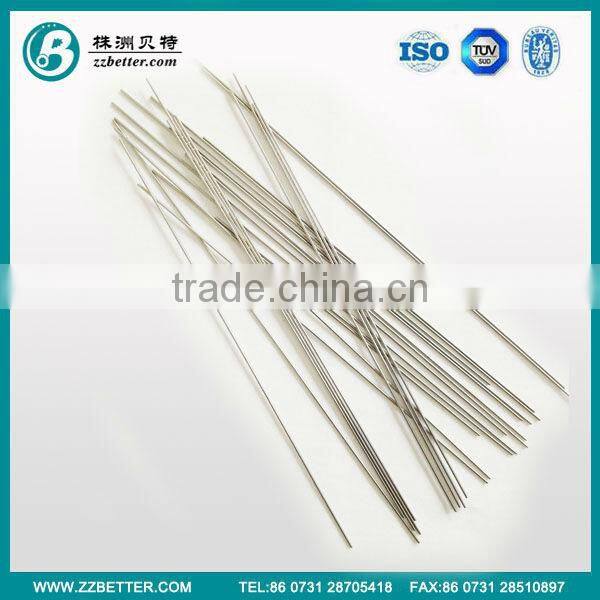

Various cermet carbide rods /ceramic carbide rods /ceramet carbide rods
Discription of the product

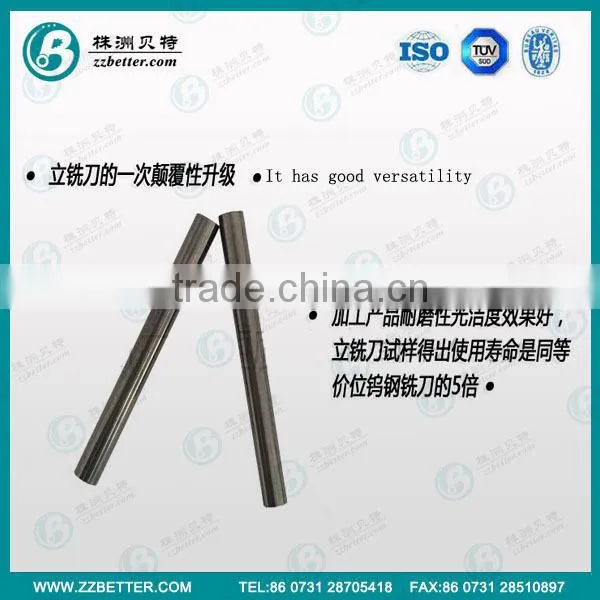

Cermet carbide rods are made of ceramic raw materials and metal.It have the advantage of both metal and ceramic,it have the same high wear resistance and high bending resistance as the metal material,also have high temperature resistance, high strength resistance,oxidation resistance as the ceramic material, The welding rods can be devided into two catogaries, one is grounded, the other one is ungrounded. we can produce different sizes of rods according to customers' special requirements or drawings.
Applications

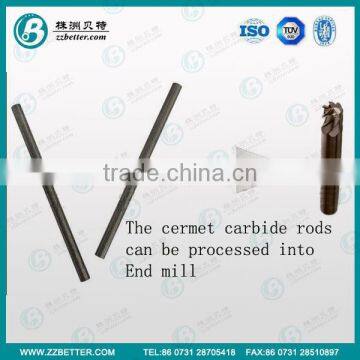

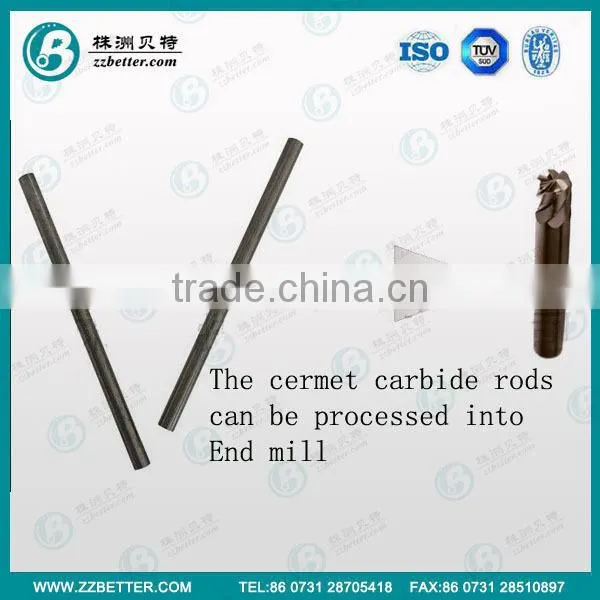

Cermet Carbide welding rods are suitable for the manufacturing of vrious kinds of solid cermet
carbide tools for the machining of heat-resistant Ti alloy, etc. It's also suitable for micro-drills used for machining PCB.
Grades
We can produce according to customer's drawings.
Specifications
Product Type |
OD |
Tolerance of OD |
ID |
Tolerance of ID |
Length |
Tolerance of L |
Sintered cermet carbide rods |
0.3-50.0mm |
+/- 0.3mm |
/ |
/ |
10-500mm |
+/- 5.0mm |
Finished cermet carbide rods |
0.3-50.0mm |
+0/-0.006mm |
/ |
/ |
10-500mm |
+0.5mm |
Cermet carbide rods for PCB tools |
/ |
+/- 0.05mm |
/ |
/ |
|
+/- 0.2mm |
Cermet carbide rods with a straight coolant hole |
2.0-50.0mm |
+/- 0.2mm |
0.3-10mm |
+/- 0.1mm |
310mm, 330mm |
+/- 5.0mm |

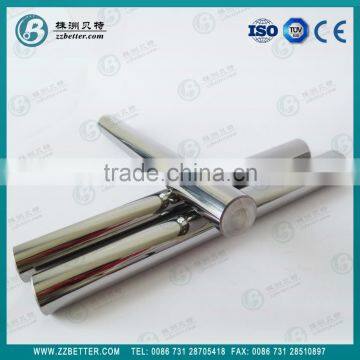

Cermet carbide rods with two straight coolant holes |
4.0-50.0mm |
+/- 0.5mm |
0.3-10.0mm |
+/- 0.1mm |
310mm, 330mm |
/ |
Cermet carbide rods with two helical holes |
5.0-50.0mm |
+/- 0.3mm |
0.5-10mm |
+/- 0.1mm |
310mm, 330mm |
/ |

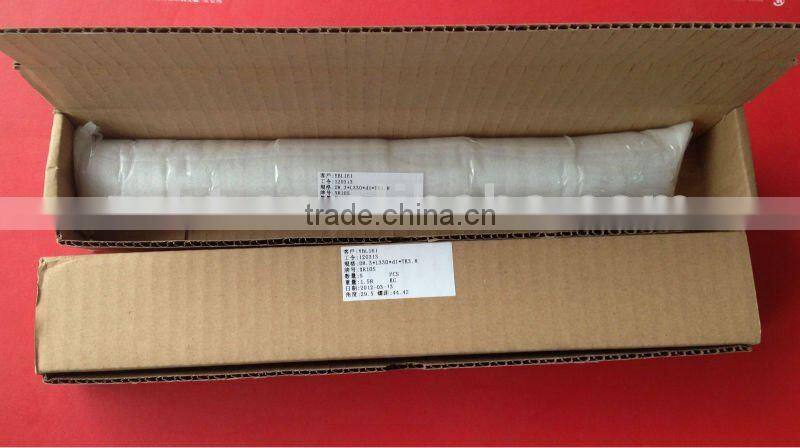

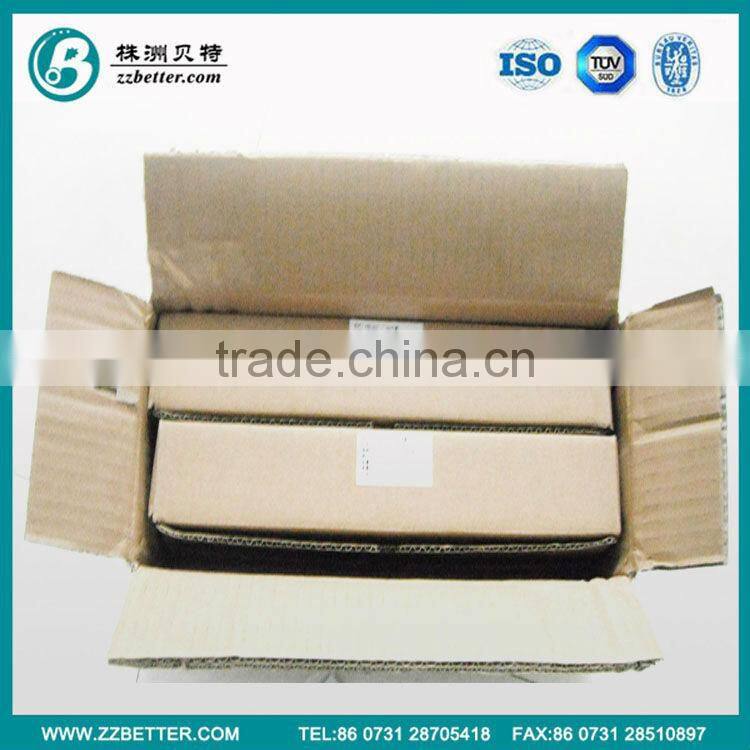

Packing
Production Equipments
Production Flow Chart

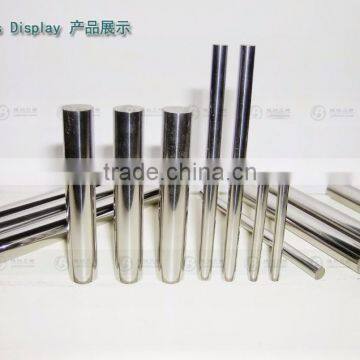

Main products
Shipping Ways
Contact Me
Cermet carbide rods/Ceramic carbide rods/Ceramet carbide rods/Ti Alloy carbide rods/titanium alloy rods
