Manufacturer supply titanium carbide cermet rods / solid tungsten carbide rods
Advantages of the round bars made of Titanium carbide
solid tungsten carbide rods
1. The carbide rods have high and stable quality
2. Tolerance and producing process is strictly controlled by QA
3. High wear resistance, high heat resistance and high corrosion resistance
4. Fast delivery
5. Reasonable price
Applications of the titanium round bar
Solid Titanium Carbide Rods are suitable for the manufacturing of vrious kinds of solid titanium carbide tools for the machining of heat-resistant alloys and Ti alloy, etc.
It's also suitable for micro-drills used for machining PCB.
Grades for round bars/carbide rods
| Grade | Density | T.R.S MPa | Hardness HRA |
| YL10.1 | 14.77-15.04 | Above 2500 | 1580 |
| YL10.2 | 14.4-14.55 | Above 4000 | 1600 |
| YL10.5 | 14.4-14.55 | Above 3800 | 1550 |
| YL50 | 13.86-14.10 | Above 2060 | 1010 |
There are more specifications of the goods provided, also can produce according to customer's drawings.
Specifications for round bards/carbide rods
Product Type |
OD |
Tolerance of OD |
ID |
Tolerance of ID |
Length |
Tolerance of L |
Sintered titanium carbide rods |
0.3-50.0mm |
+/- 0.3mm |
/ |
/ |
10-500mm |
+/- 5.0mm |
Finished titanium carbide rods |
0.3-50.0mm |
+0/-0.006mm |
/ |
/ |
10-500mm |
+0.5mm |
TItanium carbide rods for PCB tools |
/ |
+/- 0.05mm |
/ |
/ |
|
+/- 0.2mm |
TItanium carbide rods with a straight coolant hole |
2.0-50.0mm |
+/- 0.2mm |
0.3-10mm |
+/- 0.1mm |
310mm, 330mm |
+/- 5.0mm |

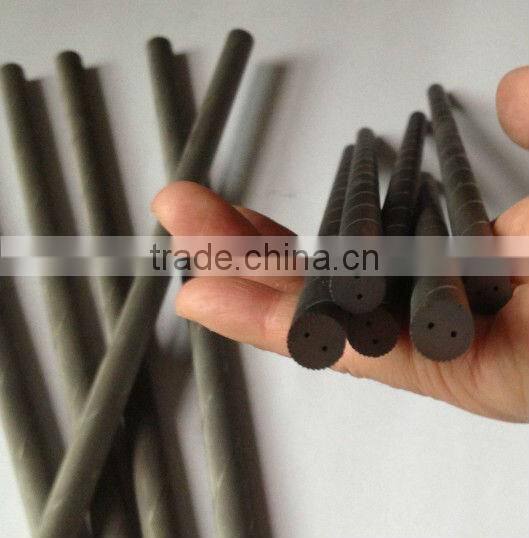

TItanium carbide rods with two straight coolant holes |
4.0-50.0mm |
+/- 0.5mm |
0.3-10.0mm |
+/- 0.1mm |
310mm, 330mm |
/ |

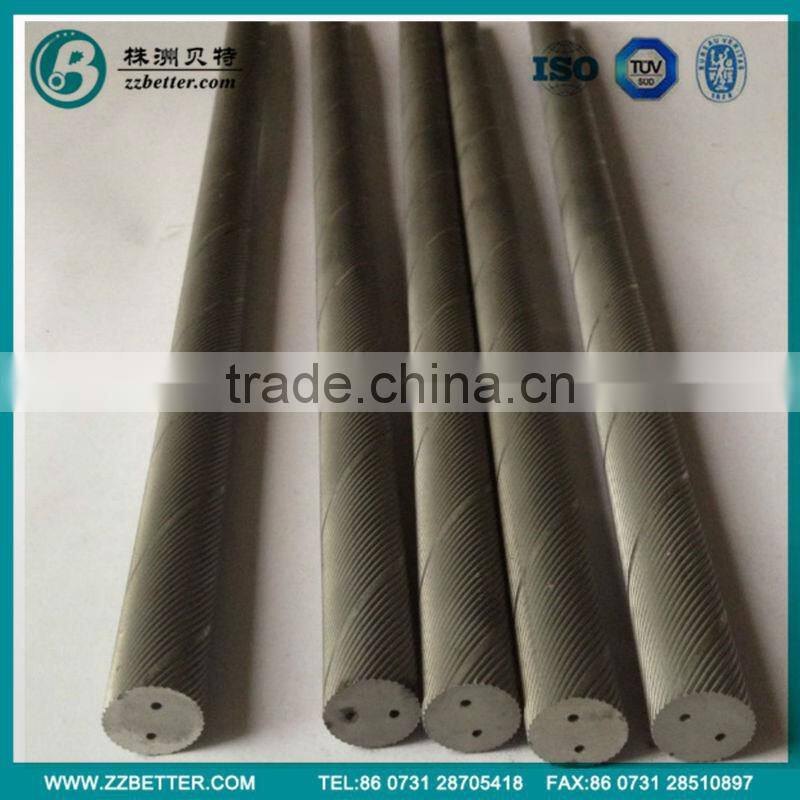

TItanium carbide rods with two helical holes |
5.0-50.0mm |
+/- 0.3mm |
0.5-10mm |
+/- 0.1mm |
310mm, 330mm |
/ |

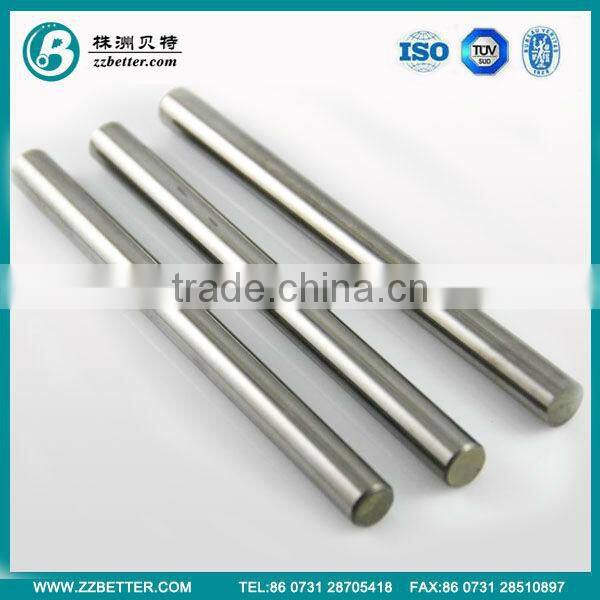

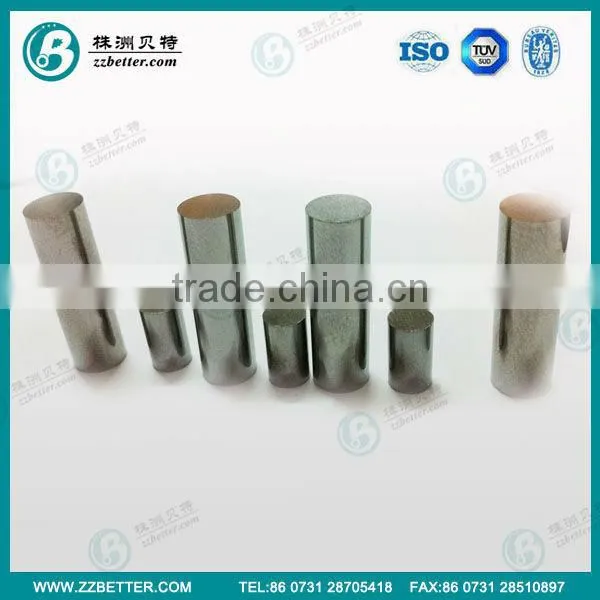

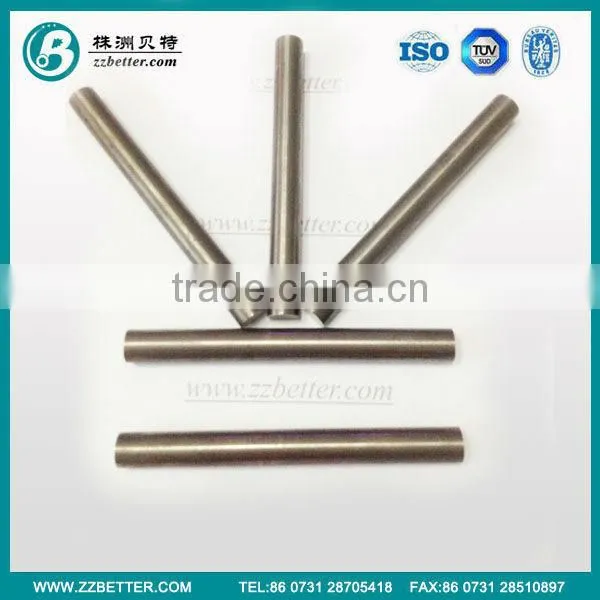

Short solid Titanium polished rods

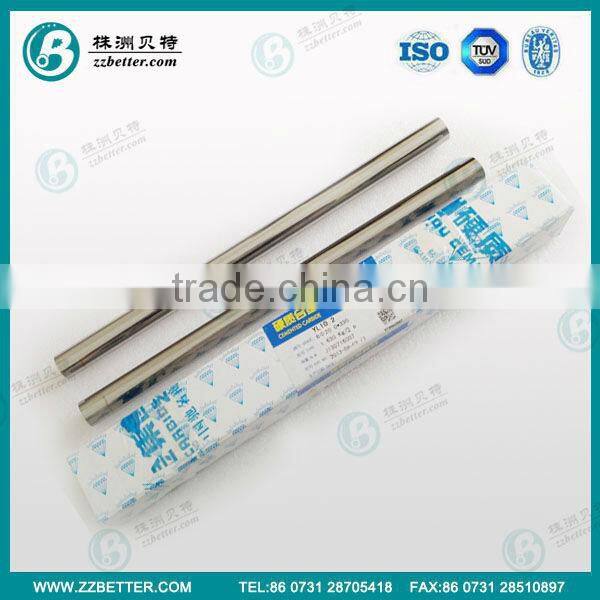

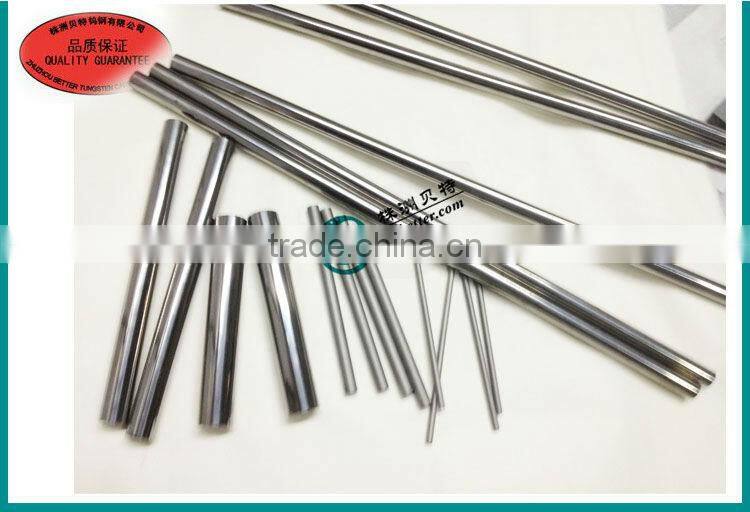

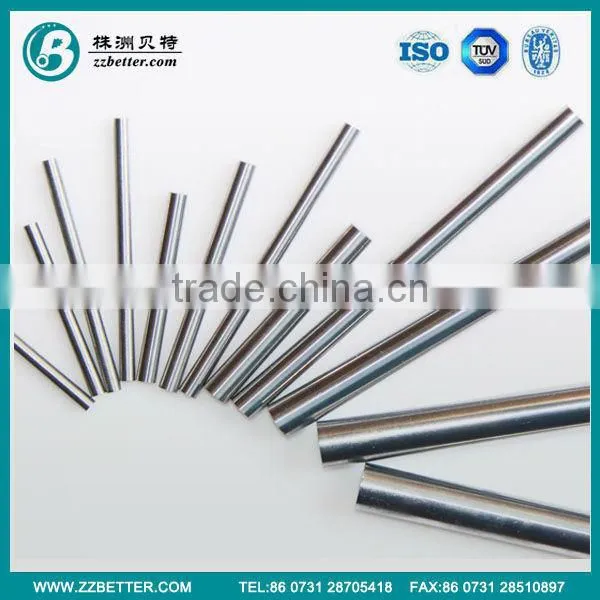

Long solid Titanium carbide polished rods:

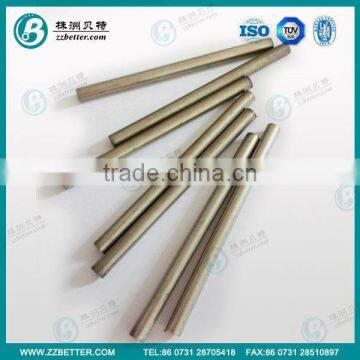

Blank carbide rods

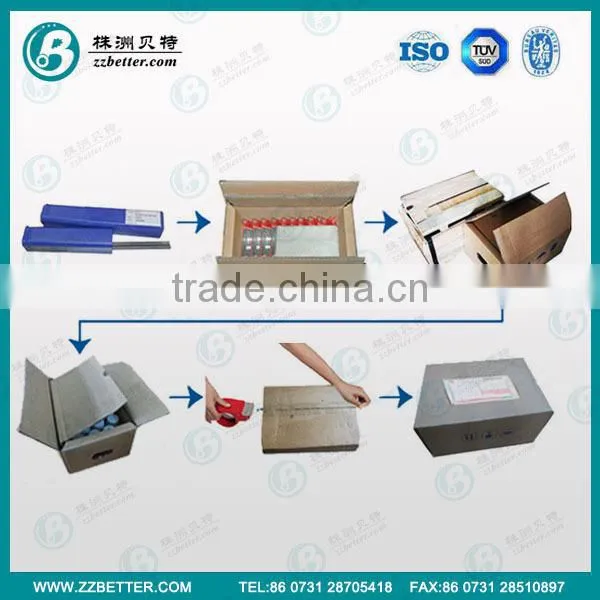

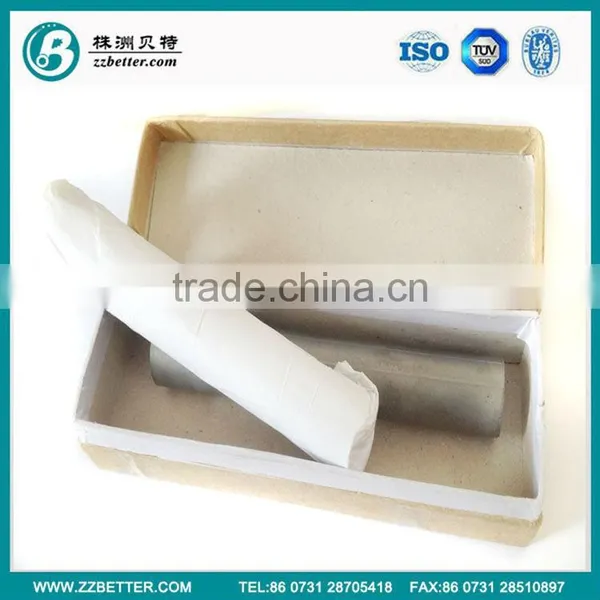

Packing
tungsten carbide RODS including
Unground /Ground RODS, with or without straight /spiral coolant HOLES
