Half-notched Dead Center

half-notched dead center

Availablity of dead center

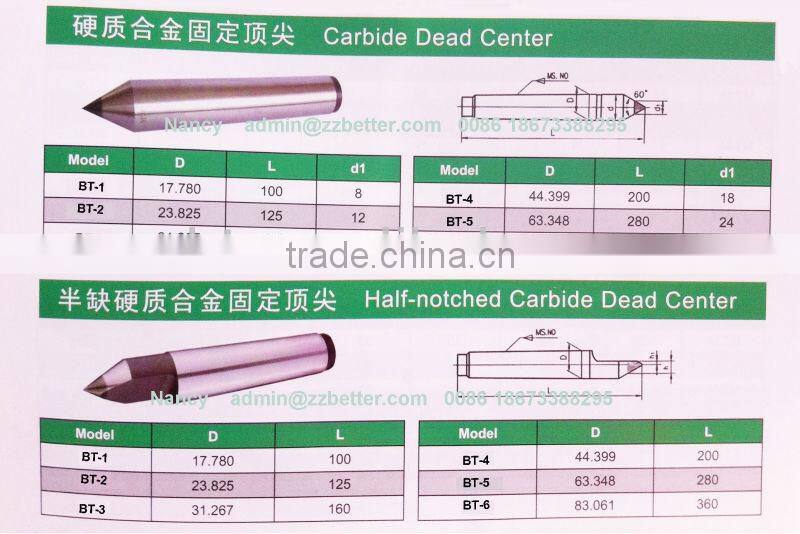

1. Standard dead centers are readily available from stock in Morse, Jarno and Brown & Sharpe Tapers.

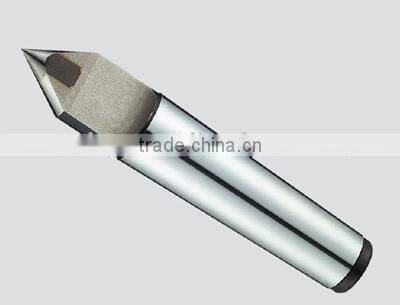

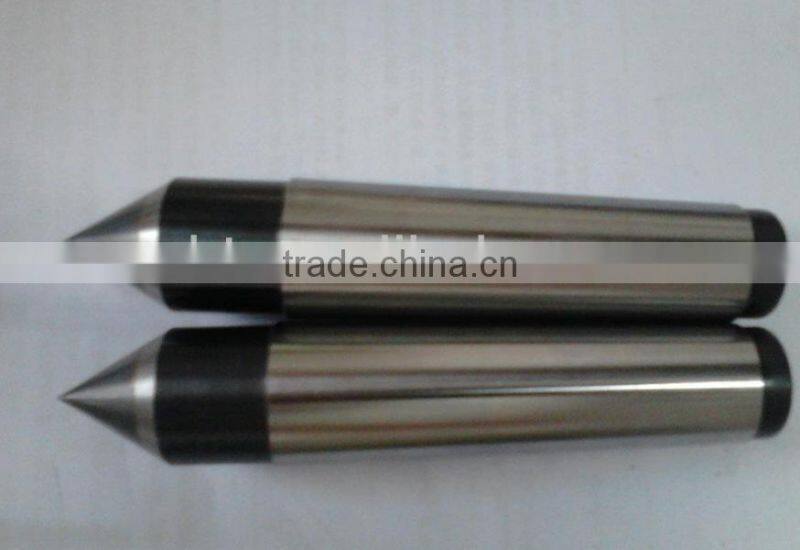

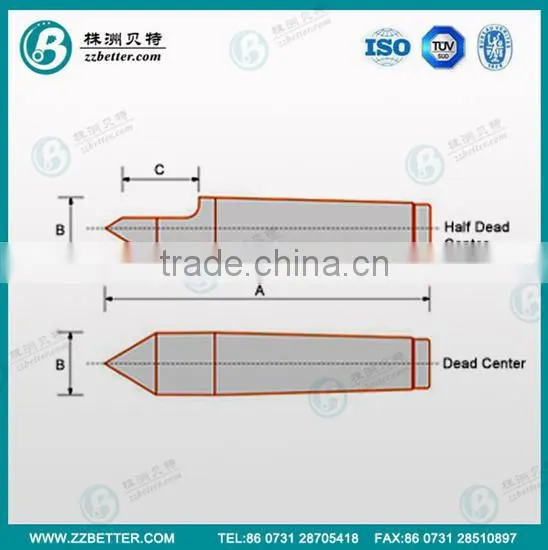

2. Point styles include full and half dead centers in both steel and carbide tip configurations.

3. Style 1 dead centers are steel full centers, Style 2 dead centers are steel half centers, Style 3 centers are carbide tipped full centers and Style 4 dead centers are carbide tipped half centers.

4. When ordering specify the base model number and the style number to create the full five digit part number. For example a 7104, Style 3 dead center is a 4 Morse taper carbide tipped full center whose complete part number is 71043.

Technical Specifications -  carbide dead center

Carbide dead center bodies are also manufactured from 52100 ball bearing steel. Since the carbide tip is the wear surface in carbide tipped dead centers, only the knock out end of the body is hardened. Carbide tips are grade C2 or equivalent with the hardness and wear resistance required for high production turning and grinding applications. Concentricity is guaranteed to .0002 inches TIR.
