Help CenterSintered Carbide Roller
Negotiable
MOQ: 1 Kilogram (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
ZZBT
Model Number:
sintered carbide roller
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wearable Cemented Carbide RollerUS$ 10 - 50MOQ: 1 Piece -
Full Size of Tungsten Carbide Sealing RingUS$ 3.5 - 3.5MOQ: 1 Piece
-
Cemented Carbide Sealing RingUS$ 3.5 - 3.5MOQ: 1 Piece
-
Rolled Rings, Bearing RingsUS$ 10 - 100MOQ: 10 Pieces
-
High Quality Rolled Ring ForgingUS$ 10 - 100MOQ: 10 Pieces
Place of Origin
Hunan, China
Brand Name
ZZBT
Model Number
sintered carbide roller
Type
Power Tool Parts
Specifications
sintered carbide roller1.100% raw material
2.trial order acceptable
3.finished and blanks available
fessional sugges

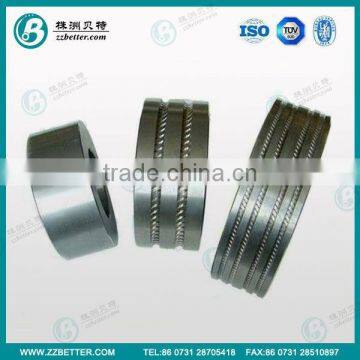

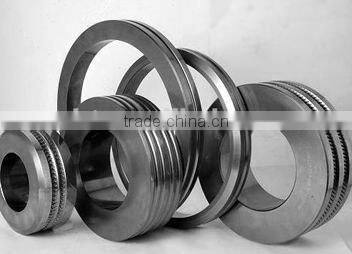

sintered carbide roller

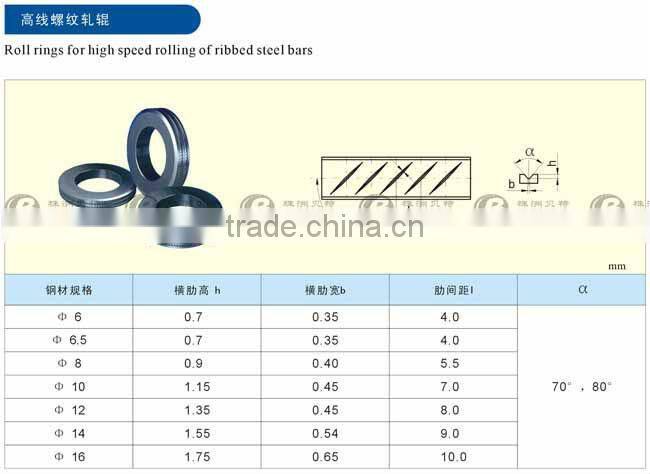

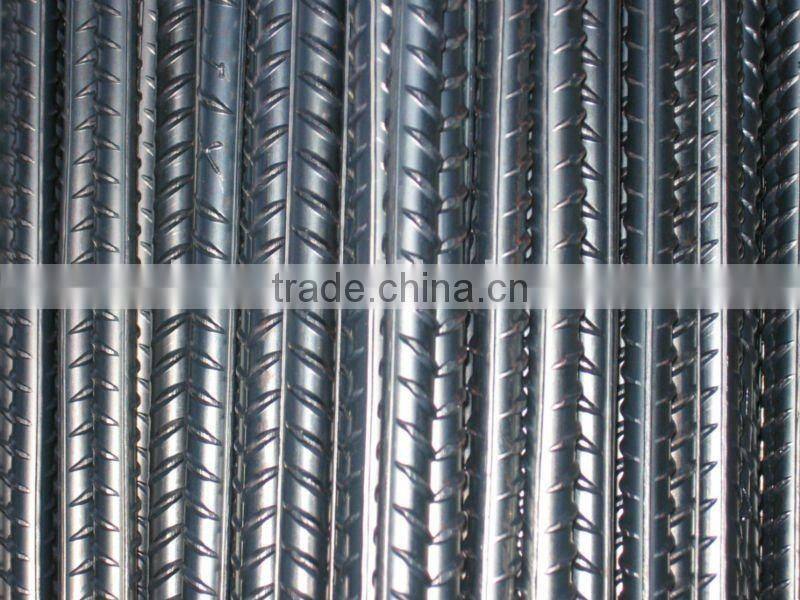

| ROLLERS FOR COLD ROLLING RIBBED BARS | |||||
| GRADE AND SPECIFICATION OF ROLLERS | |||||
| GRADE | MECHANICAL PROPERTIES | ||||
| DENSITY G/CM3 | HARDNESS | TRS | |||
| YGH30 | 14.02 | 84.9 | 2700 | ||
| YG15 | 14.28 | 86.8 | 2500 | ||
|
|
|||||

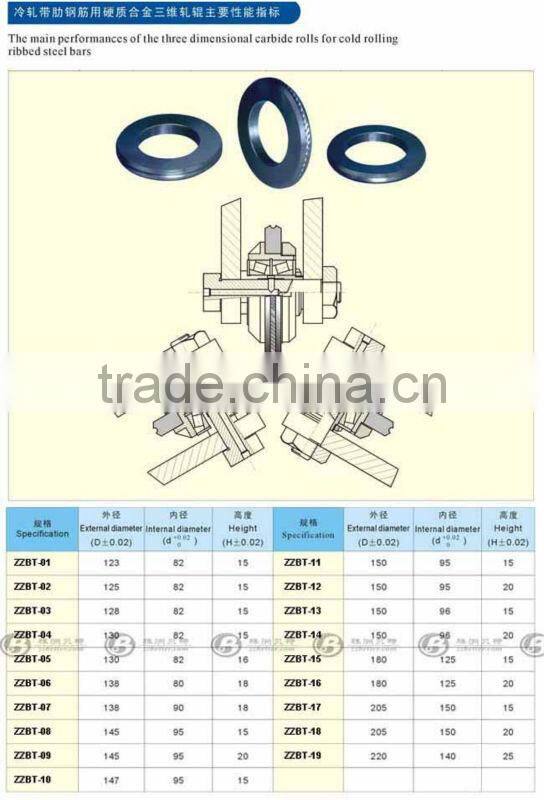

| STANDARD TUNGSTEN CARBIDE ROLL DIMENSION | |||||
| WIRE RANGEΦ | (OD)ΦMM | (ID)ΦMM | (T)MM | ||
| 4-8.5 | 125 | 82 | 15 | ||
| 9~12 | 125 | 82 | 20 | ||
| 4-8.5 | 140 | 90 | 15 | ||
| 9~12 | 140 | 90 | 20 | ||
| 4-8.5 | 150 | 90 | 15 | ||
| 9~12 | 150 | 90 | 20 | ||
| Other types of rollers may be offered according to customers' requirement. | |||||
| Application requirements of dimensional | |||||
| 1. Any striking on and collision with roll rings is strictly prohibited. | |||||
| 2. When installing the whole assembly of roll rings, the clearance of the bearings in relation to the casings should be on | |||||
| the tighter side . | |||||
| 3. The precision of rotation of the whole assembly ( circular runout and end runout ) should be kept within ±0.05mm. | |||||
| 4. The fitting -in of the whole assembly and the roll rings shall be a transitional fitting -in and fastened. | |||||
| 5. The roll rings should not be cooled by water or oil water emulsion. | |||||
| 6. The joints of the pipes in the internal cooling system should not be leaky and it is advisable that no cooling is applied. | |||||

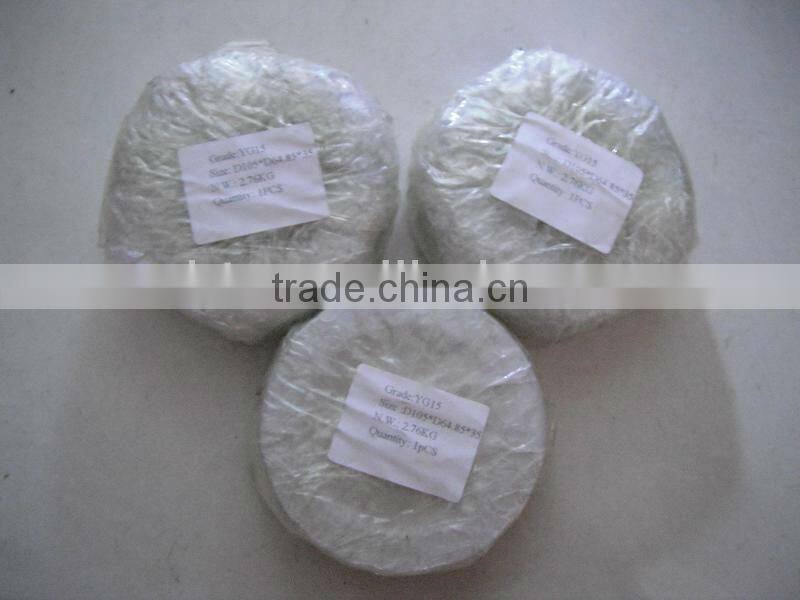

Carton case or wooden case and inner plastic bag. Also we can pack as customer's requirement.
