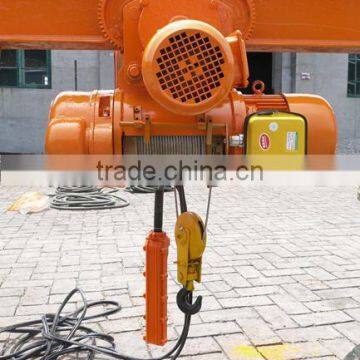

Electric HoistCD1MD11..Wire rope electric hoist
2.CD & MD model,single and double speed
3.Fixed and mobile type
Electric Hoist, CD,MD,Metallurgy,Chain,etc
1.CD/MD electric wire rope crane hoists is light and small crane machinery, which can be fixed on single or double girder, bridge crane, portal crane and hanger crane. It is often used in factories, mines, docks, ports, storage houses, workshops etc., which is the necessary machinery to raise labor productivity and improve working conditions.
2.MD1 Model wire-rope electric hoists can be widely used in hoist heavy objects or installed on the straight or curve I-steel beam of Single-girder Cranes. They can also be used together with Electric Hoist Double-beam, gantry crane and slewing cranes. All the above has made the electric hoists common in industrial and ore enterprises, railway, wharfs and warehouses.
3.Difference: The lifting speed of CD1 type is general speed, it can satisfy the requirements of general use; the lifting speed of MD1 type has two lifting speed: general speed and slow speed. When worked in slow speed, it can satisfy the requirement of precision loading and unloading, examine and repair machine tool etc precision work. Therefore, the useful scope of MD1 is wider than CD1 type
Main Specification
| Model | CD1, MD1 | ||||||||
| Capacity | Tons | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 | |
| Hoisting height | M | 6,9,12 | 6,9,12,18,24,30 |
9,12,18,24,30 | |||||
| Hoisting speed | M/MIN | 8(0.8/8) | 8(0.8/8) | 7(0.7/7) | 3.5(0.35/3.5) | ||||
| Travel speed | M/MIN | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 18 | |
| Wirerope | Dia.(mm) | 4.8 | 7.4 | 11 | 13 | 15 | 15 | 17.5 | |
| Spec. | 6x37+FC | 6x37+FC | 6x37+FC | 6x37+FC | |||||
| Hoisting motor | Type | ZD121-4 | ZD122-4 | ZD131-4 | ZD132-4 | ZD141-4 | ZD151-4 | ZD151-4 | |
| ZDS1 0.2/0.8 | ZDS1 0.2/1.5 | ZDS1 0.4/3.0 | ZDS1 0.4/4.5 | ZDS1 0.8/7.5 | ZDS1 1.5/13 | ZDS1 1.5/13 | |||
| Power(kW) | 0.8(0.2/0.8) | 1.5(0.2/1.5) | 3.0(0.4/3.0) | 4.5(0.4/4.5) | 7.5(0.8/7.5) | 13(1.5/13) | 13(1.5/13) | ||
| Rotation speed(r/min) | 1380 | 1380 | 1380 | 1380 | 1400 | 1400 | 1400 | ||
| (A) | 2.2(0.72/2.4) | 4.3(0.72/4.3) | 7.6(1.25/7.6) | 11(2.4/11) | 18(2.4/18) | 30(5.2/30) | 30(5.2/30) | ||
| Travel motor | Type | ZDY111-4 | ZDY111-4 | ZDY112-4 | ZDY112-4 | ZDY121-4 | ZDY121-4 | ZDY121-4 | |
| Power(kW) | 0.2 | 0.2 | 0.4 | 0.4 | 0.8 | 0.8x2 | 0.8x2 | ||
| Rotation speed(r/min) | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | ||
| Current(A) | 0.72 | 0.72 | 1.25 | 1.25 | 2.4 | 2.4 | 2.4 | ||
| Power | AC 220V/380V/400V/415V/440V,50/60HZ,3P | ||||||||
