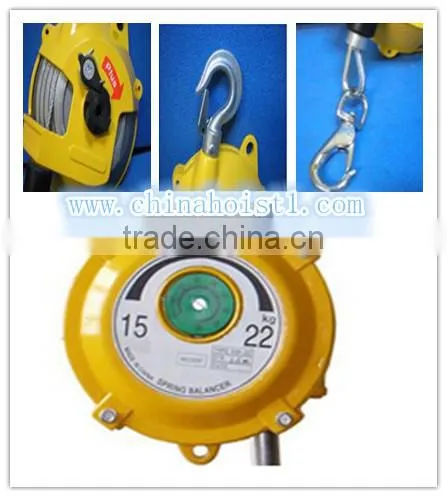

100kg spring balancer
Spring balancer is a kind of accessorial tool special for suspending electrical machine, which can balance with weight of tools, and achieve modern and civilized production. It has been widely used for welding product lines of vehicle body, rivet lines, and assembly line of engine, motorcycles and home appliances where the tools must be hung. It'll be the ideal choice to reduce the labour intensity and increase the productivity.
Featuresof 1-3kg digital spring balance
1.Suspending a tool for product assembly line.
2.Frenquent fastening screws,bolts and nuts.
3.Suspending a jig,tool, welding gun etc.
4.The balamcers improve working efficiency and diminish worker fatigue.
5.The balancers make the position of a tool stable and contribute to accurate work.
7.Any electric or pneumatic power is not required and safe working is achieved.
Parameters of 1-3kg digital spring balance
Application Notes of HW Spring Balancer
1.Size the balancer to carry the total weight to be balanced - tool plus all accessories - and stroke (maximum to minimum height) required.
2.Size to the upper end of the capacity range of the balancer when possible.
3.Always attach secondary support cable(s) to the eyelet provided for additional safety.
4.Balancers are normally hung vertically and the rope is pulled out vertically. To prevent the rope from wearing on the guide, the rope should not be pulled out at an angle to the balancer body.
5.If multiple balancers are used in close together, install them at staggered heights to keep them from hitting each other.
6.The spring tension is factory preset to the mid-range of the rated capacity. To adjust the tension turn the worm gear or spindle clockwise to increase the tension and counterclockwise to decrease the tension.
