Maximum Stroke 1.6m 22kg Spring Balance Weight Balancer
- Qingdao
- T/T Money Gram Credit Card
You May Like
-
1.5m Wire Rope 50kg Spring Weight Balancer for Heavy Tool Support
-
5kg Spring Balancer With Pvc Layer Protection
-
Spring Weight Balancers Spring Balancer With PVC Protection
-
Pneumatic Hoist| Air Balancer | Air Lifting Hoist for Ship Building/mine/harbour
-
1.5m Stainless Steel Wire Rope 50kg Spring Balance
-
1.5m Stainless Steel Cable 3kg to 5kg Spring Balancer
Product Details
| Place of Origin | Shandong, China | Brand Name | JNDO | |
| Model Number | HW | Type | Hanging Scale | |
| Power Supply | NON | Display Type | Plastic | |
| Rated Load | 9KG | Accuracy | 5-9KG |
Product Description
Specifications
maximum stroke 1.6m 22kg spring balance weight balancer1.Easy to operate
2. Stable Suspending Force
3.360 degree swivel

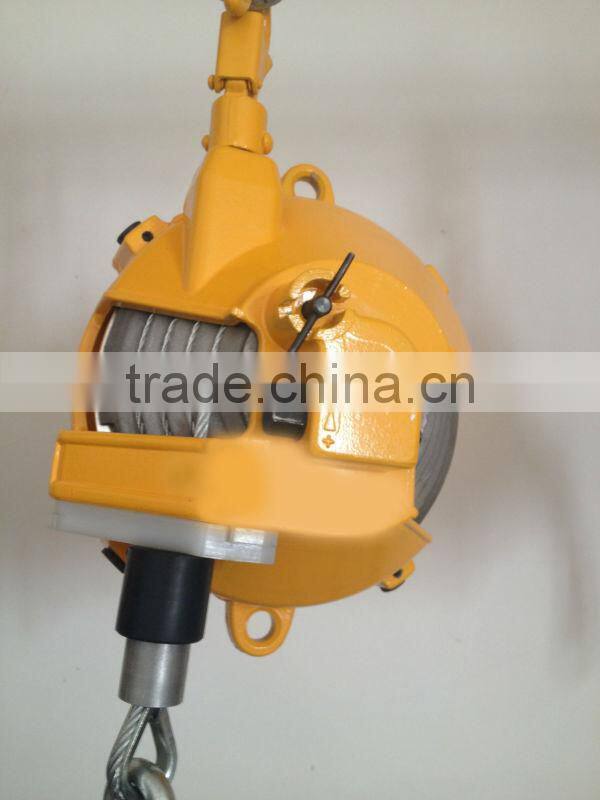

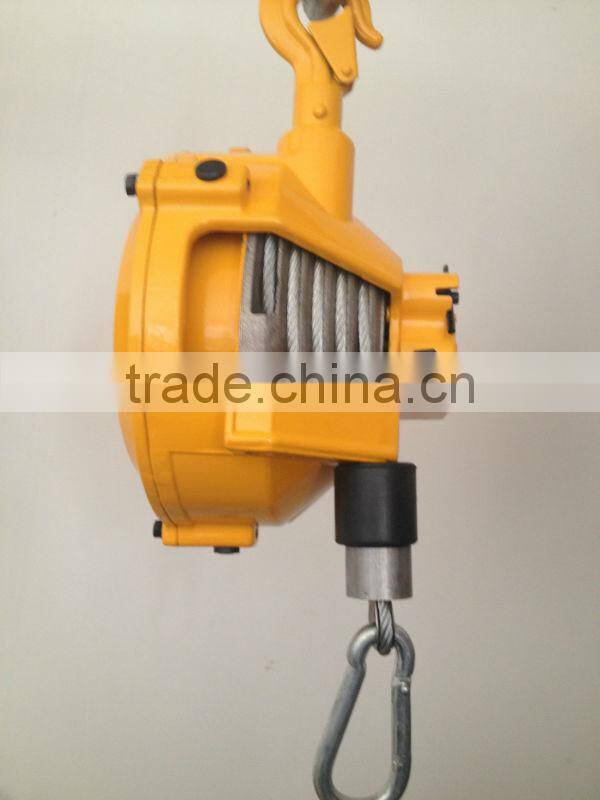

maximum stroke 1.6m 22kg spring balance weight balancer
What is Spring Balancer?
Spring balancer is a kind of accessorial tool special for suspending electrical machine, which can balance with weight of tools, and achieve modern and civilized production. It has been widely used for welding product lines of vehicle body, rivet lines, and assembly line of engine, motorcycles and home appliances where the tools must be hung. It'll be the ideal choice to reduce the labour intensity and increase the productivity.
HW series spring balancer Advantages
1.Suspending a tool for product assembly line.
2.Frenquent fastening screws,bolts and nuts.
3.Suspending a jig,tool, welding gun etc.
4.Spring balamcer improve working efficiency and diminish worker fatigue.
5.Spring balancer make the position of a tool stable and contribute to accurate work.
7.Any electric or pneumatic power is not required and safe working is achieved.
spring balancer Technical requirements
Model | Capacity | Stroke | Net weight |
| (kg) | (m) | (kg) |
HW-3.0 | 1.5-3.0 | 1.9 | 1.6 |
HW-5.0 | 3.0-5.0 | 1.9 | 1.62 |
HW-9.0 | 5.0-9.0 | 1.8 | 4.2 |
HW-15 | 9-15 | 1.8 | 4.5 |
HW-22 | 15-22 | 1.5-2.8 | 8 |
HW-30 | 22-30 | 1.5-2.8 | 8.5 |
HW-40 | 30-40 | 1.5-2.8 | 10 |
HW-50 | 40-50 | 1.5-2.8 | 10.2 |
HW-60 | 50-60 | 1.5-2.8 | 10.8 |
HW-70 | 60-70 | 1.5-2.8 | 11.2 |
HW-80 | 70-80 | 1.5-2.8 | 12 |
HW-100 | 80-100 | 1.9-2.8 | 22 |
HW-120 | 100-120 | 1.9-2.8 | 23 |
HW-140 | 120-140 | 1.9-2.8 | 24 |
HW-160 | 140-160 | 1.9-2.8 | 24.5 |
HW-180 | 160-180 | 1.9-2.8 | 25 |
HW-200 | 180-200 | 1.9-2.8 | 25.5 |
HW-120/240 | 200-240 | 1.9-2.8 | 50 |
HW-140/280 | 240-280 | 1.9-2.8 | 52 |
HW160/320 | 280-320 | 1.9-2.8 | 54 |
HW180/360 | 320-360 | 1.9-2.8 | 55 |
HW200/400 | 360-400 | 1.9-2.8 | 56 |
Packing:
Carton, wooden case or pallet.
Shipping:
10days after received the deposit.
