hoisting powerful electromagnetic chuck Magnetic chuck

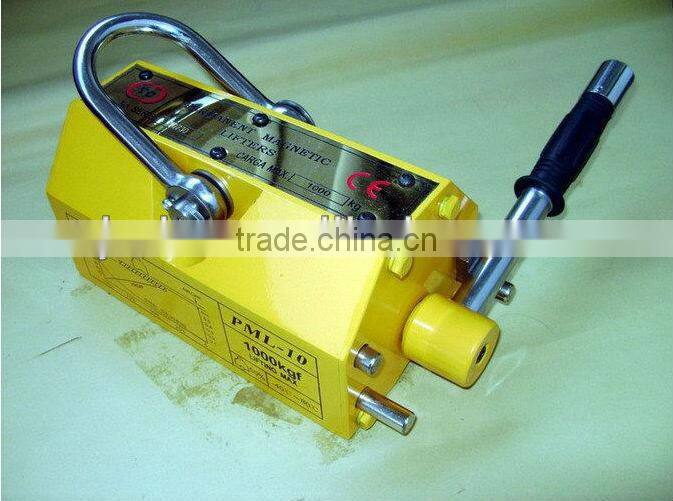

Permanent magnetic lifter has strong magnetic path produced by NdFeB magnet. On and off magnetic path is controlled by turning the manual handle. The lifters have the features of strong attraction, smaller volume, lighter weight, powerful lifting effort, easy and safe to operate, long-period effort and without power supply. They are been used to lift and transport the steel and iron for factories, docks, ware houses, and so on.
1.Lifting weight:100kg,300kg,400kg,600kg,1000kg,2000kg,3000kg
2.pulling-out force:3 times,3.5 times
3 .Widely used in machining, mould producing industry.
4.Using high-performance permanent magnetic materials, Strong in magnetic suction, patent circuit design, remanence almost zero.
5. High safety factor, maximal breakway force is 3.5 times rated lifting power.

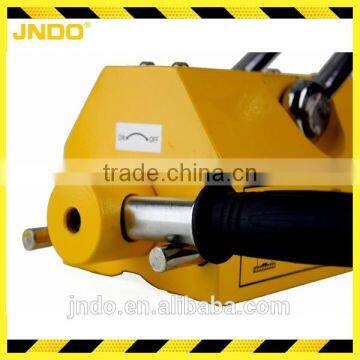

6. Handle switches with safety twist, easy for Single-hand operation, more safety and convenience.
7. V style design at the bottom of lifter,can lift opposite round steel or steel board.
8. Without electricity, magnetic lasting popularity, more safety on using, aside may operated at open country.
Model | Rarde Lifting (KG) | Boundary dimension(MM) | MAX Lift | Net Weight | ||||
steel plate | cylidrical workpiece | L | B | H | R | KG | KG | |
PML-1 | 100 | 50 | 95 | 77 | 80 | 155 | 350 | 3.5 |
PML-3 | 300 | 150 | 163 | 105 | 110 | 185 | 1050 | 11.5 |
PML-4 | 400 | 200 | 201 | 115 | 115 | 210 | 1400 | 18.2 |
PML-6 | 600 | 300 | 221 | 120 | 125 | 235 | 2100 | 25 |
PML-10 | 1000 | 500 | 295 | 145 | 152 | 265 | 3500 | 48 |
PML-15 | 1500 | 750 | 313 | 145 | 152 | 350 | 5000 | 55 |
PML-20 | 2000 | 1000 | 360 | 170 | 178 | 426 | 6000 | 90 |
PML-30 | 3000 | 1500 | 460 | 180 | 186 | 520 | 9000 | 120 |
PML-50 | 5000 | 2500 | 660 | 260 | 280 | 650 | 15000 | 240 |
PML-100 | 10000 | 5000 | 870 | 260 | 300 | 750 | 30000 | 500 |
By adopting carefully selected components and perfect and perfect manufacturing technology,we can show the outstanding product quality to customers so that users can operate our products easier,by using brand new environment-friendly peotection paint and humanization design,it takes you perfect security in different work conditions.
We can provide not only amazing products,but also special ones designed at requests.We'll do our best to meet the need of customers.
