0.1ton-10ton steel plate lifting magnets

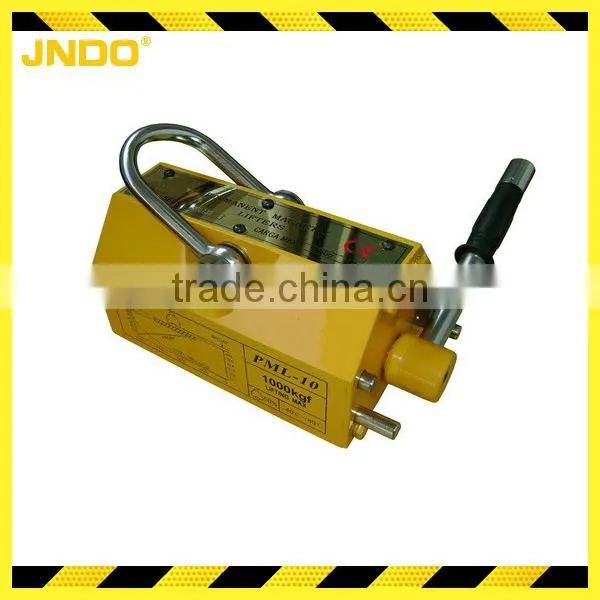

Permanent magnet lifter has strong magnetic path produced by NdFeB magnet. On and off magnetic path is controlled by turning the manual handle. The lifters have the features of strong attraction, smaller volume, lighter weight, powerful lifting effort, easy and safe to operate, long-period effort without power supply. They have been used to lift and transport the steel and iron for factories, docks, ware houses, and so on.
Permanent magnet lifter material: NdFeB Magnet, Neodymium Magnet, Permanent Magnet, Rare-earth Magnet.
Lifting weight:100kg,300kg,400kg,500kg,600kg,800kg,1000kg,2000kg,3000kg,5000kg,
10000kg.
pulling-out force:3 times,3.5 times
Permanent magnet lifter widely used in machining, mould producing industry.
Using high-performance permanent magnetic materials, strong in magnetic suction, patent circuit design, remanence almost zero.
High safety factor, maximal breakway force is 3.5 times of rated lifting power.
Handle switches with safety twist, easy for single-hand operation, more safe and convenient.
V style design at the bottom of lifter,can lift opposite round steel or steel board.
Model | Rarde Lifting (KG) | Boundary dimension(MM) | MAX Lift | Net Weight | ||||
steel plate | cylidrical workpiece | L | B | H | R | KG | KG | |
PML-1 | 100 | 50 | 95 | 77 | 80 | 155 | 350 | 3.5 |
PML-3 | 300 | 150 | 163 | 105 | 110 | 185 | 1050 | 11.5 |
PML-4 | 400 | 200 | 201 | 115 | 115 | 210 | 1400 | 18.2 |
PML-6 | 600 | 300 | 221 | 120 | 125 | 235 | 2100 | 25 |
PML-10 | 1000 | 500 | 295 | 145 | 152 | 265 | 3500 | 48 |
PML-15 | 1500 | 750 | 313 | 145 | 152 | 350 | 5000 | 55 |
PML-20 | 2000 | 1000 | 360 | 170 | 178 | 426 | 6000 | 90 |
PML-30 | 3000 | 1500 | 460 | 180 | 186 | 520 | 9000 | 120 |
PML-50 | 5000 | 2500 | 660 | 260 | 280 | 650 | 15000 | 240 |
PML-100 | 10000 | 5000 | 870 | 260 | 300 | 750 | 30000 | 500 |
We are the best because we make magnet with more attention to details,
with our full heart in.
1: Nothing can be achieved without honesty.
2: Quality is the first .
3: Always ready to service clients.
4: Work as a team .
