Specifications
2t hand portable battery powered hydraulic pallet truck1.Conforms to EU's ROHS standard.
2. two major functions
3.CE
2t hand portable battery powered hydraulic pallet truck

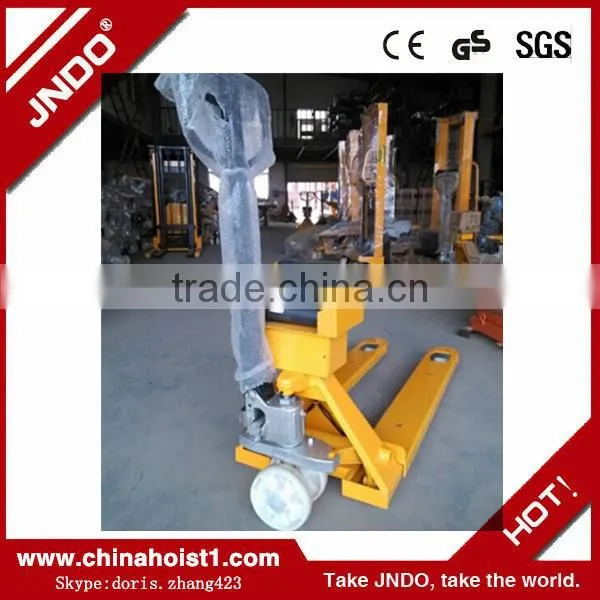

The Hand hydraulic pallet truck with scale, its Precision of weighing can be up to 1/3000, the minimum weighing is 10 kg, weighing system consist of stainless steel instrument, high quality alloy steel transducer and five hole junction box, ultra-quiet wheel, steel one-piece cylinder and others, It can be customized according to customer's requesting.
2.Power supply with rechargeable battery or with 88~264V AC input.
3.Keypad and automatic tare functions.
4.1.2inches,super-large and bright LED display in solid state to be strike-free.
5.Available in pounds or kilograms.
6.A/D velocity:27/s,a faster speed of weighing, more correct.
7.Various functions: with extended functions as weight-checking, counting, ect.,to satisfy different needs of customers.
8.Conforms to EU's ROHS standard.
Technical parameters
Hand pallet truck 1KG=2.2LB 1INCH=25.4MM | ||||
Model |
|
CTP-20 |
CTP-25 |
CTP-30 |
Maximum load |
kg |
2000 |
2500 |
3000 |
Min.Fork Height |
mm |
85 |
85 |
85 |
Max.Fork Height |
mm |
190 |
190 |
190 |
Total Height |
mm |
1214/1224 |
||
Load centre distance |
mm |
500 |
500 |
500 |
Fork Oustide Distance |
mm |
550/690 |
||
Fork Length |
mm |
1150 |
||
Over All Length |
mm |
1530 |
||
Fork Size |
mm |
160x50 |
||
Steering Wheel |
mm |
Φ180x50 |
Φ180x50 |
Φ180x50 |
Load Roller Tandem Wheel |
mm |
Φ80x70 |
Φ80x70 |
Φ80x70 |
Material of Wheel |
Nylon/Polyurethane/Rubber |
|||
Turning Radius |
mm |
1245/1315 |
||
Aisle width for pallets 1000x1200 crossways |
mm |
1733/1803 |
||
Aisle width for pallets 800x1200 lengthways |
mm |
1783/1803 |
||
Graduation Value |
kg |
0.5kg/1kg |
||
Net Weight |
kg |
110-120 |
||
Packing Details
Export standard package; full set documents including spare parts list, operate maintenance manual and engine operate manual; one set of inspeciton certificate issued by manufacturer.
Trade Terms
MOQ |
5pcs |
Price |
The price is based on FOB Qingdao ,China |
Sample Time |
3 working days |
Supply Ability |
50000pcs/month |
Warranty |
One year |
After-sales service |
Problems,take a photo or video as evidence,any fault caused by non-artiificial reason or from the mechine itself we should maintain it freely.A new component will be offered if necessary. |
Super Abilites:
By adopting carefully selected components and perfect and perfect manufacturing technology,we can show the outstanding product quality to customers so that users can operate our products easier,by using brand new environment-friendly peotection paint and humanization design,it takes you perfect security in different work conditions.
Outstand Service:
We can provide not only amazing products,but also special ones designed at requests.We'll do our best to meet the need of customers.
