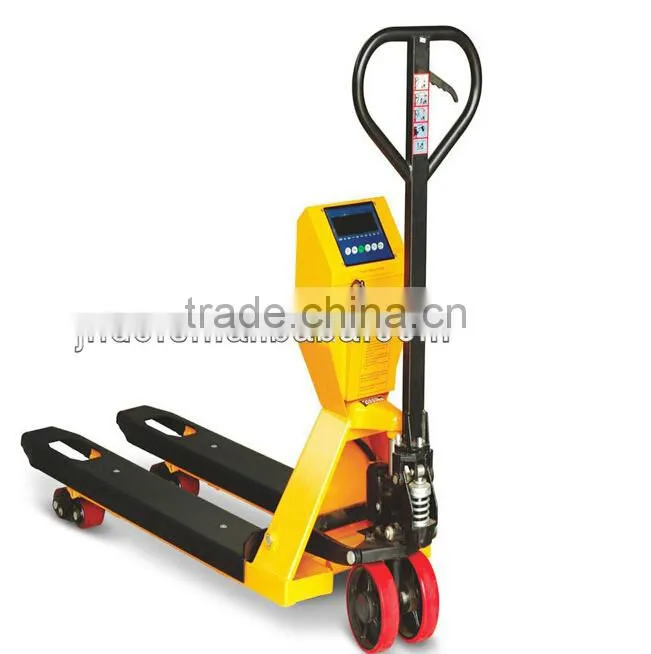

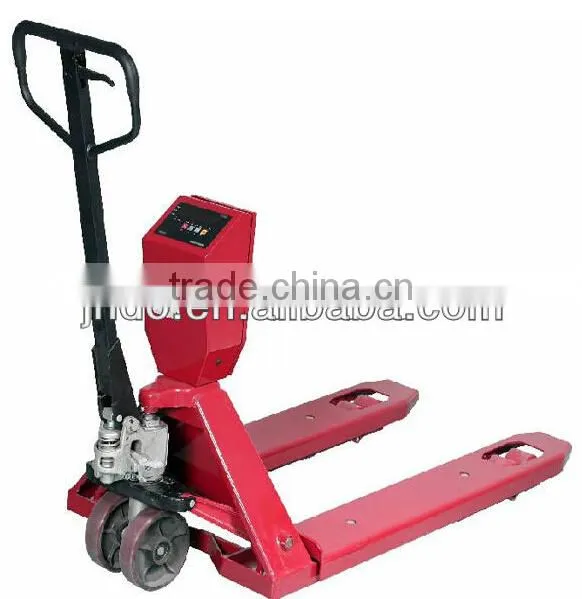

electric transpallet forklift/mini electric pallet truck
The Hand hydraulic pallet truck with scale, its Precision of weighing can be up to 1/3000, the minimum weighing is 10 kg, weighing system consist of stainless steel instrument, high quality alloy steel transducer and five hole junction box, ultra-quiet wheel, steel one-piece cylinder and others, It can be customized according to customer's requesting.
2.Power supply with rechargeable battery or with 88~264V AC input.
3.Keypad and automatic tare functions.
4.1.2inches,super-large and bright LED display in solid state to be strike-free.
5.Available in pounds or kilograms.
6.A/D velocity:27/s,a faster speed of weighing, more correct.
7.Various functions: with extended functions as weight-checking, counting, ect.,to satisfy different needs of customers.
8.Conforms to EU's ROHS standard.
Technical parameters
Hand pallet truck 1KG=2.2LB 1INCH=25.4MM | ||||
Model |
|
CTP-20 |
CTP-25 |
CTP-30 |
Maximum load |
kg |
2000 |
2500 |
3000 |
Min.Fork Height |
mm |
85 |
85 |
85 |
Max.Fork Height |
mm |
190 |
190 |
190 |
Total Height |
mm |
1214/1224 |
||
Load centre distance |
mm |
500 |
500 |
500 |
Fork Oustide Distance |
mm |
550/690 |
||
Fork Length |
mm |
1150 |
||
Over All Length |
mm |
1530 |
||
Fork Size |
mm |
160x50 |
||
Steering Wheel |
mm |
Φ180x50 |
Φ180x50 |
Φ180x50 |
Load Roller Tandem Wheel |
mm |
Φ80x70 |
Φ80x70 |
Φ80x70 |
Material of Wheel |
Nylon/Polyurethane/Rubber |
|||
Turning Radius |
mm |
1245/1315 |
||
Aisle width for pallets 1000x1200 crossways |
mm |
1733/1803 |
||
Aisle width for pallets 800x1200 lengthways |
mm |
1783/1803 |
||
Graduation Value |
kg |
0.5kg/1kg |
||
Net Weight |
kg |
110-120 |
||
Packing Details
Export standard package; full set documents including spare parts list, operate maintenance manual and engine operate manual; one set of inspeciton certificate issued by manufacturer.
Trade Terms
MOQ |
5pcs |
Price |
The price is based on FOB Qingdao ,China |
Sample Time |
3 working days |
Supply Ability |
50000pcs/month |
Warranty |
One year |
After-sales service |
Problems,take a photo or video as evidence,any fault caused by non-artiificial reason or from the mechine itself we should maintain it freely.A new component will be offered if necessary. |
Super Abilites:
By adopting carefully selected components and perfect and perfect manufacturing technology,we can show the outstanding product quality to customers so that users can operate our products easier,by using brand new environment-friendly peotection paint and humanization design,it takes you perfect security in different work conditions.
Outstand Service:
We can provide not only amazing products,but also special ones designed at requests.We'll do our best to meet the need of customers.
