Hand Manual Pallet Jack With 6mm Thickness Steel

Hand Manual Pallet Jack With 6mm Thickness Steel thumbnail-1
Hand Manual Pallet Jack With 6mm Thickness Steel thumbnail-2
Hand Manual Pallet Jack With 6mm Thickness Steel thumbnail-3
Hand Manual Pallet Jack With 6mm Thickness Steel thumbnail-4
Hand Manual Pallet Jack With 6mm Thickness Steel thumbnail-5
Hand Manual Pallet Jack With 6mm Thickness Steel thumbnail-6
Hand Manual Pallet Jack With 6mm Thickness Steel photo-1
Hand Manual Pallet Jack With 6mm Thickness Steel photo-2
Hand Manual Pallet Jack With 6mm Thickness Steel photo-3
Hand Manual Pallet Jack With 6mm Thickness Steel photo-4
Hand Manual Pallet Jack With 6mm Thickness Steel photo-5
Hand Manual Pallet Jack With 6mm Thickness Steel photo-6
US$ 160 - 500 MOQ: 6 Pieces
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
JNDO
Contact Supplier Request Quote Chat Now
Shandong Jndo Hoisting Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shanghai, China
Brand Name JNDO
Model Number CBY-AC
Type Manual Pallet Truck
Rated Loading Capacity 3T
Max. Lifting Height 195MM
Min. Lifting Height 85MM
Fork Length 1150mm,1100 or 1220mm
Fork Width 450mm,550 or 685mm
Certification CE GS SGS
After-sales Service Provided No overseas service provided

 hand manual pallet jack with 6mm thickness steel

Product Description

   The  lift truck is the ideal " storage aid" and " handling partner " for all manual transport tasks over short distances , exce-llently suitable for use on lorries ,in small warehouses and markets ect

Product parameter

 Hydraulic Hand Pallet Truck(CBY-AC ),Manual Pallet Truck,Hand Pallet Truck:

the speacification of  hand pallet truck as follows :



Model

CBY-AC 2.0

CBY-AC 2.5

CBY-AC3.0

Capacity(kg)

2000

2500

3000

Min.fork height(mm)

85/75

85/75

85/75

Max.fork height(mm)

195/185

195/185

195/185

Lifting height(mm)

110

110

110

Fork length(mm)

1150/1220

1150/1220

1150/1220

Single Fork width(mm)

160

160

160

Fork overall width(mm)

550/685

550/685

550/685

Fork wheel-single(mm)

Φ80X93/74X93

Φ80X93/74X93

Φ80X93/74X93

Fork wheel-tandem(mm)

Φ80X70

Φ80X70

Φ80X70

Steering Wheel(mm)

Φ180X50

Φ180X50

Φ180X50

Self Weight(kg)

73-92

73-92

73-92

Qty/20 feet container(pcs)

180/144

180/144

180/144





photo show

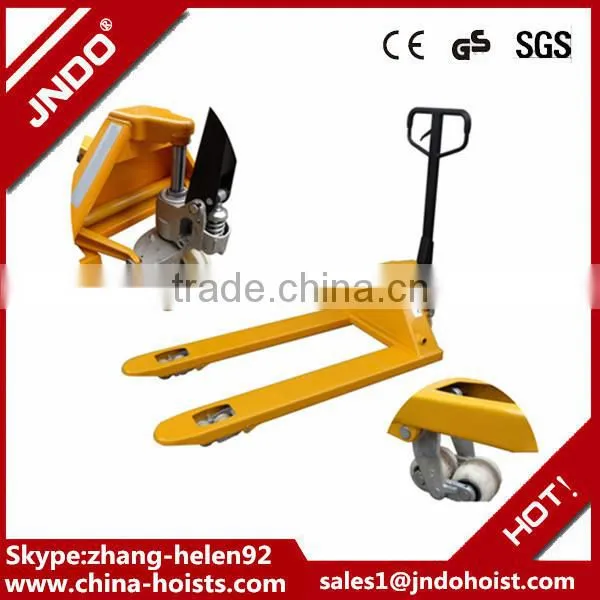

  Physical diagram shows( Hydraulic Hand Pallet Truck(CBY-AC ),Manual Pallet Truck,Hand Pallet Truck: )

  Advantage of hand pallet truck:

High Safety

Easy to apply, transport and store

Various sizes available for every applications

Strong resistance to chemical, oil & surface abrasion

Long life and economy price

Perfect Quality control by thorough experiment

hand pallet truck



Packaging & Shipping

 Delivery: 7 days after received the payment Packing: Plywood pallets or as customers request

Our Services

  We can provide not only amazing products,but also special ones designed at requests.We'll do our best to meet the need of customers.
