Home > Manufacturing & Processing Machinery > Lifting Equipment > Hoist > Pa1000 Mini Electric Hoist Winch

Pa1000 Mini Electric Hoist Winch

Name: Pa1000 Mini Electric Hoist Winch
Brand: JNDO
SKU: 141618424
Availability: InStock

Pa1000 Mini Electric Hoist Winch thumbnail-1

Pa1000 Mini Electric Hoist Winch photo-1

US$ 45 - 150 MOQ: 100 Sets

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

JNDO

Contact Supplier Request Quote Chat Now

Shandong Jndo Hoisting Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shandong, China

Brand Name JNDO

Model Number pa

Usage Construction Hoist

Power Source Electric

Sling Type Wire Rope

Maximum Lifting Weight 1200kgs

Maximum Lifting Height 12M

Lift Speed 10M

Certification CE

Warranty 1 Year

After-sales Service Provided No overseas service provided

pa1000 mini electric hoist winch

Product Description

1.pa1000 mini electric hoist winch specifications/features :

• The emergency stop switch

• Upper limit function

• Thermal protection terminal

• Protection class IP54

• Insulation class B

• Group of mechanisms M1

• Work Duty: S3-25%-10min

• Rated Volt: 220/230V ~ 50Hz

• Rated Current: 2.0A

• Input Power: 480W

• Lifting Weight: 100-600kg (Single-line), 200-1200kg (Double-line)

• Lifting Height: 12m (Single-line), 6m (Double-line)

• Lifting Speed: 10m/min (Single-line), 5 m/min (Double-line)

• Diameter of wire rope: 3.0mm

• Tensile strength of wire rope ≥ 1870N/mm²

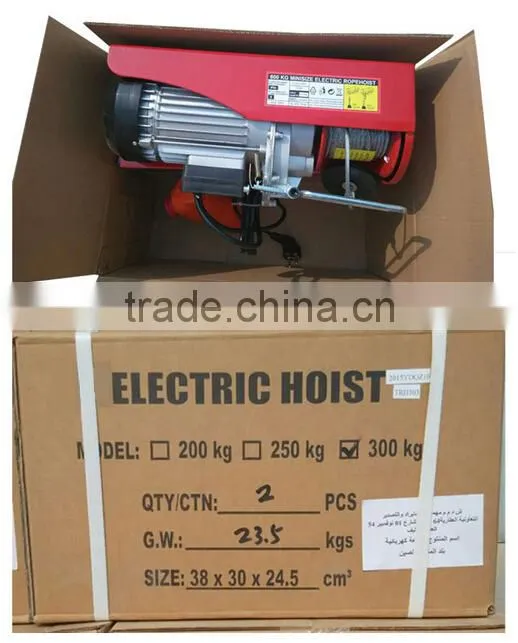

Packaging & Shipping

2. pa1000 mini electric hoist winch logistic Information:

• Packing pattern: 1pc per color inner box, 2pcs per master carton

• Packing Dimension: 44*38*20 cm

• G.W./N.W.: 24/22kg

• Qty /1x20’FCL: 1650pcs

3.payment Details:

• Payment terms: T/T

• MOQ: 200 PCS Min

4.delivery Details:

• FOB Ports: Qingdao port

• Lead time: 10 days

5.harmonization System (HS) Code:

• 8425 1100

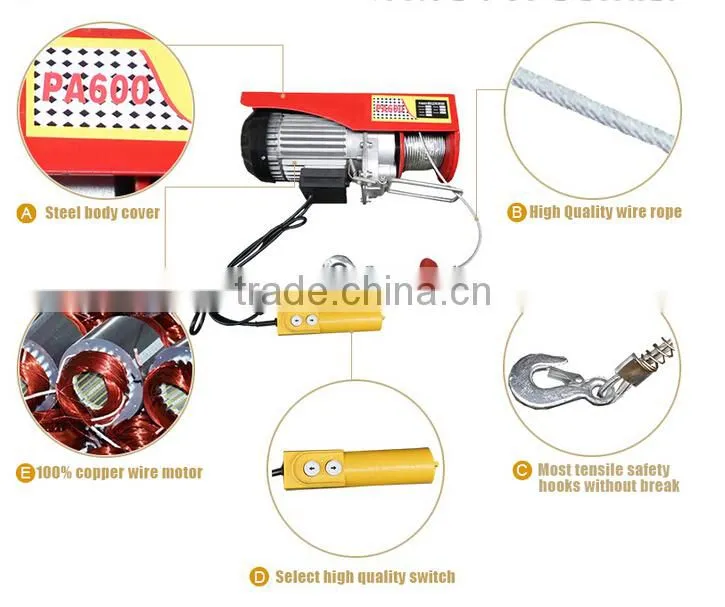

Detailed Images

6.characteristic of pa1000 mini electric hoist winch:

Model	PA200/PA300/PA400/PA500/PA600/PA800/PA1000/PA1200
Voltage	220V/230V 50HZ
Motor power	510W/510W/600/980/1000/1200/1300/1600
Wire rope size	3.05/3.05/3.05/3.8/4.2/4.5/5.1/5.6mm
Motor	100% pure copper wire.
Hook	Anti-rotate type hook with one pulley
Controller	With the emergency knob
The plug	Customization

Product Parameter

7. technical parameters of pa1000 mini electric hoist winch :

Model	Hook Type	Voltage(V)	Power(W)	Capacity(kg)	Lifting Speed(m/min.)	Lifting Height(m)	Qty/CTN	Packing Size(cm)	N.W./G.W (kG)
PA200	Single hook	AC220V/230V 50Hz/60Hz	510	100	10	12	2	393125	21/22
PA200	Double hook		510	200	5	6		393125	21/22
PA300	Single hook		600	150	10	12		393125	22
PA300	Double hook		600	300	5	6		393125	23
PA400	Single hook		980	200	10	12		453427.5	30.5
PA400	Double hook		980	400	5	6		453427.5	32.5
PA500	Single hook		1000	250	10	12		453427.5	31
PA500	Double hook		1000	500	5	6		453427.5	33
PA600	Single hook		1200	300	10	12		453427.5	32.6
PA600	Double hook		1200	600	5	6		453427.5	35
PA800	Single hook		1300	400	10	12		453427.5	35
PA800	Double hook		1300	800	5	6		453427.5	37.5
PA1000	Single hook		1600	500	10	12	1	572632	30
PA1000	Double hook		1600	1000	5	6	1	572632	31

picture or product

FAQ

1.The Mini Order of pa1000 mini electric hoist winch ?
We can accept only one piece.

2.About sample.
The buyer should offer the cost and freight, if the quantity is big then can turn back all of it after placing the order.

3.About payment.
100% TT as deposite, if amount more than 5000usd.
Or 30%TT as deposite, balance after B/L copy.

4.How long does it take to receive my pa1000 mini electric hoist winch order?
About 15 Days from we get the down payment, 7 days for sample order.

5.What is the information should I provide when inquiry pa1000 mini electric hoist winch?
a. How many quantity will I want to buy?
b. How much is the maximum lifting weight of the hoist?
c. Which one is my need? fixed or moved by trolley?

6.How will my order shipped?
Usually shipped by sea, small order or urget order we can send you by Air or DHL,UPS or Fedex, after received your agreement.
