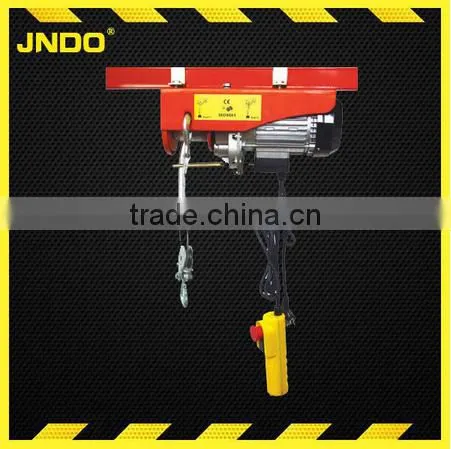

PA Type Mini Electric Rope Hoist
PA type mini electric hoist Description:
Name :Mini Wire Rope Electric Hoist ,
PA electric hoist,
small type electric hoist.
Description:
1 Lightweight & compact design allow mounting convenient.
2 When rope touches the limit arm, stop automatically.
3 Induction-motor stops when the rope is reverse waind.
4 Dynamic brake designs for both static and dynamic loading.
5 It operates on household power source.
6 Plug-in cords allow portability with easy.
7 360° universal joint saddle hook with safety latch.

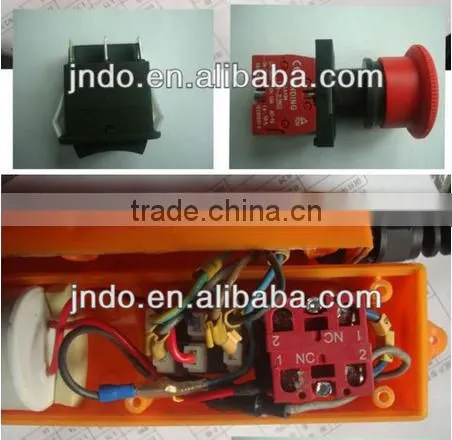

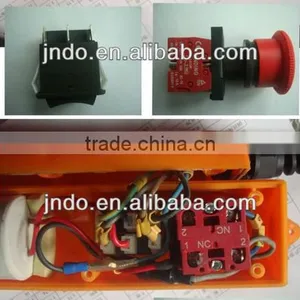

• The emergency stop switch
• Upper limit function
• Thermal protection terminal
• Protection class IP54
• Insulation class B
• Group of mechanisms M1
• Work Duty: S3-25%-10min
• Rated Volt: 220/230V ~ 50Hz
• Rated Current: 2.0A
• Input Power: 1020W
• Lifting Weight: 250kg (Single-hook), 500kg (Double-hook)
• Lifting Height: 12m (Single-hook), 6m (Double-hook)
• Lifting Speed: 10m/min (Single-hook), 5 m/min(Double-hook)
• Diameter of wire rope: 4mm
• Tensile strength of wire rope>1870N/mm2
Brief Introduction of Wire Rope Mini Electric Hoist 100kg
| Product Name | Wire Rope Mini Electric Hoist 100kg |
| Type | Wire Rope Winch |
| Model | mini electric hoist 100kg |
| Single/Double Hook | 100kg 200kg |
Max. Spindle Stoke:Lifting Height (Single Rope) |
12m |
| Max. Spindle Stoke:Lifting Height (Double) | 6m |
Liting Speed (Single Rope) m/min. |
10 |
Liting Speed (Double Rope) m/min. |
5 |
Cable Length |
12m |
Feature |
With Emergency stop button and reinforced breaking switch with position limiter, thermal protection device,IP40;Small noise,light weight |
Main Voltage |
220v 50hz |
Service |
S3 20% / 10min |
Package Contents |
Hoist Unit |
|
Package Dimensions |
38*32*25cm |
| N.W./G.W.(KG) | 10.5/11 |
| Delivery Time | within 7 days working days |
| Payment Term | T/T , L/C at sight |
Parameters of Wire Rope Mini Electric Hoist 100kg
| Model | Hook Type | Voltage(V) | Power(W) | Capacity(kg) |
Lifting Speed(m/min.) |
Lifting Height(m) |
Qty/CTN |
Packing Size(cm) |
N.W./G.W (kG) |
| PA200 | Single hook |
AC220V/230V
50Hz/60Hz |
510 | 100 | 10 | 12 | 2 | 39*31*25 | 21/22 |
|
Double hook |
200 | 5 | 6 | ||||||
| PA300 | Single hook | 600 | 150 | 10 | 12 | 39*31*25 | 22 | ||
|
Double hook |
300 | 5 | 6 | 23 | |||||
| PA400 | Single hook | 980 | 200 | 10 | 12 | 45*34*27.5 | 30.5 | ||
|
Double hook |
400 | 5 | 6 | 32.5 | |||||
| PA500 | Single hook | 1000 | 250 | 10 | 12 | 45*34*27.5 | 31 | ||
|
Double hook |
500 | 5 | 6 | 33 | |||||
| PA600 | Single hook | 1200 | 300 | 10 | 12 | 45*34*27.5 | 32.6 | ||
|
Double hook |
600 | 5 | 6 | 35 | |||||
| PA800 | Single hook | 1300 | 400 | 10 | 12 | 45*34*27.5 | 35 | ||
|
Double hook |
800 | 5 | 6 | 37.5 | |||||
| PA1000 | Single hook | 1600 | 500 | 10 | 12 | 1 | 57*26*32 | 30 | |
|
Double hook |
1000 | 5 |
Application :The electric hoist we produce can be used in factories, mines, agriculture, electric power, construction building site, dock, and warehouse for installation of the machines, lifting the cargoes, loading and unloading the trucks.
Adopt urgent stop switch and reinforced breaking switch with position limit.Protection class up to IP54.
With thermal prevention device.
