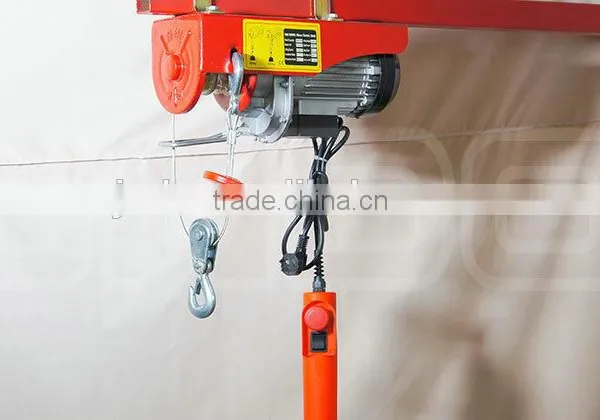

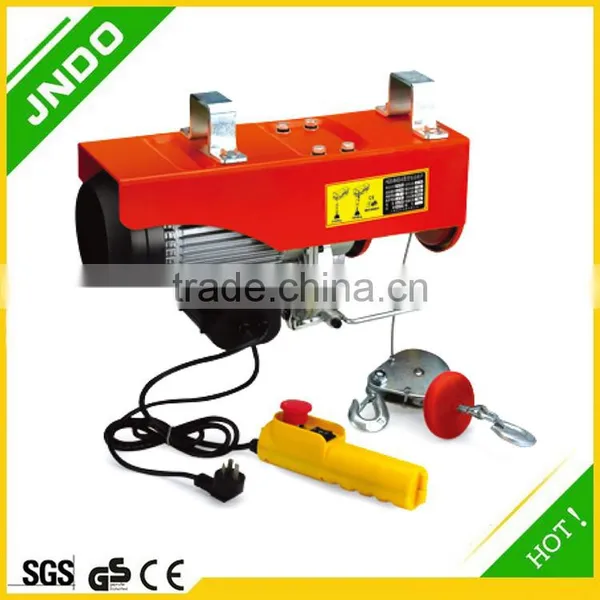

200kg PA mini electric hoist
The PA series mini electric hoist works under a voltage of 220V. It is mainly used to lift heavy goods under household power supply. A limiting device is provided to ensure the electricity is cut automatically when the hook has met its limit in height. It ensures a high level of safety. This product has been CE certified.
Main Features
1) Approved by CE/GS/TUV/UL
2) Powerful pure copper motor, with good electrical conductivity
3) The protection class is IP54
4) With upper limiting device
5) Lower limiting device optional
6) Aircraft anti-rotation wire rope
7) Different switches with or without emergency brake
8) Fixed or movable
Fixed hoist double line pulling
With the heavy duty forged steel hook and pulley block, the lifting force can be doubled.
The emergence brake cuts the power down immediately to get the user and goods out of danger.
Anti-rotation wire rope
The aircraft anti-rotation wire rope is stronger than normal wire ropes and can prevent the goods from rotation. In that case the lifting process becomes safer.
Motor rotor and magnetic braking device
Our motor rotor is designed with an extra fan. This allows for excellent heat dissipation and an extended lifespan of the motor.
Our magnetic braking device has proven to continuously work under full load for 72 hours. It can prevent goods from falling off.

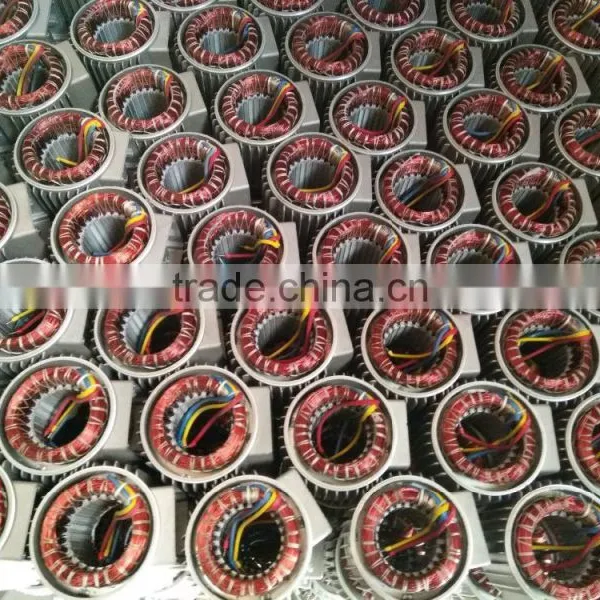

Copper coil
The copper coil of the motor is of superior quality and good conductivity. It is covered by insulation materials.
Thermal protector can be installed to prevent the motor from overheat.
Helical gears
We have designed the hoist with high-precision helical gears to greatly reduce noise.
Made of high-tensile forged steel. Each tooth is quenched to gain high hardness and wear resistance.
Upper limiting device
When the hoist keeps lifting, the upper limiting device can protect the hoist from damage.
The lower limiting device is optional.
Switch handle
Comfortable switch handle with emergence brake button, saving lives and goods.
Different switches can be chosen at different prices.
Electric trolley
Powered by AC 100V/120V or 220V/230V electric source, simple to install and control.
The width of the bull-headed rail can be adjusted arbitrarily.
High-quality steel spur gears to ensure the electric trolley runs smoothly.
Hoist frame
The frame is in small volume, but can bear heavy load.
Easy installation.
180 degrees rotation with premium casting steel clamp, stable and durable.
Shandong JNDO Hoisting Equipment Co., Ltd is a manufacturer specialized in the research, development and production of high-quality made-in-China winch/windlass, hoist, crane, jack, pallet truck ,magnet lifter and accessories etc.
Please feel free to contact us with any inquiries for products.
Pick-up truck mounted crane
500kg/800kg pick-up truck mounted crane, installed on trucks, vans or platforms, powered by 12V DC battery.
