Specifications
PlainTrolley1.Good quality GCT type plain trolley
2.Capacity: 0.5T,1T,2T,3T,5T,10T
3.Singe way

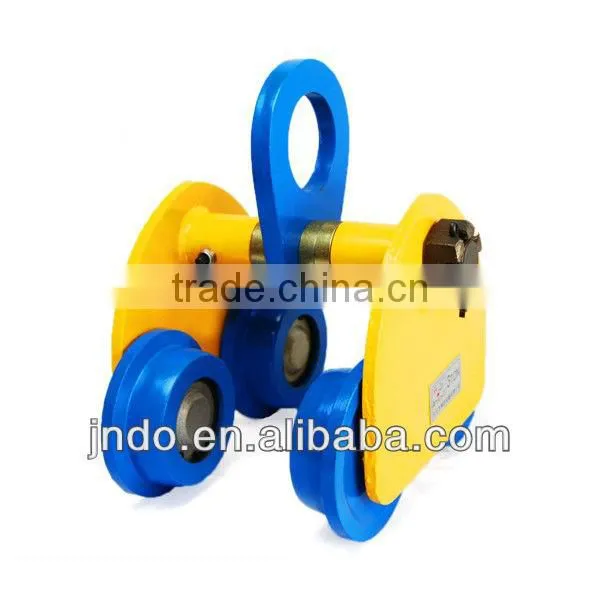

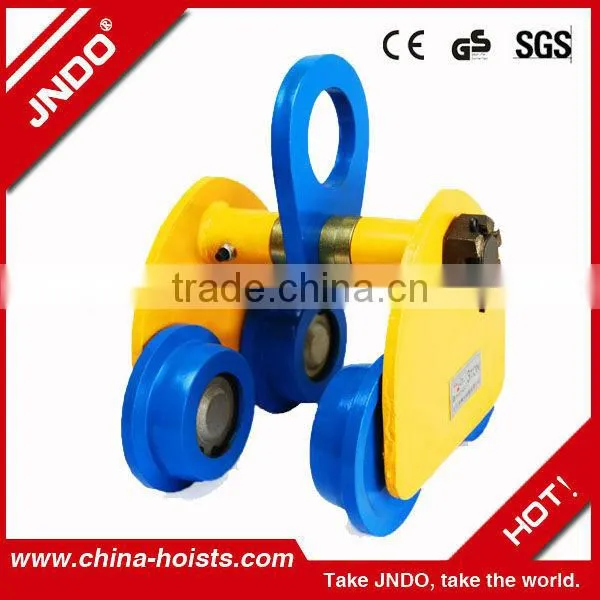

Plain Trolley on Wheels for Hoist
Introduction:
1.Geared trolley should be formed a complete set with chain hoist or other lifting machines.
2.There are ball bearings are in layed in the wheels of the geared trolley.
3.The geared trolley is a lifting machine that has high efficiency in operation with small hand-pull/push force.
4.Geared trolley should be fit on the bottom flange of I-beam to compose a running lifting trolley.
Precaution:
1.Overloading is strictly prohibited.
2.While lifting the load,passing or working under the lifting load is strictly prohibited.
3.Stop operating immediately and fix a breakdown in case the pull force exceeds that of normal operation or there troubles.
4.Bearing ,gear,etc should be greased regularly and examine the fasteners to make sure that are tightened.
Specifications:
| Model | Capacity (T) | Test load (T) | Min.radius of curve | Dimensions (mm) | I-steel available (mm) | Net.WT.(KG) | |||||
| A | B | C | H | F | |||||||
| GCT 0.5 | 0.5 | 0.753 | 0.9 | 242.5 | 170 | 187 | 105 | ≈3 | 68-94 | 4.8 | |
| GCT 1 | 1 | 1.471 | 1 | 245 | 206 | 206 | 109 | ≈3 | 68-100 | 7.7 | |
| GCT 1.5 | 1.5 | 2.206 | 1 | 279.5 | 228 | 236 | 125 | ≈3 | 88-118 | 12.8 | |
| GCT 2 | 2 | 2.942 | 1.1 | 179.5 | 240 | 243 | 133 | ≈3 | 94-124 | 12.8 | |
| GCT 3 | 3 | 4.413 | 1.3 | 344 | 282 | 321 | 179 | ≈3 | 116-140 | 34.5 | |
| GCT 5 | 5 | 6.129 | 1.4 | 362 | 327 | 393 | 220 | ≈3 | 142-180 | 43 | |
| GCT 10 | 10 | 12.258 | 1.7 | 402 | 389 | 490 | 275 | ≈3 | 142-180 | ||
