Specifications
new type GCL-B geared trolley1.Capacity:0.5T-10T
2.Feature: geared trolley
3.Receive OEM
4.GS SGS

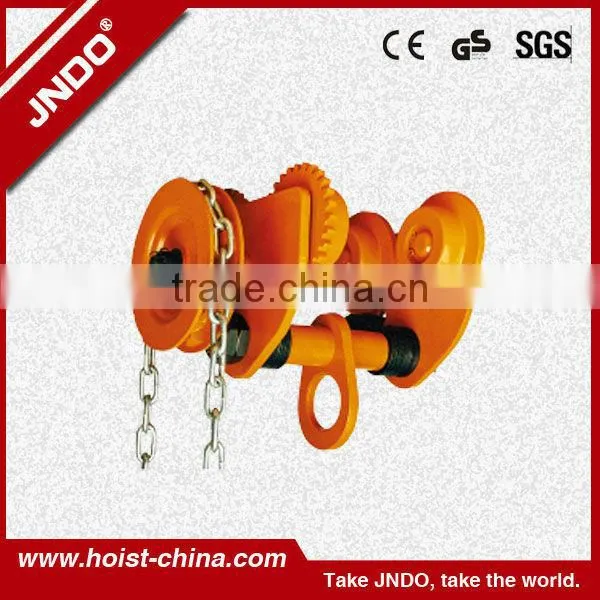

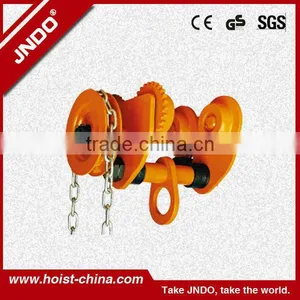

new type GCL-B geared trolley
Additional features and benefits include:
Rated loads from 1/2 to 10tons in plain and geared models. Geared trolleys have
standard 4-foot hand chain drop. Other hand chain drops available.
Designed to provide superior performance and long, efficient service.
Lowest rolling effort in the trolley line.
Clevis accepts all hook-mounted hoists, or lug-mounted hoists attached directly to load pins.
Trolley easily conforms to any beam flange within range of adjustment.
Wrap-around side plates - Lugs provide additional security for operator and act as bumpers to protect wheels.
Dual tread wheels fit any tapered or flat flanged beams within range of adjustment. Wheels include permanently lubricated, shielded ball bearings for long life and
low maintenance.
Options - Spark resistant and corrosion resistant wheels available. Track clamps
available on 1/4 to 4 ton models.
manual plain trolley:
| Model | GCT0.5 | GCT1 | GCT2 | GCT3 | GCT5 | GCT10 | |
| Capacity (T) | 0.5 | 1 | 2 | 3 | 5 | 10 | |
| Test Load (T) | 0.75 | 1.5 | 2.25 | 4.5 | 7.5 | 12.5 | |
| Minimum turning radius (CM) |
90 | 100 | 110 | 130 | 140 | 170 | |
| Demension(mm) | A | 177 | 194 | 235 | 275 | 338 | 362 |
| B | 170 | 206 | 240 | 282 | 327 | 389 | |
| C | 187 | 206 | 243 | 321 | 393 | 490 | |
| H | 105 | 109 | 133 | 179 | 220 | 275 | |
| F | 3 | 3 | 3 | 3 | 3 | 3 | |
| I-Beam | mm | 68-94 | 68-100 | 94-124 | 116-140 | 142-180 | 142-180 |
| N.W/G.W | KG | 4.8/5.5 | 6.5/7 | 9.2/10 | 16/17 | 30/31 | 76/78 |
| Capacity | I-Beam Width | N.W. | A | B | C | H |
| ton | mm | kg | mm | mm | mm | mm |
| 0.5 | 75-125 | 12 | 271 | 170 | 190 | 106.5 |
| 1 | 75-125 | 15 | 277 | 206 | 222 | 123.5 |
| 1.5 | 100-150 | 18 | 311 | 228 | 236.5 | 125 |
| 2 | 100-150 | 18 | 311 | 240 | 267 | 132.5 |
| 3 | 100-150 | 35 | 358 | 282 | 320 | 175 |
| 5 | 125-175 | 54 | 401 | 327 | 391.5 | 190 |
| 10 | 125-180 | 100 | 442 | 389 | 490 |
275 |
Pls let me know any of your comments. Thanks.
