Specifications
Portable Hand Mini winch/Mechanical winch / manuial puley winch1.Capacity from 0.8T to 5.4T
2.Accept OEM
3.Safety and durabl

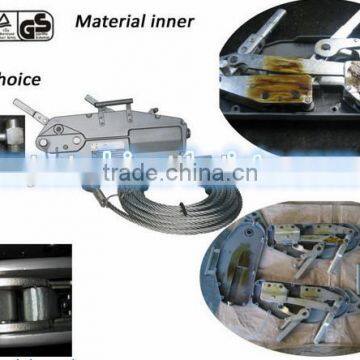

Portable Hand Mini winch/Mechanical winch
VIT model cable pulling winch is a kind of small-sized, compact, hand-operated lifting tool. It features light weight, compact structrue, wide range of applications and easy maintenance. This type of hoist is suitable to use outdoor sites under advrse circumstances.
Features of Wire Rope Pulling Hoist
1.Capacity: 0.8T x 20M, 1.6T x 20M, 3.2T x 20M, 5.4T x 20M. The lifting height can be customized.
2.All hoists are supplied complete with 20 meter wire rope and an extendable operating lever.
3.Wire rope is tapered one end and fitted with a hook and safety catch at the other end.
3.The hoist has low maintenance requirements and is easy service.
4.Overload protection ensures high personal safety when in operation.
5.Specially built-in shear pins can be replaced without removing the load.
Parameters of Wire Rope Pulling Hoist
| Model Item | VIT-800 | VIT-1600 | VIT-3200 | VIT5400 | |
| Rated forward hand power | 341 | 438 | 438 | 745 | |
| Rated capacity kg | 800 | 1600 | 3200 | 5400 | |
| Rated forward travel mm | ≥ 52 | ≥ 55 | ≥ 28 | ≥ 30 | |
| Rope diameter mm | 8.3 | 11 | 16 | 20 | |
| Wire rope safty factor load capacity | 5 | 5 | 5 | 5 | |
| Max traveling load | 1200 | 2400 | 4000 | 8000 | |
| Net weight | 6.4 | 12 | 28 | 57 | |
| Max outer size mm | A | 426 | 545 | 660 | 930 |
| B | 238 | 284 | 325 | 480 | |
| C | 64 | 97 | 116 | 152 | |
| L1 (cm) | 80 | 80 | 68 | ||
| L2 (cm) | 80 | 120 | 120 | 112 | |
| Packing | (L*W*H)(CM) | 43*6.4*24 | 54.5*9.7*29 | 66*12*35 | 110*110*73 |
