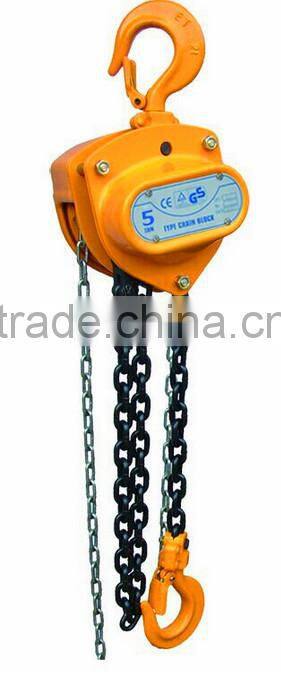

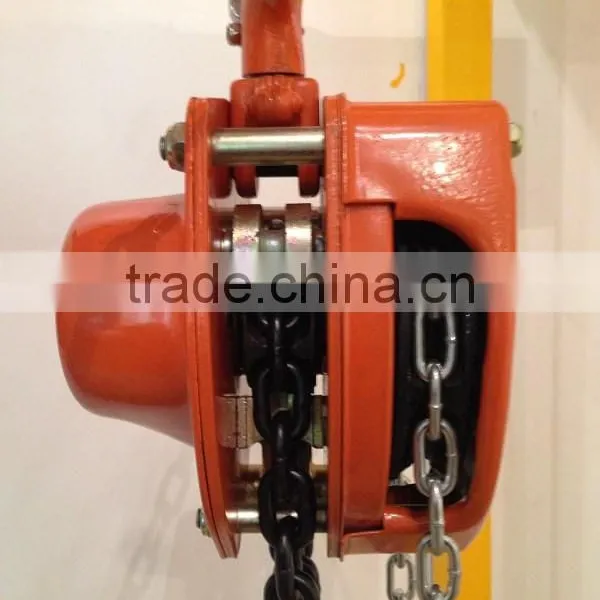

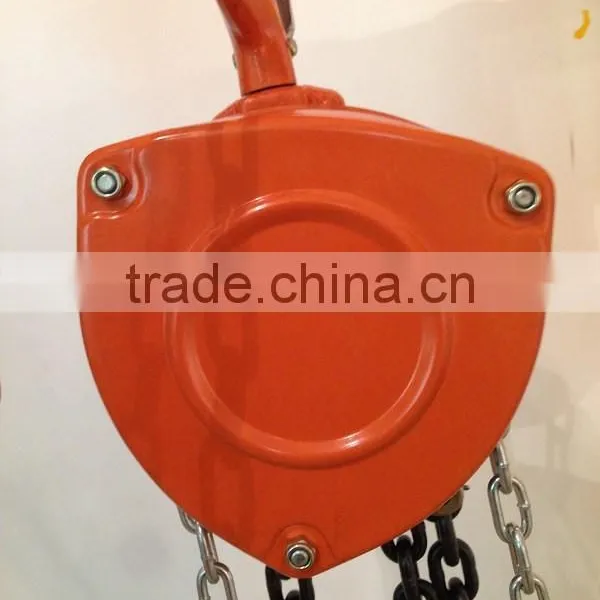

Professional Lifting 2000kg Manual Chain Block
US$ 40 - 400
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
JNDO
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
50 Ton Pull Lift Chain Lifting Hoist Chain FallUS$ 2,600 - 2,600MOQ: 1 Piece -
Manual Lifting Hoist Lift Hoists 0.5 Ton Chain Block HoistUS$ 60 - 1,000MOQ: 10 Pieces
-
Construction Hoist 2 Ton VC Manual Chain Hoist/chain BlockUS$ 30 - 1,000MOQ: 10 Pieces
-
1 Ton Vital Manual Chain Hoist/double Chain HoistUS$ 1 - 100MOQ: 1 Piece
-
5 Ton Chain Pulley Block/manual Chain HoistUS$ 1 - 100MOQ: 1 Piece
Condition
New
Place of Origin
Shandong, China
Brand Name
JNDO
Model Number
HSC
Usage
Construction Hoist
Power Source
Hand Chain
Sling Type
Chain
Maximum Lifting Weight
1.5 ton
Maximum Lifting Height
3m
Lift Speed
as you request
Certification
CE
Warranty
1 year
After-sales Service Provided
No overseas service provided
Specifications
Professional lifting 2000kg manual chain block1.Sample is available
2. Favorable price better quality
3.G80 chain
4. CE
Professional lifting 2000kg manual chain block
Product Description
Chain block/hoist parameter
Model |
HS-C 1/2 |
HS-C1 |
HS-C1 1/2 |
HS-C2 |
HS-C3 |
HS-C5 |
HS-C10 |
HS-C20 |
|
Lifting capacity(T) |
0.5 |
1 |
1.5 |
2 |
3 |
5 |
10 |
20 |
|
Lifting Height(M) |
2.5 |
2.5 |
2.5 |
2.5 |
3 |
3 |
3 |
3 |
|
Test Load(T) |
0.75 |
1.5 |
2.25 |
3 |
4.5 |
7.5 |
12.5 |
25 |
|
Headroom min dis (MM) |
255 |
306 |
368 |
444 |
486 |
616 |
700 |
1000 |
|
Max load(Newton) |
221 |
304 |
343 |
314 |
343 |
383 |
392 |
392 |
|
|
Rows of lifting chain |
1 |
1 |
1 |
2 |
2 |
2 |
4 |
8 |
|
Diameter of load chain (mm) |
6 |
6 |
8 |
6 |
8 |
10 |
10 |
10 |
|

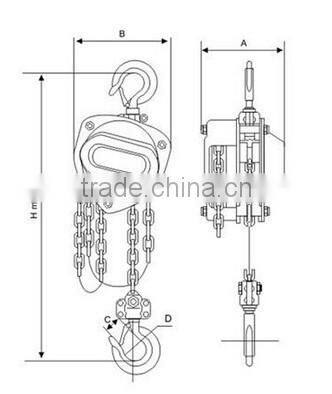

main dimension (MM> |
A |
125 |
147 |
183 |
147 |
183 |
215 |
360.5 |
585 |
B |
111 |
126 |
141 |
126 |
141 |
163 |
163 |
191 |
|
| Features of chain block |
| 1) Capacity from 0.5T to 30T |
| 2) Have certificate of CE |
| 3) Got certificate of ISO9001 |
| 4) Automatic double-pawl braking system |
| 5) Asbestor-free brake discs |
| 6) Drop forged hooks and hook holders to ensure superior quallity and safety |
| 7) Chains are made of special alloy steel that is exclusively |
| 8) More thickness of sheet cover,gear cover and side plates for good quality |
| 9) The static test is 4 times of capacity,and running test is 1.5 times of capacity one by one |
| 10) Famous in Europe and America |
| Features of chain hoist |
| 1.Gear: Symmetrical arrayed high speed synchronous gears, international standard gear steel |
| 2.Chain: Adopts high strength chain and high precision welding technology, fits for gusty overload work |
| 3.Conditions; Multi-angle operation(with 45 degree) |
| 4.Hook: Made of high-class alloy steel, strength and security |
| 5.Switch: Limit switch to protect chain and ensure security |
| 6.Components: Main components are all made of high-class alloy steel, with high precision and security |
| 7.lastic Plating: Advanced plastic plating technology inside and outside |
| 8.Encloser: Made of high-classed steel, more firmly and dexterous |

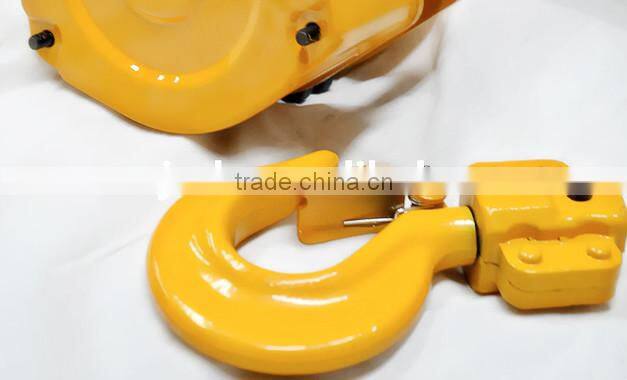

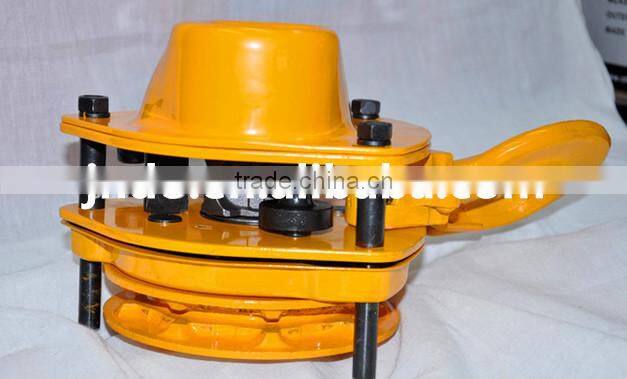

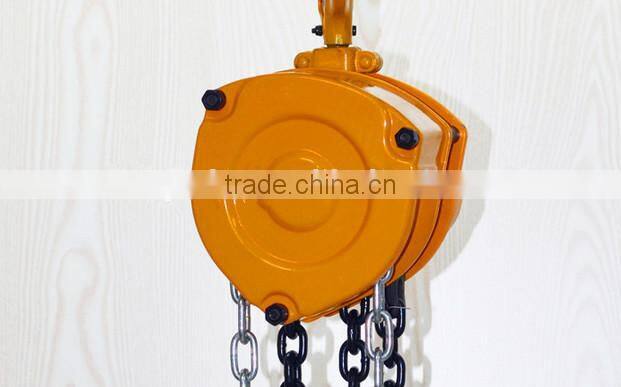

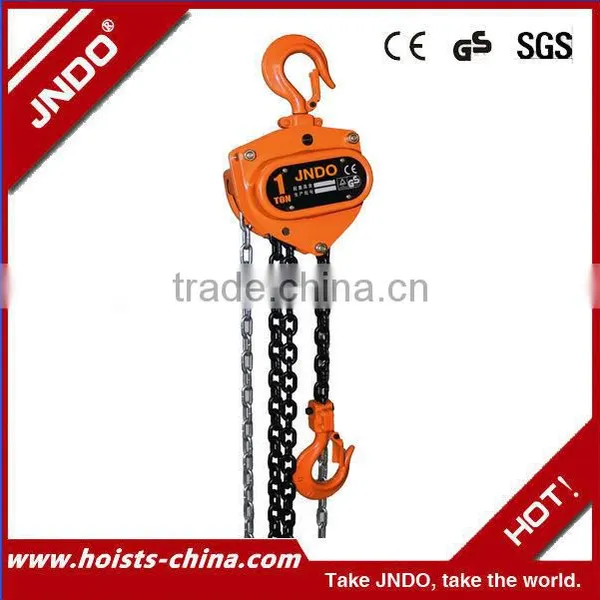

hysical diagram shows:

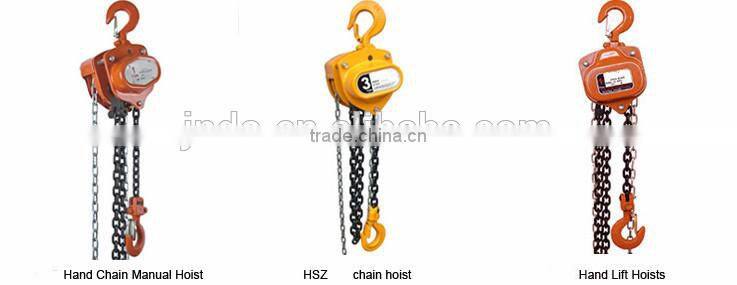

Related product

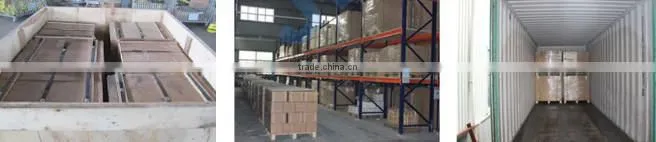

Packaging & Shipping
Our Services
We can provide not only amazing products,but also special ones designed at requests.We'll do our best to meet the need of customers.
