combined manual hand series lifting chain hoist block

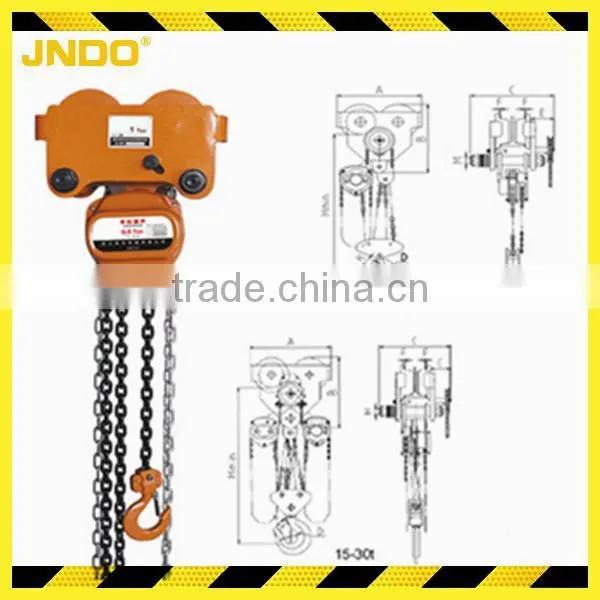

Combined chain hoist
Chain hoists is light weight, suitable for simple manual operation and has a strong safety performance and high safety of the product performance, easy to use security; specifically designed for heavy industry, 360 ° rotating hand chain guide allowed operation from all angles, so that the operator can stay away from the danger zone.
1,Small size, light weight, easy to carry.
2,Used low-alloy steel plate structure , safe, reliable and durable.
3,Use of 800MPa high strength lifting chain, the forging of hook design ensures slowly ramps to prevent overload, high safety, long service life. 3, smooth rotation, high efficiency and small hand pull.
4,Double pawl, double Introduction to structure, more safe and reliable.
5,Compact structure, smooth running, beautiful appearance.
6,Shell material is high quality alloy steel, extremely resistant, high safety performance.
Combined chain hoist is combined with the use of manual single track trolley . Main reason for this is to make use of this more flexible.Especiallysuitfor low headroom and limited space.The clamp width of manual monorail trolley suit for a variety of I-beam, and can adjust the width through nut washer, until the max 300mm, the operation is very convenient.
| Model | HS-0.5 | HS-1A | HS-2 | HS-3 | HS-5 | HS-10 | HS-15 | HS-20 | |
| Rated lifting weight | T | 0.5 | 1.0 | 2.0 | 3.0 | 5.0 | 10 | 15 | 20 |
| Rated load | KN | 6.25 | 12.5 | 25 | 37.5 | 62.5 | 122.5 | 183.75 | 245 |
| Minimum turning radius | M | 0.9 | 1 | 1.2 | 1.5 | 2 | 3 | 4.5 | 4.5 |
| Standard lifting height | M | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
|

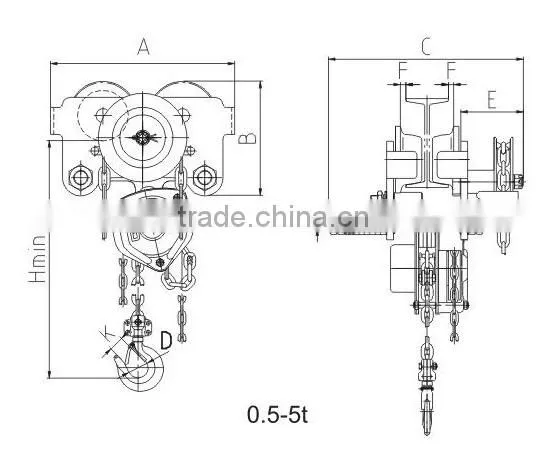

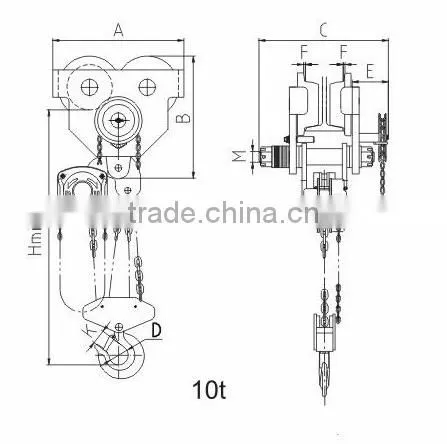

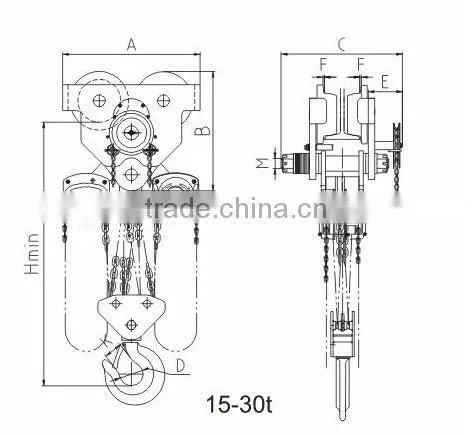

Main pan size (mm) |
A | 238 | 277 | 302 | 363 | 436 | 455 | 642 | 642 |
| B | 137 | 170 | 194 | 230 | 260 | 447 | 537 | 537 | |
| C | 336 | 338 | 346 | 382 | 395 | 475 | 525 | 525 | |
| E | 88 | 88 | 88 | 120 | 120 | 155 | 158 | 158 | |
| F | 3 | 3 | 3 | 3 | 3 | 3-5 | 4-6 | 4-6 | |
| M | M18 | M22 | M27 | M30 | M42 | M48 | M48 | M48 | |
| D | 35 | 35.5 | 42.5 | 50 | 64 | 85 | 110 | 110 | |
| K | 28 | 26 | 32 | 37 | 46 | 64 | 85 | 85 | |
| Hmin | 280 | 337 | 423 | 447 | 616 | 820 | 980 | 980 | |
| Cross steel range | mm | 50-180 | 58-180 | 58-180 | 74-180 | 98-180 | 136-175 | 144-175 | 144-175 |
Combined Hoisting Assemble,good quality,G80 lifting chain,zinc hand chain,hook could move in 360 angle ,all products tight structure and scientific
- With fine adjustment and fittings to the beam, easily adjusted by the round nuts
- Easily adjustable (round nuts) to fit a wide range of beam widths
- Adjustable to fit a wide range of beam profiles
- Chain block with automatic double-pawl braking system, double-cover protection, light weight robust construction
- Low effort to lift maximum load
- Extra thick asbestos free friction discs
- Fully forged hooks are fitted with safety latches
We can provide not only amazing products,but also special ones designed at requests.We'll do our best to meet the need of customers.
