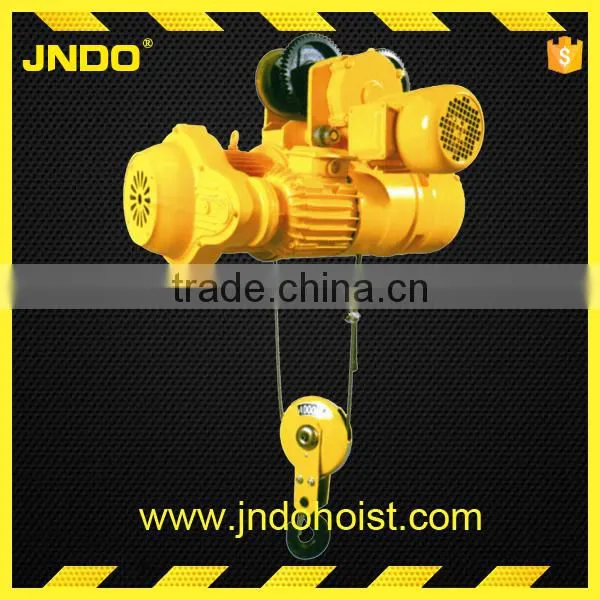

3 ton double speed electric wire rope hoist with trade assurance
1.electric wire rope hoist is a kind of small-lifting equipment
2.it can be mounted on single beam overhead crane ,gantry cranes, jib type CD
3.electric wire rope hoist as only one normal speed which can satisfy normal application
4.It is widely used in factories, mines, harbors, warehouses, cargo storage area and shops 4.
essentially in raising working efficiency and improving working conditions.
Details of electric wire rope hoist :
1. Reducer of electric wire rope hoist
Third-class dead axel helica gear transmission structure is adopted,; gear and gear axel are made of heat treated alloy steel;case and case cover with precise assembly and good seal are made of quality cast iron.The reducer is independent, so its easy to load and unload it.
2. Control Box
It has device with up an down stroke protection of break off limiter and can cut off main circuit in an emergency,which ensures safe operation of electric block.Electric elements are of long service life and operational safety.
3. Steel Wire Rope
electric wire rope hoist steel wire rope which is durable in use.
4. Conical Motor
The hoist motor uses conical motors of relatively stronger starting torque to brake asynchronous motor and does not need extra arrester. The motor s load duration factor is 25%; the motor uses B frade and F grade insulation and its grade of protection isIP44/IP54.
5. Button Switch
Its hand-operated, easy to handle,and has two modes of cord operation and cordless remote control
6.electric wire rope hoist hooks
Load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.
7. Power
Operating voltage 220-440V, 50/60Hz, 3 phase.
Low voltage control 36V is standard.
High efficient energy-saving motor, asbestos free brake system. 2-speed motor available.
Sturdy pole change motors with cylindrical rotors and integrated safety brakes.
8. Limit Switch
Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.
9. Pushbutton Swith
Pushbutton swith is rain-proof plastic for severe impact and corrosive atmosphere resistance and mechanically interlocked
parameter of electric wire rope hoist:
| electric wire rope hoist | |||||||||
| Hoisting Capacity (t) | 0.25 | 0.5 | 1 | 2 | 3 | 5 | 10 | 16 | |
| Hoisting Height (m) | 3/6/9 | 6/9/12 | 6/9/12/18/24/30 | 6/9/12/18/24/30 | 6/9/12/18/24/30 | 6/9/12/18/24/30 | 9/12/18/24/30 | 9/12/18/24/30 | |
| Hoisting Speed(m/min) | 8(0.8/8) | 8(0.8/8) | 8(0.8/8) | 8(0.8/8) | 8(0.8/8) | 8(0.8/8) | 7(0.7/7) | 3.5(0.35/3.5) | |
| Travel speed(m/min) | 20 | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 20/30 | 20 | |
| Rope Dia(mm) | 3.6 | 4.8 | 7.4 | 11 | 13 | 15 | 15 | 17.5 | |
| Hoisting Motor | Power(kw) | 0.4 | 0.8(0.2/0.8) | 1.5(0.2/1.5) | 3.0(0.4/3.0) | 4.5(0.4/4.5) | 7.5(0.8/7.5) | 13(1.5/13) | 13(1.5/13) |
| Rotation Speed(r/min) | 1380 | 1380 | 1380 | 1380 | 1380 | 1400 | 1400 | 1400 | |
| Travel Motor | Power(kw) | 0.06 | 0.2 | 0.2 | 0.4 | 0.4 | 0.8 | 0.8*2 | 0.8*2 |
| Rotation Speed(r/min) | 1400 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 0.8*2 | |
1.The Mini Order?
We can accept only one piece.
2.About sample.
The buyer should offer the cost and freight, if the quantity is big then can turn back all of it after placing the order.
3.About payment.
100% TT as deposite, if amount more than 5000usd.
Or 30%TT as deposite, balance after B/L copy.
4.How long does it take to receive my order?
About 25 Days from we get the down payment, 10 days for sample order.
5.What is the information should I provide when inquiry?
a. How many will I want to buy?
b. How much is the maximum lifting weight of the hoist?
c. How many meters of the lift height?
d. Working voltage? (V,HZ,Phase)
e. Single or double speed of your need?
f. Do you need fixed or mobile hoist?(that's mean with trolley or without trolley,used single/double beam)
6..How will my order shipped?
Usually shipped by sea, small order or urget order we can send you by Air or DHL,UPS or Fedex, after received your agreement.
Above your provide any details will help us to give you a good solution and best price.
