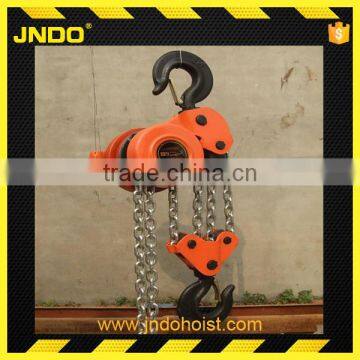

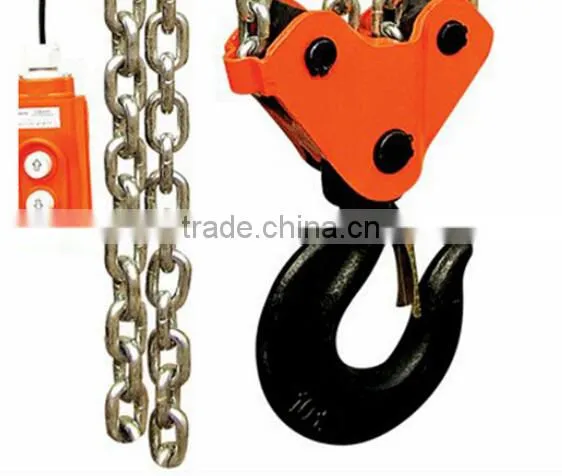

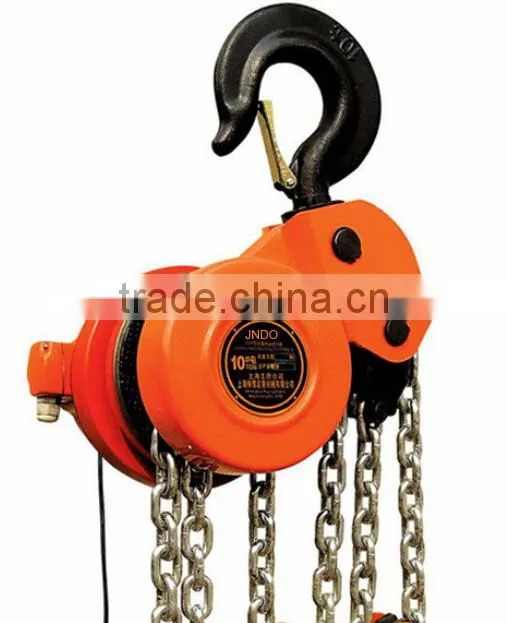

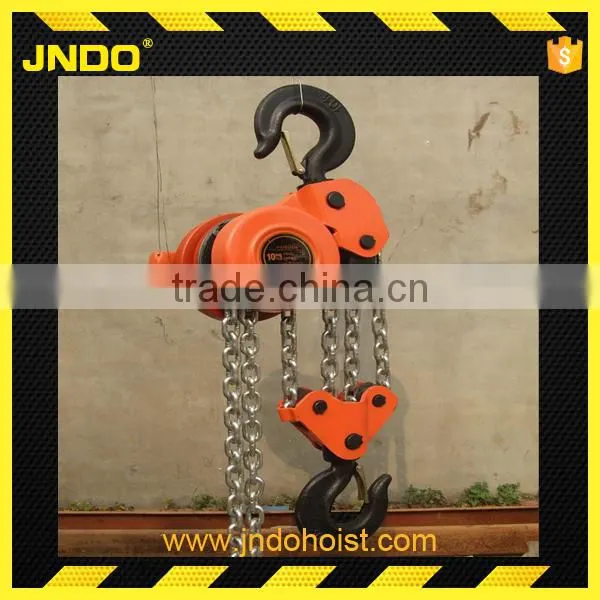

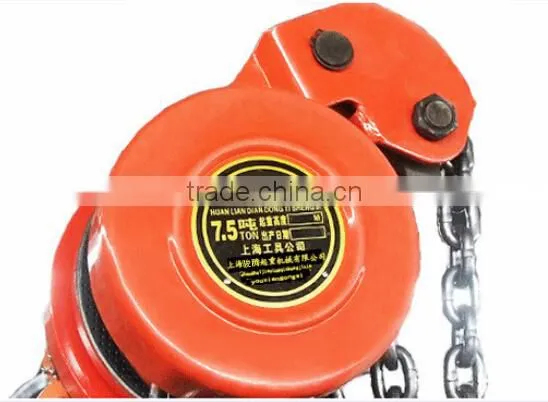

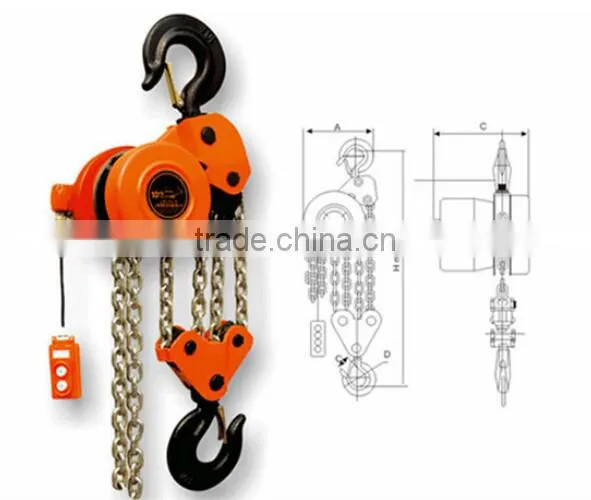

high efficiency dht 5t manual electric chain hoist
Electric chain hoist brief
dht-type electric chain hoist can be installed in the vacant beams, curved rails and fixed lifting heavy objects can also be installed on the cantilever crane rails, for machine parts and fixtures and other heavy lifting.
Applications
dht-type electric chain hoist is a small lifting equipment, widely used in industrial and mining enterprises, warehouses, commercial, medical, and food service.
Electric chain hoist advantage
1.the advantages of electric chain hoist electric hoist and chain hoists in one, using the disc brake motors for power.
2.the planetary gear reducer, compact structure with a small size, light weight, high efficiency, easy to use.
3.the brake reliable, easy maintenance features. For low-speed small stroke material handling, equipment installation, mining and engineering construction and so on.
| Model | DHT1T | DHT1.5T | DHT2T | DHT3T | DHT5T | DHT10T | DHT20T |
| Rated load(T) | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 |
| Testing load(T) | 1.5Gn | 1.5Gn | 1.5Gn | 1.5Gn | 1.25Gn | 1.25Gn | 1.25Gn |
| Motor power(kw) | 0.3 | 0.3 | 0.3 | 0.3 | 0.75 | 0.75 | 0.75 |
| Power supply voltage(v) | 380v,50Hz | ||||||
| Lifting speed(m/min) | 0.9 | 0.9 | 0.46 | 0.46 | 0.46 | 0.46 | 0.46 |
| Min distance between hooks(mm) | 270 | 350 | 380 | 470 | 600 | 700 | 1000 |
| Standard lifting height(m) | 2.50 | 2.5 | 2.5 | 3 | 3 | 3 | 3 |
| Round steel dia.of load chain(mm) | 6 | 3 | 6 | 8 | 10 | 10 | 10 |
| Load chain | 1 | 1 | 2 | 2 | 2 | 4 | 8 |
| N.M(kg) | 26 | 32 | 30 | 37 | 54 | 88 | 195 |
| G.M(kg) | 28 | 34 | 32 | 42 | 66 | 102 | 235 |
| Packing size(cm) | 33*34*34 | 33*34*34 | 33*34*34 | 33*34*34 | 43*36*43 | 50*50*43 | 72*72*85 |
| Extra weight per meter of extra lift(kg) | 0.835 | 1.46 | 1.67 | 2.92 | 4.52 | 9.04 | 18.08 |
