small 500kg electric chain hoist with trolley for sale
HHBB Elcetric chain hoist is an ideal tool to lift heavy objects,load and unload ,maintain equipment,with reliable performance ,convenient operation,advanced structure,small volum and wide application. We are specializes in designing and manufacturing of mendinm top grade manual chain block.lever block,electric chain hoist and some other lifting equipment.
1.electric chain hoist is a new style and small lifting equipment as well as a perfect equipment for lifting, transmission.
2.Electric chain hoist has the traits of reasonable design, advanced structure,remarkable frame, small volume,perfect appearance, big tenacity easy maintenance and durable etc.
3.Electric chain hoist is widely used in factories,warehouse, workshop, harbour, docks, especially in raising working efficiency and improving working condition.
Features of electric chain hoist :

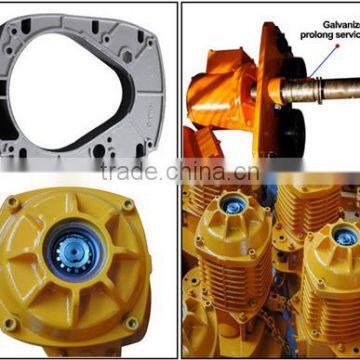

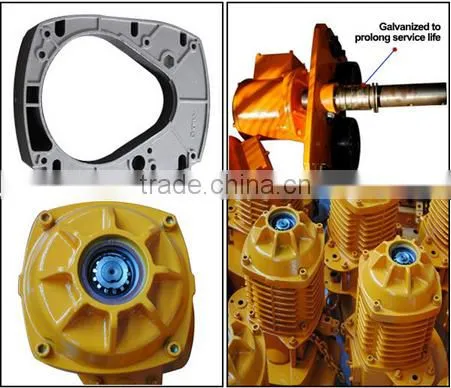

1.Shell
It is made of light aluminum shell, light but hard. The cooling fin is specially designed to ensure quick heat dissipation with the rate up to 40% and continuous service. The integral enclosed structure is applicable to place like chemical plant and electroplate factory.
2.The Electromagnetic Brake
Electromagnetic brake is featured by its unique brake design.It immediately operates when power cuts off.
3.The Mechanical Load Bake
The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.
4.Chain
The hook is constructed of anti-pull and heat-treated steel and heat-treated steel and meets required standards.
The lower-hook can turn 360 degree ;its tongue provides guarantee for safety.
5.Hook and safety tongue
It is hot forging with perfect strength that is hard to break.The operation safety of the lower hook is ensured by its 360 degrees rotation and safety tongue piece.
6.Support frame
The loading support frame consists of two steel plates,which is extremely sturdy.
7.Transformer
24V/36V transformer device .The device is used to prohibit unexpected accidents caused by electric leakage and guarantees the safe uses while raining.
8. Electromagnetic contactor
Electromagnetic contactor can be used safely under high frequency.
9.The back-phase protect
The back-phase protects the motor from overheating in the case of wrong phase position.
10. Limit switch
The power will cut off automatically when the hoist ascends to its limit.
11.The emergency-stop switch (if selected)
This switch is used to stop the hoist in the an emergency. The red and mushroom-shaped switch is located on the top of the switch controller.
When pressed and held down, the power will be cut off and the switch be locked.A clockwise-turn can unlock it and restart the hoist.
12. Customized service:
We can provide not only amazing products,but also special ones designed at requests.We'll do our best to meet the need of customers.
| Model | HHBB | |||||||||
| 0.5-01S | 01-01S | 1.5-01S | 02-01S | 02-02S | 2.5-01S | 03-01S | 03-02S | 03-03S | 05-02S | |
| nominal load (t) | 0.5t | 1t | 1.5t | 2t | 2.5t | 3t | 5t | |||
| lifting speed (m/min) | 7.2 | 6.6 | 8.8 | 6.6 | 3.3 | 5.4 | 5.4 | 4.4 | 2.2 | 2.7 |
| moto power (Kw) | 0.8 | 1.5 | 3.0 | 3.0 | 1.5 | 3.0 | 3.0 | 3.0 | 1.5 | 3.0 |
| rotate speed (r/min) | 1440 r/min | |||||||||
| Motor insulation class | F | |||||||||
| working voltage | 3-Phase 380V 50Hz | |||||||||
| control voltage | 24V / 36V / 48V | |||||||||
| chain black number | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 2 |
| chain size | Φ6.3 | Φ7.1 | Φ10.0 | Φ10.0 | Φ7.1 | Φ11.2 | Φ11.2 | 10.0 | Φ7.1 | Φ11.2 |
| net weight (kg) | 47 | 61 | 108 | 115 | 73 | 115 | 122 | 131 | 85 | 151 |
We can provide not only amazing products,but also special ones designed at requests. We'll do our best to meet the need of customers.
