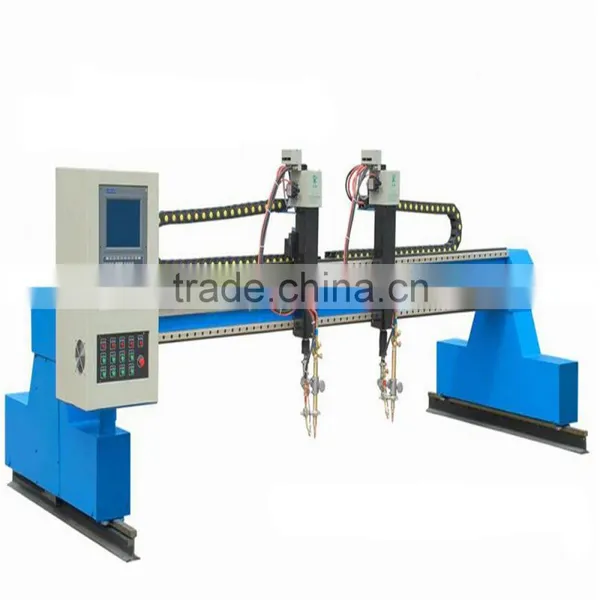

Gantry CNC Plasma/Flame Cutting Machine for Sale
Feature of flame cutting machine :
1. Easy and quick operation
Pioneering field adjustable cutting torch height control, over the cutting torch raised control body design has all the necessary movement and control keys, to mobile operators in the cutting torch counterpoint is very convenient. Humanized design, more efficient operation.
2. Professional design, beautiful and atmosphere, more durable
All keys, all adopt the top design of crystal buttons, relative to other enterprises film button, button always ensure that clear bright, never wear. At the same time, the host body all adopt the technique of the lacquer that bake, colour is beautiful and durable.
3. Simple and straightforward way of graphics programming
Complex graphics CAD design is used in the office, the U disk into the cutting machine, simple graphics can also be on the cutting machine using a very simple and straightforward way programming input directly, such as "straight line, the fourth quadrant, X40, Y30". This way of programming, ordinary operators are very easy to learn.
4. A fool type operating mode
Screen below a reminder of various operating methods, the operator can do not need training, does not need to look at the instructions.
Application of flame cutting machine:
This machine can cut mild steel with flame cutting, and cut high carbon steel, stainless steel,aluminum, copper and other nonferrous metal with Plasma cutting; can configurate as you required.,thus it is widely applied in industries
such as machinery, automobile, shipbuilding, petrochemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
parameter of flame cutting machine:
Cutting Area |
2800*6000mm or customized |
Input Power |
220 ± 10%V AC 50Hz /60 Hz |
Cutting Modes |
Plasma Cutting / Flame Cutting |
Transmission Style |
Rack & Gear |
Drive Style |
Servo Motors Double Sides Drive |
Torch Lift Distance |
200 MM |
Torch & Number |
One Plasma Torch / One Flame Torch |
Plasma Cutting Thickness |
Depend On Plasma source |
FlameCutting Thickness |
5-200 mm |
Torch height control |
Arc Voltage Torch Height Control /Capacitance Torch Height Control |
Cutting Speed |
For Servo Motors: 0-10000 mm / min; For Step Motors: 0-4000 mm / min |
Positioning Accuracy |
≤±0.2mm /m |
Repeatability |
≤±0.3mm /m |
Services of flame cutting machine:
1. The whole machine we offer one year guarantee time free, without consumable parts replacement and man-made fault
2. User-friendly English manual and video CD for machine using and maintaining
3. My company English software can do all kinds of pattern recognition,software upgrading and updating free
4. You are the one we CARE ABOUT! We always offer you our best service no matter when and where.
