Home > Products > Crane accessories > 100ton digital electronic wireless dynamometer

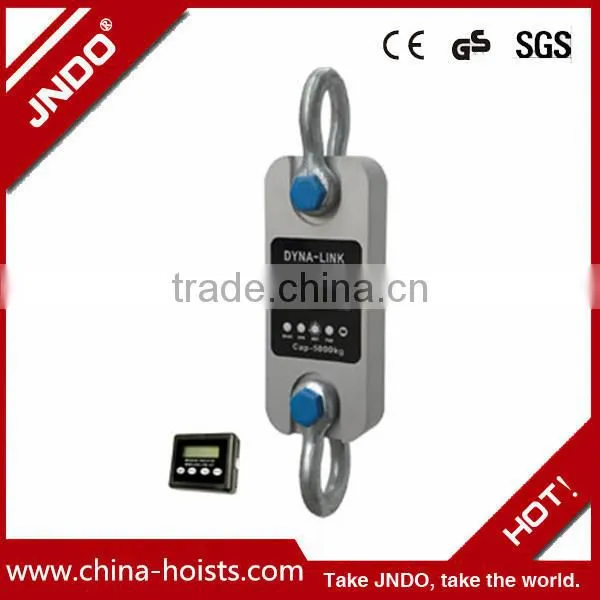

100ton digital electronic wireless dynamometer
- 600 Set / Sets per Month
- QINGDAO
- T/T Credit Card
Product Details
Place of Origin: | Shandong, China | Brand Name: | JNDO | Model Number: | Dynamometer |
Power Supply: | 110V~220V | Display Type: | LCD | Rated Load: | 200T |
Product Description
Specifications
100ton electronic wireless dynamometer1.High precision
2.Indicator with USB function
3.Infrared Remote control easy to calib
100ton digital electronic wireless dynamometer

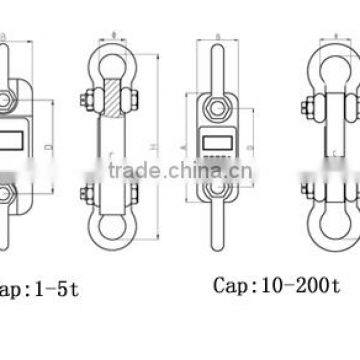

MODEL | A(mm) | B(mm) | C(mm) | D(mm) | φ(mm) | H(mm) | Material |
---|---|---|---|---|---|---|---|
DL-W1-01 | 245 | 112 | 37 | 190 | 43 | 335 | Aluminum |
DL-W1-02 | 245 | 112 | 37 | 190 | 43 | 335 | Aluminum |
DL-W1-03 | 260 | 123 | 37 | 195 | 51 | 365 | Aluminum |
DL-W1-05 | 285 | 123 | 57 | 210 | 58 | 405 | Aluminum |
DL-W1-10 | 320 | 120 | 57 | 230 | 92 | 535 | Alloy Steel |
DL-W1-20 | 420 | 128 | 74 | 260 | 127 | 660 | Alloy Steel |
DL-W1-30 | 420 | 138 | 82 | 280 | 146 | 740 | Alloy Steel |
DL-W1-50 | 465 | 150 | 104 | 305 | 184 | 930 | Alloy Steel |
DL-W1-100 | 570 | 190 | 132 | 366 | 229 | 1230 | Alloy Steel |
DL-W1-200 | 725 | 265 | 183 | 440 | 280 | 1380 | Alloy Steel |
Specification of Wireless tension link:
MODEL | Max. capacity(kg) | Min. weigh(kg) | Division(kg) | Total dispay counts (n) |
---|---|---|---|---|
DL-W1-01 | 1000/2200 | 10/20 | 0.5/1 | 2000 |
DL-W1-02 | 2000/4400 | 20/40 | 1/2 | 2000 |
DL-W1-03 | 3000/6600 | 20/40 | 1/2 | 3000 |
DL-W1-05 | 5000/1100 | 40/80 | 2/4 | 2500 |
DL-W1-10 | 10000/22000 | 100/200 | 5/10 | 2000 |
DL-W1-20 | 20000/44000 | 200/400 | 10/20 | 2000 |
DL-W1-30 | 30000/66000 | 200/400 | 10/20 | 3000 |
DL-W1-50 | 50000/110000 | 400/800 | 20/40 | 2500 |
DL-W1-100 | 100000/220000 | 1000/2000 | 50/100 | 2000 |
DL-W1-200 | 200000/440000 | 2000/4000 | 100/200 | 2000 |
Description of wireless tension link
Profile: DL-W1 wireless dynamometer is an extremely well-built instrument for industry use ,as a standard wireless tool offer universal applications,the indicator 180 have USB port, Communicate with PC, Solve many laptops without serial port problem. DL-W1 wireless dynamometer is microprocessor controlled for high precision accuracy, calibration is easier with Palm size 180 indicator.
1.Body protection: Aluminum and alloy steel capacities are powder coated.
2.Accuracy: 0.05% for 1-50t, 0.1% for above 50t capacity.
3.Units: Units are clearly display on the screen, available in the following measurment reading: kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN).
4.Shackles: High tension industrial standard G2130 anchor shackle bows, galvanized finish.
5.Gravity regulation: The acceleration of gravity can be regulated through indicator according to different places value.
6.Functions: wireless indicator with many functions: Zero, tare, Low battery warnings, peak hold, overload warning. User calibration(with password).
7.Set-Point: Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.

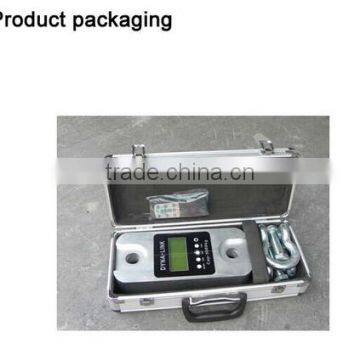

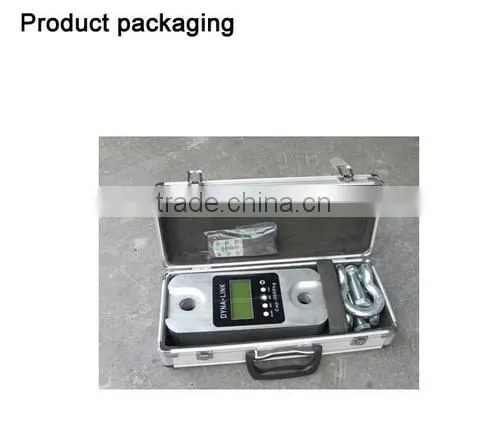

8.Package: Packed with carry case, easy to bring.
9.Indicator key: 4 local mechanical keys:”ON/OFF”,”ZERO”,”PEAK” and ”Unit Change”.
Main technical data :
Body display | 25mm (1’’) 5digits LCD with backlight |
Indicator display | 12mm(0.5’’) 5digits LCD with backlight |
Power on zero range | 20% F.S. |
Manual Zero Range | 4% F.S. |
Tare Range | 20% F.S. |
Stable Time | ≤5seconds |
Overload Indication | 100% F.S. + 9e |
Max. Safety Load | 125% F.S. |
Ultimate Load | 400% F.S. |
Battery Life | ≥50 hours |
Body Battery | “LR6(AA)”size alkaline batteries. 1.5V*3 |
Indicator Battery | USB power supply, lithium battery optional |
Operating Temp | - 10℃ ~ + 50℃ |
Operating Humidity | ≤85% RH under 20℃ |
Wireless Distance | Min. 80m(default) [200m(optional)] |
Wireless Frequency | 2.4GHz(default),433MHz,860MHz(optional) |
We can provide not only amazing products,but also special ones designed at requests.We'll do our best to meet the need of customers.
