High temperature rotation vacuum sintering furnace
1. Application
This furnace is mainly used for sintering and heat treatment for tungsten, molybdenum, other refractory metals, alloys and non-metallic material in vacuum (such as hydrogen or a protective atmosphere).
2. Main functions
Powder materials rotating heating sintering in vacuum or atmosphere below 2400°C
Temperature control can be adjustable, and the temperature can remain constant in a period.
3. Main configuration and technical requirements
3.1 Working temperature: 1200 °C-2,400°C±15°C
3.2Temperature uniformity≤±15°C
3.3 Limit vacuum: According to the process craft
34 pressure rise rate: 0.5Pa/h.
3.6 workspace size: (according to user requirements)
4. Discharging method
Top discharging or bottom discharging.
5. High temperature rotation sintering craft
Because of some special sintering materials, the furnace chamber cannot make heat insulation for some carbon materials, and the heat insulation effect cannot be good even if you use the ceramic crucible, as a result, the final product is easily deformed. In order to improve the temperature uniformity of high temperature zones, our company develop a special process craft for high-temperature rotation sintering, patent No.: ZL 2012 2 0440362.9,we recommend the customer to use this kind furnace when you need better temperature uniformity .

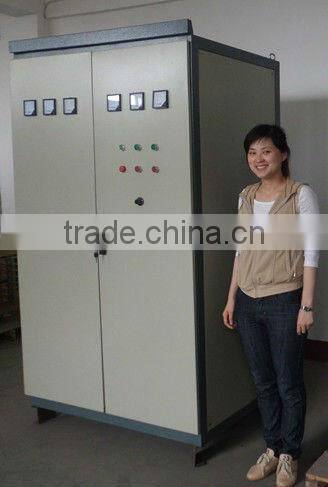

Power supply cabinet for vacuum sintering furnace

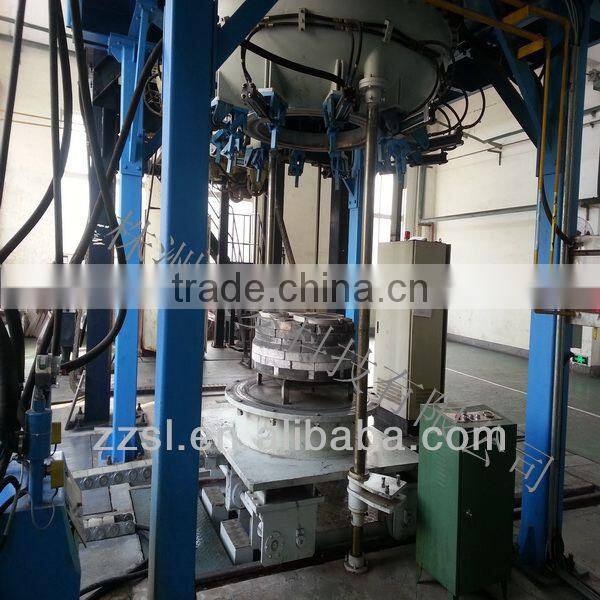

Vacuum sintering furnace
Our factory is specialized in processing induction heating equipment for more than 10 years. We have large equipment design, research and manufacturing ability. What’s more, we cooperated with several china famous key laboratories-States Key Laboratory for Powder Metallurgy, State Key Laboratory for cemented carbide and State Key Laboratory for rare earth and so on.
We have customers all over the world, such as Singapore Institute of Manufacturing Technology, Aluminum Corporation of China, Sany Group, Guangxi yuchai group, Valin Group, Central South University, China Shipbuilding Industry Corporation, China railway track, General Research Institute for Nonferrous Metals (GRINM) and so on. The main products have been exported to Middle East, Southeast Asia, Japan and other countries.
ZhuZhou Shuang Ling Technology Co., ltd. follows the tenet of "survival by high quality, credibility and innovation". We sincerely welcome both domestic and overseas customers to further develop business relationship and partnership for prosperous futures.
