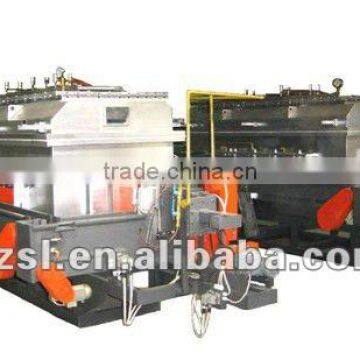

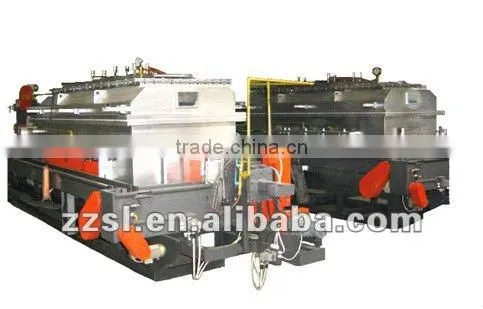

High temperature molybdenum wire furnace
1. Application
High temperature molybdenum wire furnace is the advanced metallurgical equipment for powder carbonation. It has many advantages has high degree of automation, high temperature control precision and high productivity, low energy consumption.
The Furnace chamber is made of corundum material, molybdenum wires will be hanged on two sides of the outside of furance chamber, the molybdenum wires is easy to exchange and have no effection on furnace tube maintenance. The furnace temperature can reach 1650°C, with Hydrogen as the protection mode.The molybdenum wires life is more than 12 months, furnace tube life is more than 10 months.
The furnace has automatic loading and unloadint system, the negative pressure emergency boat for nitrogen control. It is the best furnace to process middle and small tungsten carbide powder.
2. Features
a. The equipment use intelligent temperature controller, 3 zones heating with best temperature control precision;
b.Uniform temperature;
c.Long life, high thermal efficiency
d.Low energy consumption.
e. Program control with high degree of automation.
3. Main technical parameters:
Power(KW) | 3x30 |
Max temperature(°C) | 1650 |
Working temperature(°C) | 1600 |
Production capacity(Ton/day) | 1ton |
Temperature control zone | 3 zones |
Furnace chamber size (WxHxL) | 150x230x1500 |
Furnace chamber material | Corundum Al2O3≥98% |
Thermocouple | 3 pieces |
Heating element | Molybdenum wire |
Working gas(H2) | 10000 Pa |
Protection gas(N2) | 10000 Pa |
Cooling water | 400000 Pa |
overall dimension (LxWxH) | 5000x1500x1800 |
Weight(kg) | 15000 |
