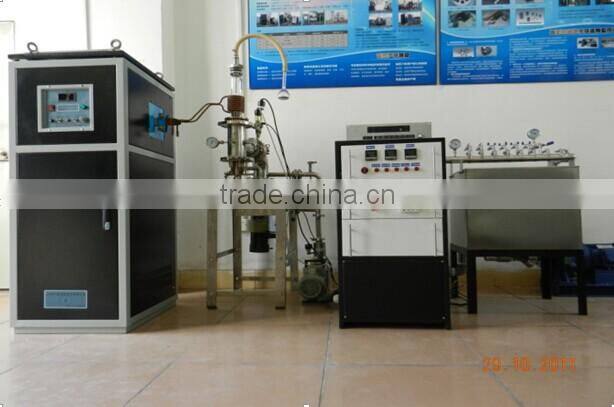

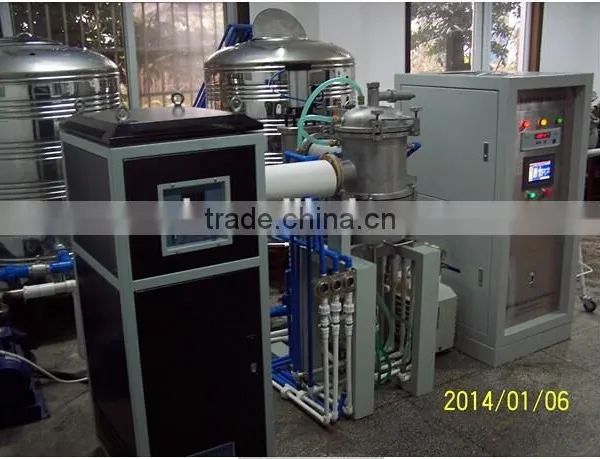

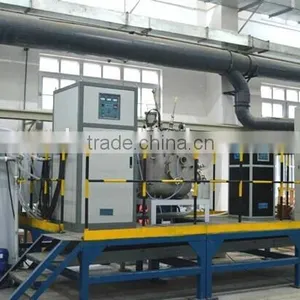

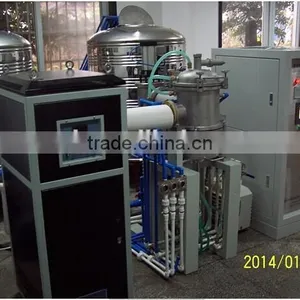

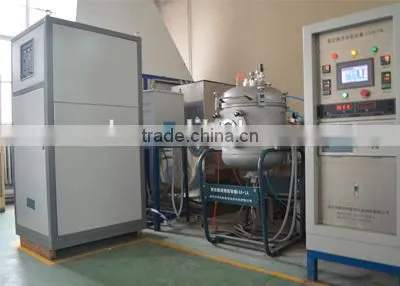

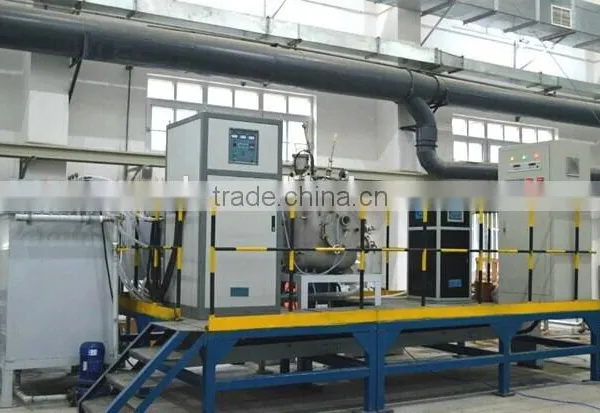

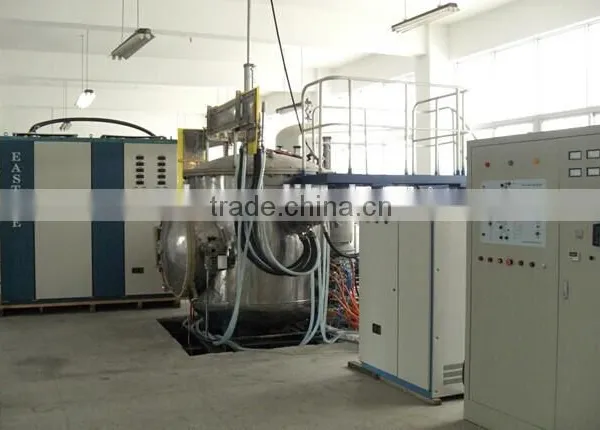

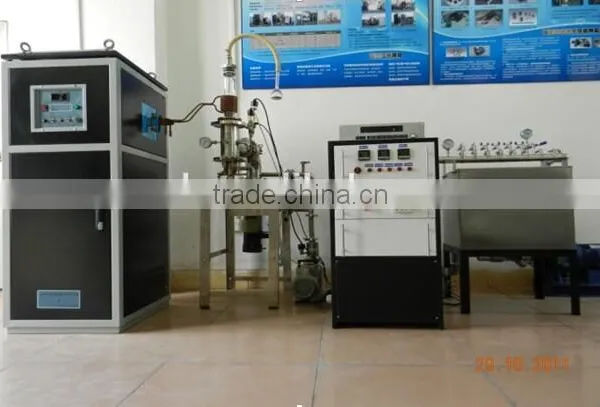

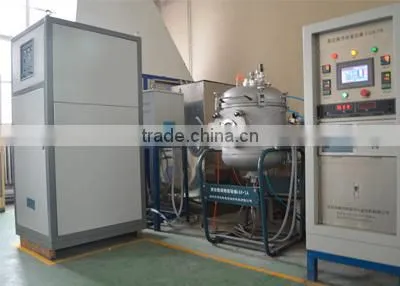

directional solidification cold crucible induction levitation melting furnace
1.Large capacity
2.Highest temperature1800°C
3.Smelting all kinds materials
4.Simple operation
1.Application
1. Reactive Metals and Alloys
i. e. RE metals & alloys, Ti & Ti alloys precision casting, Alkaline- earth metals, etc
2. Ultrapure Metals and Alloys
i. e. Ultrapure sputtering target and coating materials, Solar polycrystalline silicon, Ultrapure metal 6N~8N, etc
3. High Grade Alloys and Intermetallic Compound
i. e. Rare earth giant magnetostrictive material, Functional materials, Mircoalloy materials;
4. Refractory Metals and Alloys, Precious Metals and Alloys
i. e. Cr, Zr, Hf, V, Nb, Mo, Ta, PT, Rh, IR and alloys, etc
5. Advanced Materials Research
i. e. Preparation of high grade ultrapure metals, alloys and intermetallic compounds and with more accurate and homogeneous composition, remove impurity or other elements Interference, and so on.
2.main technical parameters:
Main Technical Parameters:
(1)Main Structure: Furnace Chamber, Cold Crucible, Induction Coils, Power, Operating system, Vacuum System, Cooling System, Control System, Casting System, Mould;
(2)Ultimate Vacuum: 6.7X 10-3 PA ~ 6.7X10-6 PA;
(3)Melting Temp. 2000 Celsius~ 3100Celsius;
(4)Power: Supersonic frequency power;
(5)Self cooled cold crucible protection, Power protection &Furnace protection
(6)Casting System: Tilt casting, Bottom-Pouring, Suction casting, Centrifugal casting, customizable;
(7)Cooling System: Closed circuit cooling circulating water system consists of pure water, High pressure pump, Water chiller, Water storage tank, and so on;
(8)Operating System: Pneumatic + Power driven, customizable;
(9)Control system: PLC + Touch screen or Infrared temperature measurement + computer programmed control, customizable; .
3.Melting Furnace Types:
1. Standard Types of Vacuum Cold Crucible Induction Levitation Melting Furnace:
Melting capacity 100g~50kgs;
2. Special Types of Vacuum Cold Crucible Induction Levitation Melting Furnace:
Combined with different technologies like Titanium precision casting, zone refining, directional solidification, ingot draw continuous, etc.
Model | Rated capacity (KG) | Limit vacuum (Pa) | Highest temperature (°C) | furnace material |
XFW-0.5 | 0.5 | 6.67×10-3 | 1800 | double stainless steel |
XFX-1 | 1 | 6.67×10-3 | 1800 | double stainless steel |
XFX-3 | 3 | 6.67×10-3 | 1800 | double stainless steel |
XFZ-5 | 5 | 6.67×10-3 | 1800 | double stainless steel |
XFZ-10 | 10 | 6.67×10-3 | 1800 | double stainless steel |
XFD-20 | 20 | 6.67×10-3 | 1800 | inner stainless steel ,outside carbon steel |
XFD-50 | 50 | 6.67×10-3 | 1800 | inner stainless steel ,outside carbon steel |
Other specification can be made according to the requirement
