KGPS and IGPS Industrial power supply for heating and smelting furnace
1.Advanced technology and design;
2.Digital control;
3.Perfect protect system;
4.Full module structure

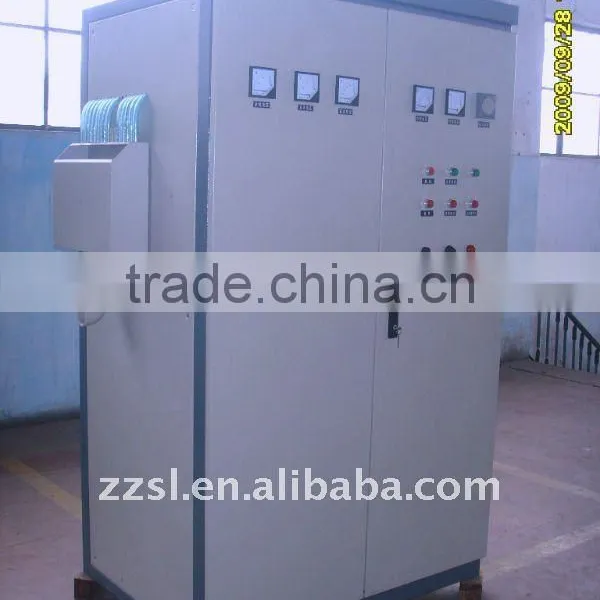

KGPS thyristor IF power supply
Full digital control,high precision and high reliability.
Voltage & Current double-closed-loop control system; It can ensure the system operated stably.
Impeccable protection system; It provide the protection of over-voltage, over-current, phase loss, shortage of hydraulic press, water over- temperature and so on
It makes the operating efficiency and power factor of the set of the equipment reach the maximum value.
It realized the closed-loop control of external temperature convenient.
Power supply starting performance being 100%;
Full-module structure is adapted to minimized volume of the device and improves its reliability.
Excellent characteristics of IGBT can make the equipment operated in the frequency scope of 0.5 kHz-200 kHz.
Specifications
Power Model | Input (V) | Power (KW) | Frequency (KHZ) | Cool Water (T/h) | Water (Mpa) | Out-Dimension (mm) | (KG) |
KGPS60 |
| 60 | 1-10 | 2.5 | 0.25 | A | 400 |
KGPS100 |
| 100 | 1-10 | 3 | 0.25 | A | 480 |
KGPS160 |
| 160 | 1-8 | 5 | 0.3 | B | 600 |
KGPS250 |
| 250 | 1-8 | 5 | 0.3 | B | 700 |
KGPS400 |
| 400 | 1-8 | 6 | 0.4 | C | 850 |
KGPS500 |
| 500 | 1-6 | 6 | 0.4 | C | 1000 |
KGPS750 |
| 750 | 1-6 | 8 | 0.4 | C | 1250 |
KGPS1000 |
| 1000 | 1-4 | 10 | 0.4 | D | 1250 |
KGPS1500 |
| 1500 | 1-4 | 12 | 0.4 | E | 1750 |
KGPS2000 |
| 2000 | 1-2.5 | 18 | 0.4 | E | 2000 |
KGPS2500 |
| 2500 | 0.5-2.5 | 20 | 0.4 | E | 2500 |
KGPS3200 |
| 3200 | 0.5-1 | 35 | 0.4 | E | 2800 |
KGPS6500 |
| 6500 | 0.4-0.5 | 50 | 0.4 | F | 3500 |
IGPS transistor super audio induction heating power
Advanced German technology, digital control, fiber signals.
Double circuit resonance method: series and parallel resonant, adapt to all kinds of heating process.
High efficiency,Transistors power efficiency may reach above 95%, energy-saving 45%, than tubes power than SCR intermediate frequency energy-saving 15% lower cost.
Frequency range is wide,Power can be in any medium frequency and super audio frequency between job, do not need to adjust circuit; Can satisfy various process requirements.
Load matching is simple,Setting frequency automatic scanning system, and load matching is simple.
High start success rate,It can start frequently, safe and reliable, start-up success rate as high as 100%.
Complete safeguarding system,With water temperature, flow, current minimum and maximum values such as protection, work process adopting PLC monitoring
