Product Details
Place of Origin: | Hunan, China | Brand Name: | ZZSL | Model Number: | ZZSL |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Steel pipe electric pipe bender

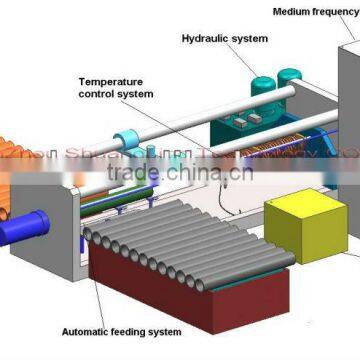

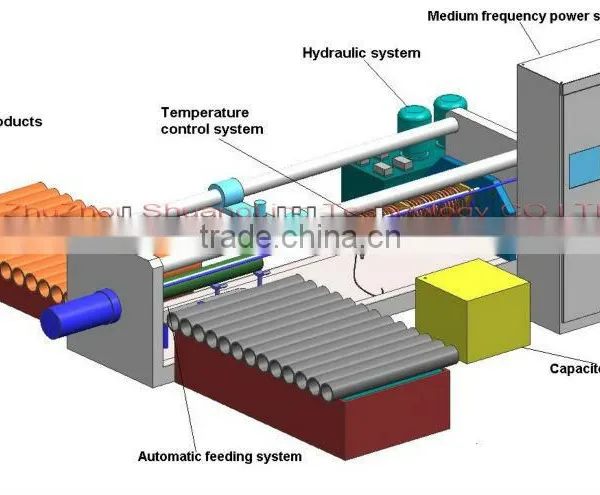

SLZPW intermediate frequency heating pipe bender
SLZPW series of intermediate frequency heating pipe bender, the intermediate frequency induction heating. The tubes and pipes are bending under local heating condition.
The machine can bend various types of pipes,such as round pipe, square steel ,channel steel ,joist steels and so on.The equipments is widely used in electric power industry, shipbuilding, chemical industry, metallurgy, boiler , heavy machinery and other departments.
Now our company develop the large pipe bender, the maximum radian can be infinite,it fills the blank in the industry.The large pipe bender is mainly used for all kinds of large steel structure workshop, the big bend standing tent and so on.
Model | SLZPW-219 | SLZPW-325 | SLZPW-426 | SLZPW-630 | SLZPW-900 | Unit | |
Bending pipe diameter | Φ219 | Φ325 | Φ426 | Φ630 | Φ900 | mm | |
Max bending wall thickness | 18 | 25 | 30 | 40 | 60 | mm | |
Bending Angle | 0°~180° | 0°~180° | 0°~180° | 0°~180° | 0°~180° | Degrees | |
Bending radius | 3D~8D | 3D~8D | 3D~8D | 3D~8D | 3D~5D |
| |
Main cylinder max trip | 3.2 | 3.2 | 4.2 | 4.2 | 4.2 | m | |
SCR intermediate frequency devices
| Model | KGPS-160 | KGPS-250 | KGPS-350 | KGPS-500 | KGPS-1000 |
|
Power | 160 | 250 | 350 | 500 | 1000 | KW | |
Frequency | 1000 | 1000 | 1000 | 1000 | 1000 | Hertz | |
The advancing speed of tube | 0.25~3 | 0.25~3 | 0.25~3 | 0.25~3 | 0.25~3 | mm/sec | |
Speed of chuck returning | Rapid | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | meter/min |
Hydraulic system work pressure | 10 | 10 | 14 | 18 | 21 | MPa | |
Weight of machine | 15 | 25 | 30 | 40 | 45 | Ton |
Specifies
1.All specifications can be made according to buyer's requirement .
2.The bending radius can be made according to buyer's requirements, maximum radius can achieve infinite.
3.The Lord oil cylinder of equipment is the standard configuration trip,it can be made according to buyer's request .
4, The data in the table is only for reference, the actual item is the standard.

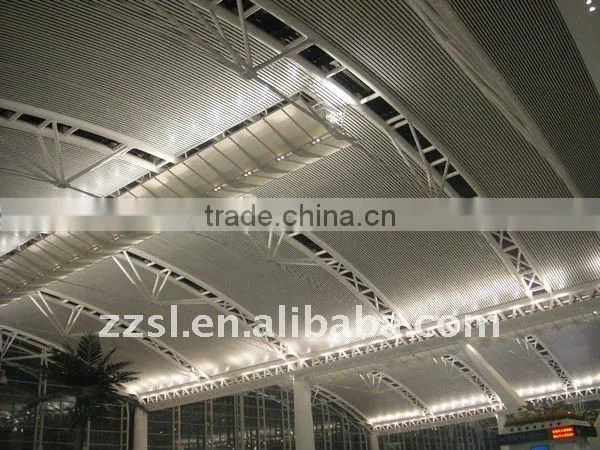

Sucessful projects
