219- 1620mm pipe bending machine induction heat pipe bender
SL series of intermediate frequency heating pipe bender, the intermediate frequency induction heating. The tubes and pipes are bending under local heating condition.
The machine can bend various types of pipes,such as round pipe, square steel ,channel steel ,joist steels and so on.The equipments is widely used in electric power industry, shipbuilding, chemical industry, metallurgy, boiler , heavy machinery and other departments.
According to different pipe outer diameter(such as 219,325,426,530,820,1219,1620mm), there are different models for choose.
Pls see detailed specifications of the model SL-HB-820 hot induction pipe bending machine as follows:
Specifications |
|
Max pipe outer diameter | 820mm |
Max pipe wall thickness | 50mm |
Pipe bending radius | 3D-3500mm |
Hydraulic system work pressure | 21 Mpa |
Max bending Angle | 180degree |
Bending angle accuracy | ±0.5degree |
Ovality | ≤8% |
Pipe thinning after bending | ≤12.5% |
Bending speed adjustment range | 0.25-3 mm/s |
Power of IF Power Supply Cabinet | 700KW |
Note:
1.All specifications can be made according to buyer's requirement .
2.The bending radius can be made according to buyer's requirements, maximum radius can achieve infinite.
3.The Lord oil cylinder of equipment is the standard configuration trip,it can be made according to buyer's request .
4, The data in the table is only for reference, the actual item is the standard.
our company develop the large pipe bender, the maximum radian can be infinite,it fills the blank in the industry.The large pipe bender is mainly used for all kinds of large steel structure workshop, the big bend standing tent and so on.

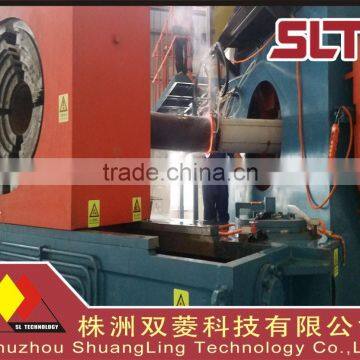

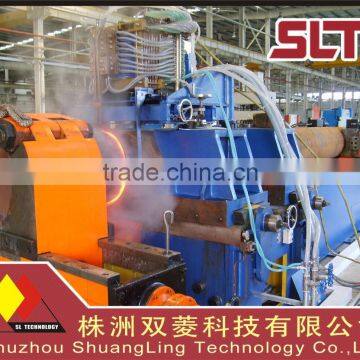

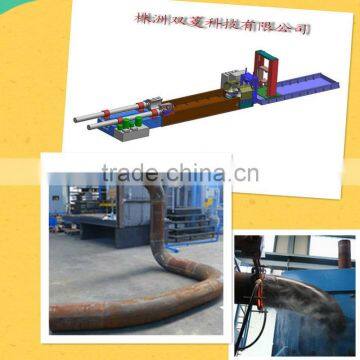

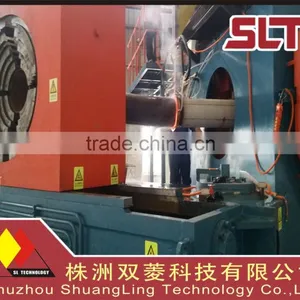

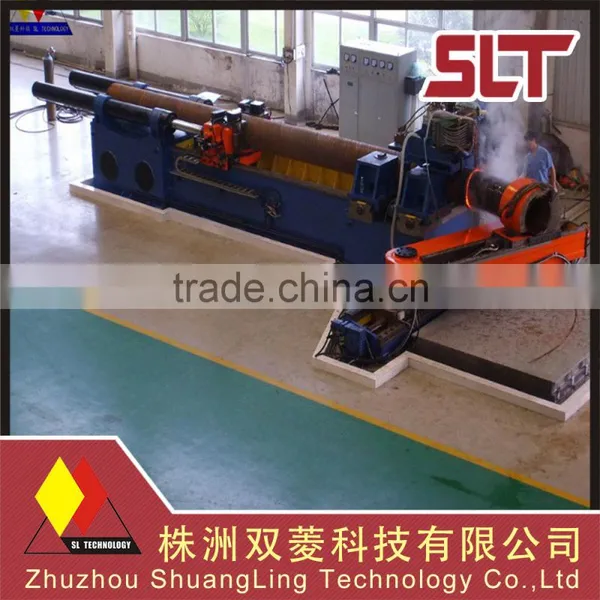

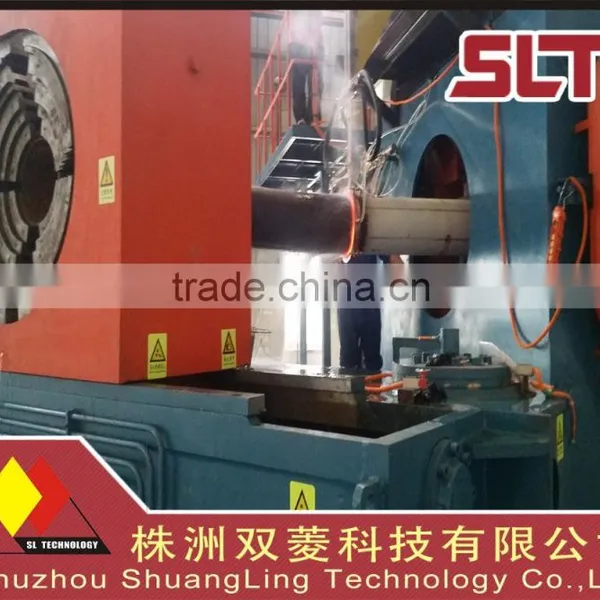

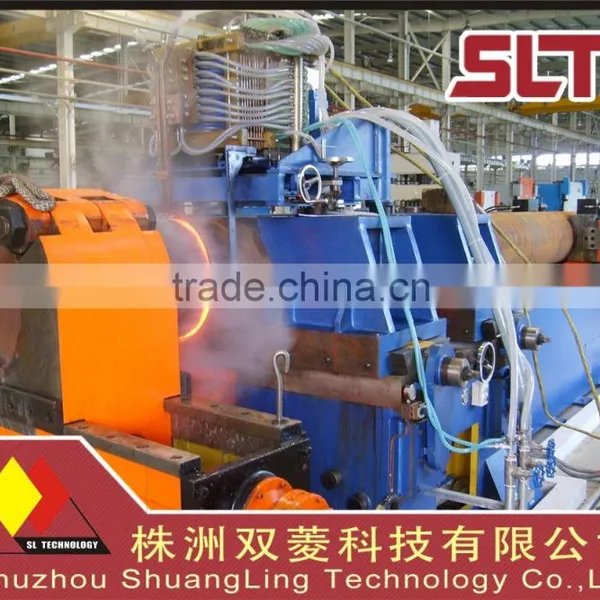

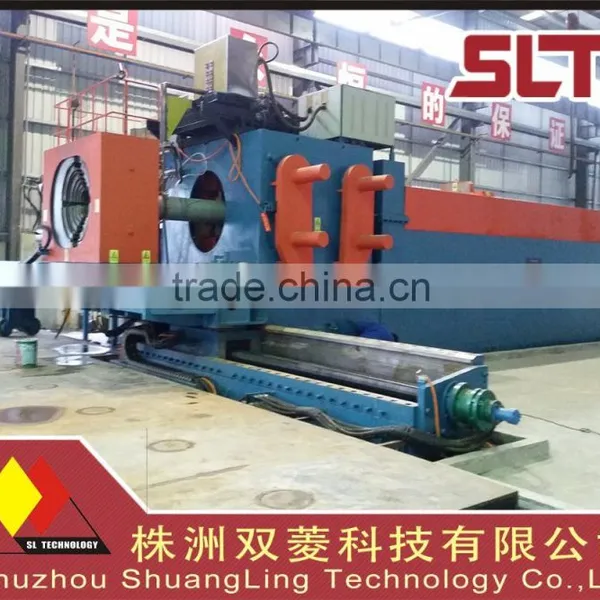

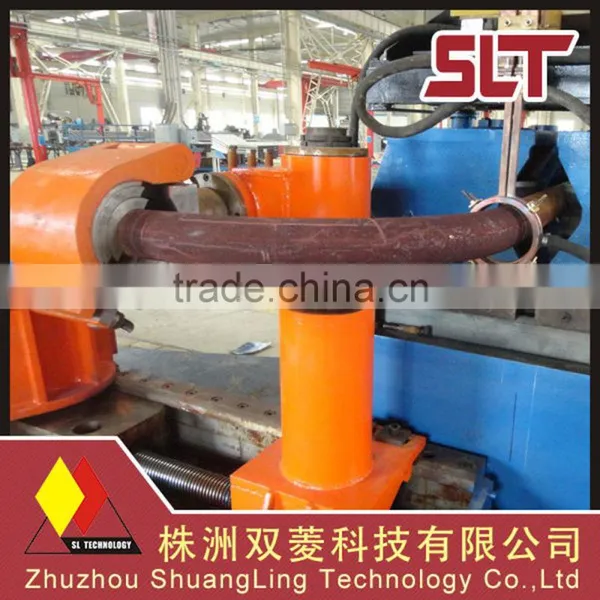

Total set hot induction pipe bending machine photos
Description of Main parts of hot induction pipe bending machine
