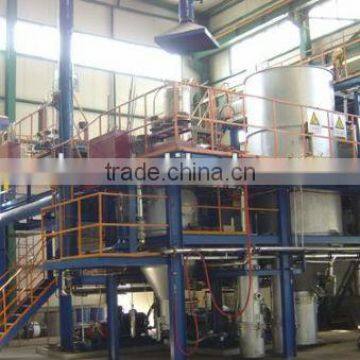

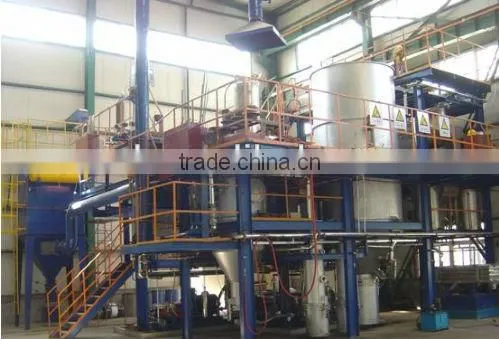

Solder powder atomizer system with powder less than 10um
- 10 Set / Sets per Month
- CHINA
- T/T
Product Details
Condition: | New | Type: | Induction Furnace | Usage: | Other, metal solder powder atomizer equipment |
Place of Origin: | Hunan, China | Brand Name: | ZZSL | Model Number: | ZZSL-WHZF |
Voltage: | standard | Power(W): | standard | Dimension(L*W*H): | optional |
Weight: | 5000kg | Certification: | CCC,CE | Warranty: | one year |
After-sales Service Provided: | No overseas service provided |
Product Description
Solder powder atomizer system with powder less than 10um
1. Application and principle

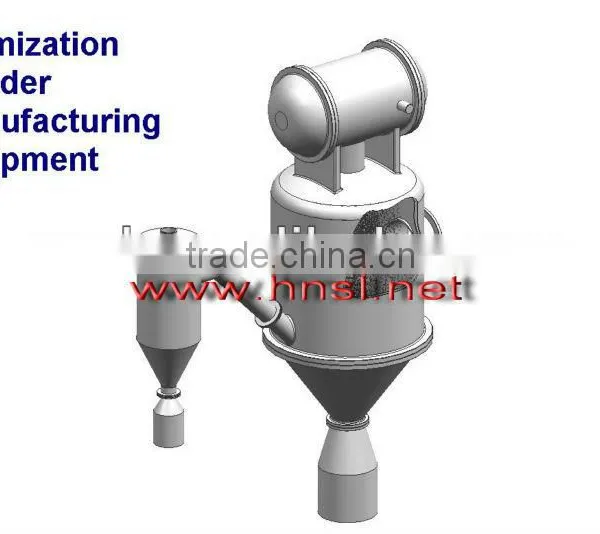

The atomization powder making method has many advantages, such as simple operation, it is easy for workers to master the process technology. The material will not be oxidation, and the equipment with higher automation ability. At first, the alloy (metal) is melting in induction furnace, then the melt is poured into the heat preservation crucible and go into diversion tube and nozzle. The metal liquid will be atomizing by high pressure fluid (or gas flow),the metal powder after atomization solidification and go down in the atomization charmber. At end it will be collected in the powder collection charmber.
2.Advantages
2.1 The equipment use high quality steel structure, with high efficiency and long life;
2.2 Easy to operate, less burning waste, safe operation
2.3 The melt is mixed by electromagnetic force, with uniformity temperature and components.
2.4 High melting speed, high efficiency, good particle size distribution
2.5 We can adjust the craft parameters and change the atomization craft to make different powder particle shape, size, structure and size points in a wide range.
3.Parameters
3.1 Capacity of one furnace 5-1000, melting power 500kw
3.2 Powder size 80mesh (it can adjust to 500mesh)
3.3 Powder shape spherical
34 Melting temperature>1700 °C
3.5 The highest pressure of atomization system 20Mpa~100Mpa
3.6 Atomization materials iron, copper, silver, stainless steel, copper matrix, and iron base alloy
4. Accessories

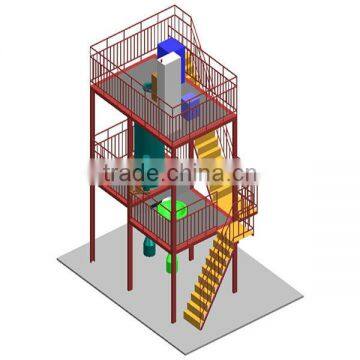

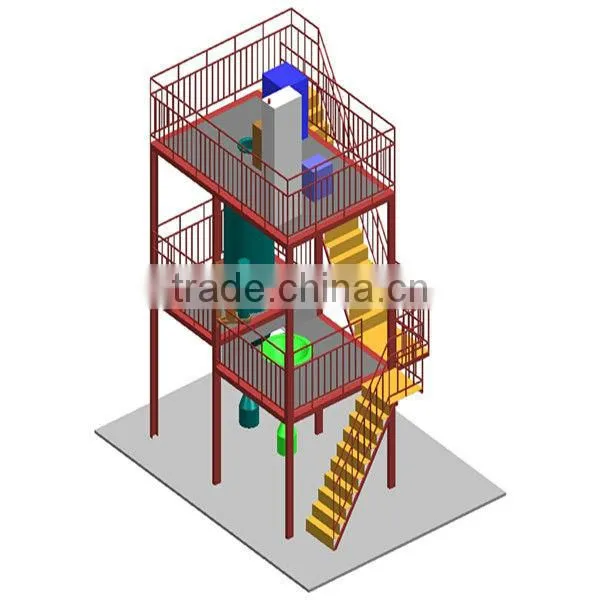

The whole equipment include all accessories as following:
Melting furnace 1set
Heat preservation furnace 1set
Atomization chamber 1set
Collection chamber 1set
gas atomization system 1 set
Steel frame 1set
