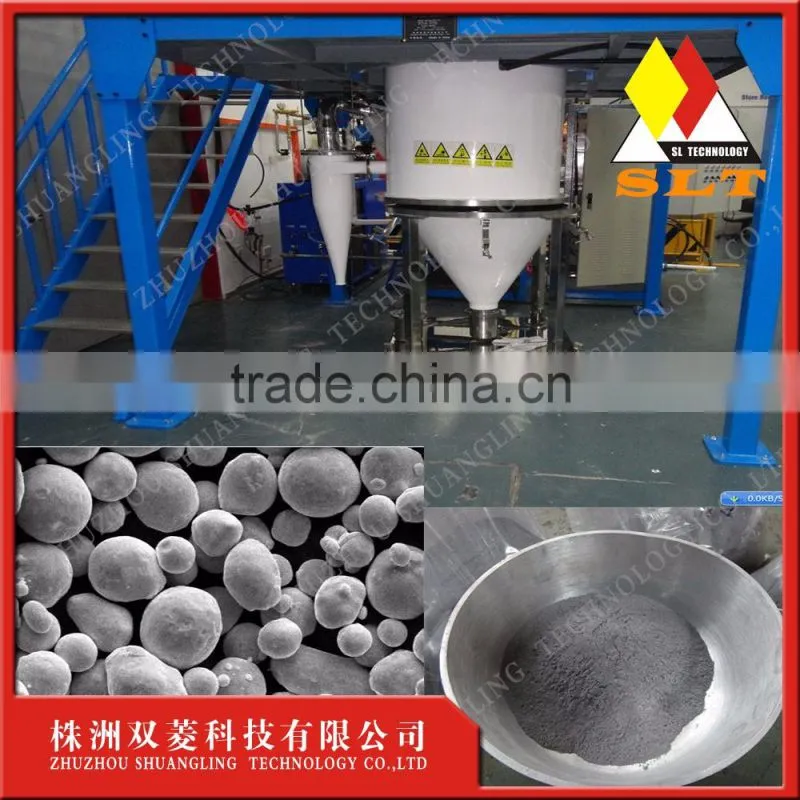

Making 3D print powder gas atomization equipment

As you know, 3D print powder is the essential materials for 3D printer, our company's gas atomization equipment is widely used for producing 3D Print powder, if you want enter into this industry, pls feel free to contact with me.

metal powder atomizer system /metal powder gas atomization equipment

1. Application and principle

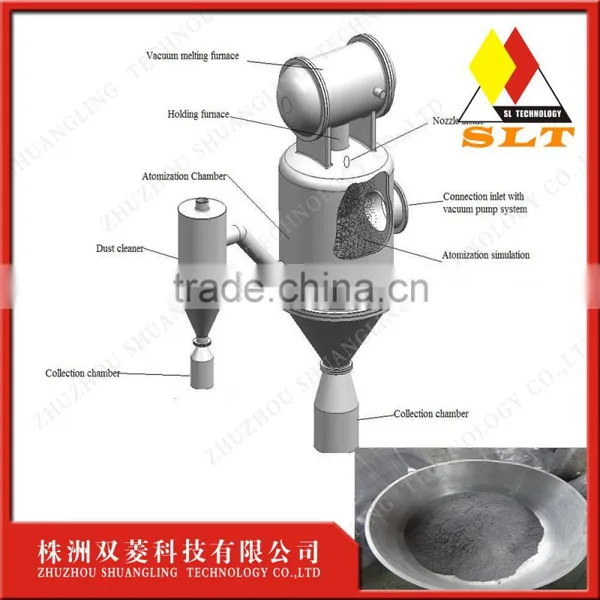

The atomization powder making method has many advantages, such as simple operation, it is easy for workers to master the process technology. The material will not be oxidation, and the equipment with higher automation ability. At first, the alloy (metal) is melting in induction furnace, then the melt is poured into the heat preservation crucible and go into diversion tube and nozzle. The metal liquid will be atomizing by high pressure fluid (or gas flow),the metal powder after atomization solidification and go down in the atomization charmber. At end it will be collected in the powder collection charmber.

2.Advantages

2.1 The equipment use high quality steel structure, with high efficiency and long life;
2.2 Easy to operate, less burning waste, safe operation
2.3 The melt is mixed by electromagnetic force, with uniformity temperature and components.
2.4 High melting speed, high efficiency, good particle size distribution

2.5 We can adjust the craft parameters and change the atomization craft to make different powder particle shape, size, structure and size points in a wide range.

3.Parameters

3.1 Capacity of one furnace 5-1000, melting power 500kw

3.2 Powder size 80mesh (it can adjust to 1025mesh)

3.3 Powder shape spherical

34 Melting temperature>1700 °C

3.5 The highest pressure of atomization system 20Mpa~100Mpa

3.6 Atomization materials iron, copper, silver, stainless steel, copper matrix, and iron base alloy

4. Accessories

The whole equipment include all accessories as following:

Melting furnace                     1set

Heat preservation furnace 1set

Atomization chamber    1set

Collection chamber      1set

gas atomization system 1 set

Steel frame             1set

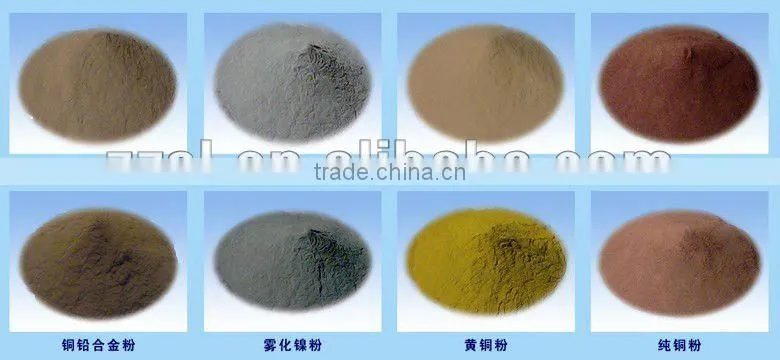

Powder made by our gas atomization equipment

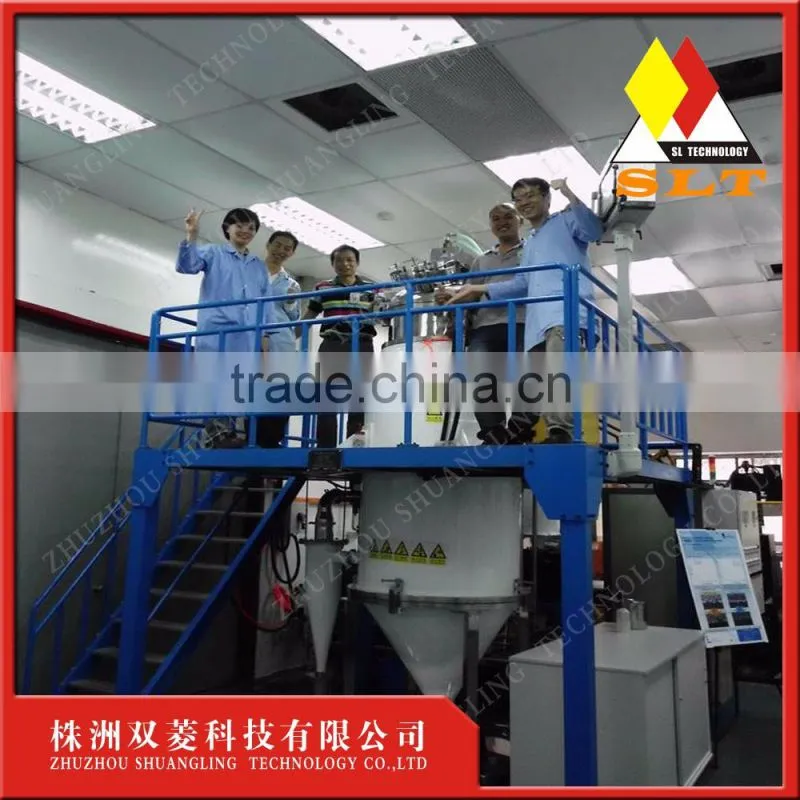

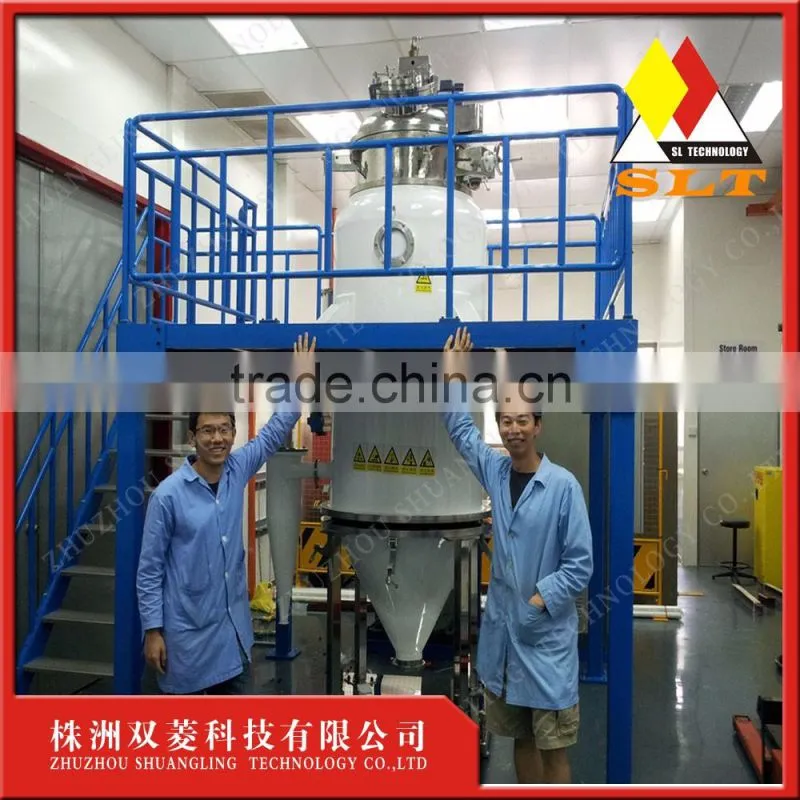

Our gas atomization equipment exported  in customer's site

Our customers and Distributors all over the world
