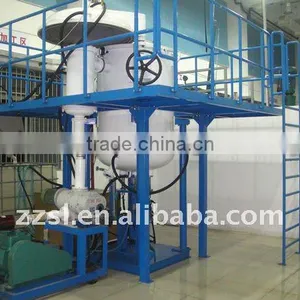

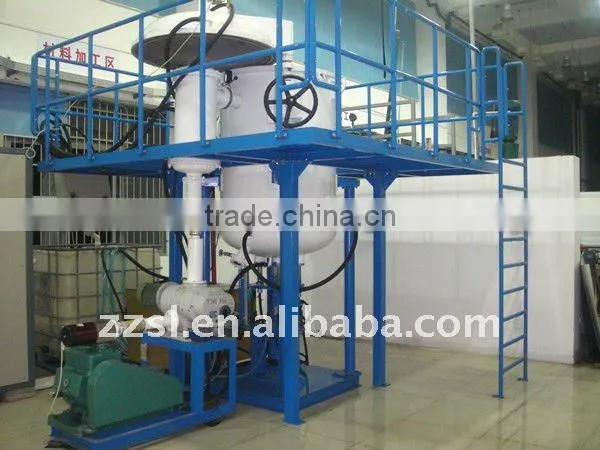

Polycrystalline silicon ingot casting furnace
Made of the sun level silicon ingot , can also be used to other semiconductor materials purification.
Features,
1.High control accuracy, crystallization rate adjusted freely
2,Using inductive casting method, increase mixing, casting speed solution
3,Directional solidification insulation adopts specially made heating power
4,Has three current balance, maintenance costs low
5,Using thermostatic degrees controlling instrument
Main technical parameters
Casting capacity 10-300KG
Power 50-400KW
Heating rate 40 °C / Min
Furnace temperature uniformity + 5 °C
Limiting vacuum 6.67 x 10 –2Pa
Pressure increase rate 0.01 PaL/S
Rated inflatable pressure 0.05 Mpa
Bubble means drop unidirectional solidification
Servo control scope 0.01 mm - 6mm/Min
Directional solidification rat 0.03 mm - 0.5 mm/Min
Crucible rising velocity 80 to 100 mm/Min
