china quality Bent axle quenching equipment
- 30 Set / Sets per Month
- SHANGHAI CHINA
- T/T L/C D/P D/A
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Jotun JT-SDJ Industrial Automatic Metal Sheet Surface Polishing Machine
- Large Metal Sheet Metal Workpiece Processing Deburring Chamfering Plane Belt Polishing Machine
- Heavy Duty Automatic Wide Belt Metal Sand Deburring Machine
- Metal Plate Deburring and Rust Removal Machine Steel Plate Sand Belt Drawing and Polishing Equipment Flat Polishing Machine
- Metal Flat Sheet Laser Cutting Parts Deburring Grinding Polishing Machine Manufacturer
Product Details
Place of Origin: | Hunan, China | Brand Name: | SHUANG LING | Model Number: | SL |
Product Description

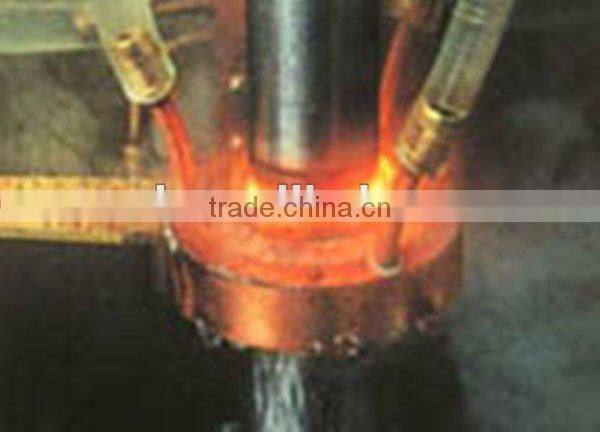

china quality Bent axle quenching equipment
1. Application
used for gears, bearings, axle, valve, cylinder and all kinds of car parts and machinery parts quenching and tempering treatment.
Output power 20-750KW
Output frequency 2.5-500KHZ
Quenching depth 0.3-15mm
The highest using temperature 1250 °C
Output voltage 20-800V
Quenching materials steel, iron
Quenching shapes various shapes
Up-down materials method Automatic and manual
Structure vertical or horizontal
We will match digital system according to various quenching process configuration.
Quench types
External circular quenching series, for all kinds of shaft, rods, tubes, circular parts (such as bearings, valve, etc) whole or local quenching of outside round face
Semi-atuo quenching series, for all kinds of tubing, mechanical parts inside circles whole or local quenching (such as cylinder liner, bushings, etc.)
Super-large parts of quenching series, the quality of larger, heavier super-large parts whole or local quenching (such as Marine gear, dam locks rails and large oil pipelines, roll, etc.)

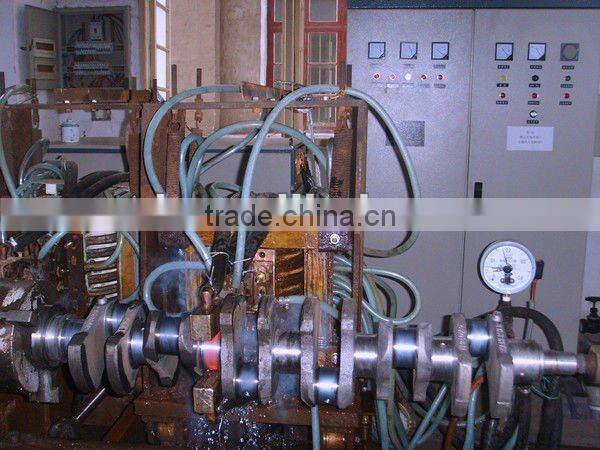

Bent axle quenching equipment
This equipment is mainly used for quenching all kinds of crankshaft surface, the structure is simple, the operation is convenient.
Roller induction quenching equipment
Quenching machine adopts integration design, by mechanical drive institutions, induction furnace, spray system lifting mechanism, workpiece rotate drive device, workpiece cooling device component, machine tool the whole work by mitsubishi PLC control constitutes. Photoelectric signal detection trip; Digital display choose interface.
Heating and cooling equipment adopts computer can be pre-set centralized control, process parameters, the production process automatic control. The computer screen can real-time display operation process parameters, and have the procedures and operation records storage, copy function of U disk
Main technical parameters
The biggest diameter workpiece 1200mm
6000mm workpiece maximum length
Workpiece move speed, 80-800mm/min
Workpiece rotate speed, 20-100r/min
Quenching mode, integral quenching
Cluth quenching equipment , thin product quenching equipment
1.Application
This equipment is mainly used to quench the clutch, the clutch disc hub, and other thin pieces products. The cluth and products will be durable ,they are not distorted after the quenching.The whole process of quenching is automatic continuity.
2.components
hydraulic press; high frequency power source,quenching machine tool,automatic feeding system,other equipment
