Home > Auto, Motorcycle Parts & Accessories > Auto Parts > Auto Compressor > 3v210-08 Pneumatic Solenoid Valve

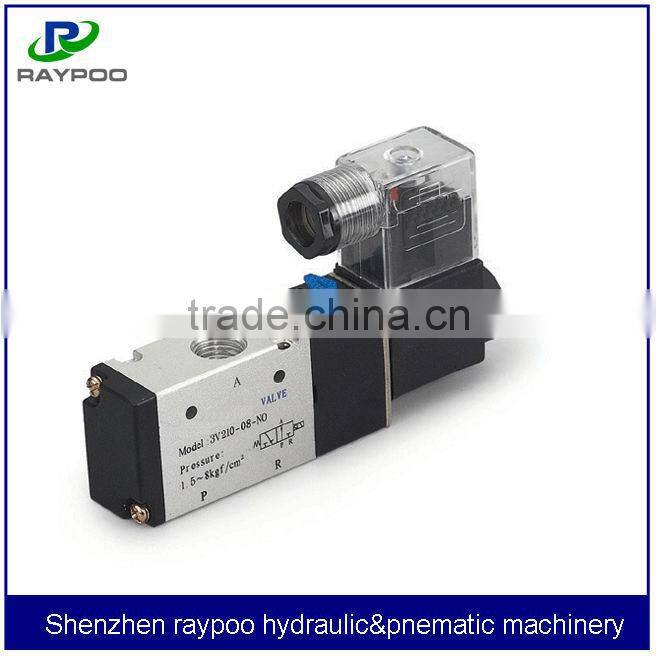

3v210-08 Pneumatic Solenoid Valve

Name: 3v210-08 Pneumatic Solenoid Valve
Brand: raypoo
SKU: 141614642
Availability: InStock

3v210-08 Pneumatic Solenoid Valve thumbnail-1

3v210-08 Pneumatic Solenoid Valve thumbnail-2

3v210-08 Pneumatic Solenoid Valve photo-1

3v210-08 Pneumatic Solenoid Valve photo-2

US$ 10 - 15 MOQ: 1 Piece

Key Specifications

Get Latest Price

Type:

Valves

Place of Origin:

Guangdong, China

Model Number:

3v210-08-NO-A

Contact Supplier Request Quote Chat Now

Shenzhen Raypoo Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Valves

Place of Origin Guangdong, China

Model Number 3v210-08-NO-A

Brand Name raypoo

Product Description

3v210-08 pneumatic solenoid valve

1.Pilot-oriented :internally piloted;

2.Stucture in sliding column mode:good tightness and sensitive reaction;

3.Double control solenoid valves have memory function;

4.Internal hole adopts special processing technology which has little attrition friction,low start pressure and long service life;

5.No need to add oil for lubrication;

6.Affiliated manual devices are equipped to facilitate installation and debugging;

7.Several standard voltage grades are optional.

8.Integrate with the manifold to save installation space.

Example	3V	2	10	08	NO	A	*	p
Meaings	Model	Code	Valve type	Port size	Acting type	Voltage	Electrical entry	Thread
Explain	3V1: Solenoid valve 3/2way	2:200 series	10:single solenoid 20:double solenoid	06:1/8” 10:1/4”	NC: Normally closed No: normally opened	A:AC220V B:DC24V C:AC110V F:DC12V	Blank: Terminal I:Grommet	P:PT T:NPT G:G

Model	3V210-06	3V220-06	3V210-08	3V320-08
Fluid	Air(to be filtered by 40um filter element
Acting	Internal Piloted
Port size	In=out=1/8”		In=out=1/4”
Orifice size	125.0mm2 (Cv=0.78)		30.0mm2 (Cv=0.89)
Valve type	3port 2 position
Lubrication	Not required
Operating pressure	0.15-0.8Mpa (21~114 Psi)
Proof pressure	1.5 Mpa (215 Psi)
Temperature	-20~70
Material of body	Aluminum alloy
Max.frequency	5 cycle/sec
Standard voltage	AC220V,AC110V,DC24V,DC12V
Scope of voltage	AC:±15% ,DC:±10%
Power consumption	AC:3.5VA DC:3.0W
Protection	IP65( DIN40050)
Temperature calssifiction	B Class
Electrical entry	Terminal,Grommet
Activating time	0.05 sec and below

Packaging & Shipping

How are orders packed and shipped?

Depends on customers' orders. All goods are packed with a plastic bag with an outer carton and a wooden pallet( fumigation).

Can be customized according to customer requirements

Our Services

We provide hydraulic, lubrication, pneumatic technology consulting, system design, and the parts.

Could Raypoo offer OEM service?

Yes. Raypo is able to offer OEM with customers' brand name and trademark onto the product.

Do Raypoo products come with a warranty?

Yes.Raypoo offer 1-year guarantee without abusive usage on all purchases which begins with the bill of lading.

Company Information

Shenzhen raypoo is a manufacturer of hydraulic products and engineered solutions serving the fluid power market.

The Company offers an engineering and manufacturing team capable of providing advanced technology in the design and production of unique fluid power components and electronic controls.

The Company's involvement focuses its expertise on markets in which customers demand top quality, prompt delivery, high performance and responsive aftermarket support.

The Company's products include hydraulic pumps, hydraulic motors, hydraulic valve ,valves controls manifolds, ,hydraulic cylinders, Industries that use these products include primary metals, machine tool, automobile, petroleum, construction equipment, chemical, plastic, glass, lumber, rubber and food.

The Company strives to serve those markets requiring high technology and expertise where reliability, top performance and longer service life are needed.

The products are sold as individual components or integrated into high performanceapplications.

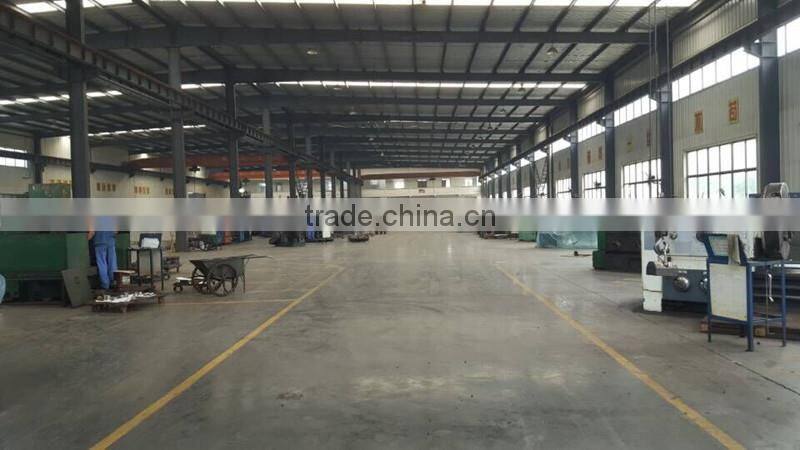

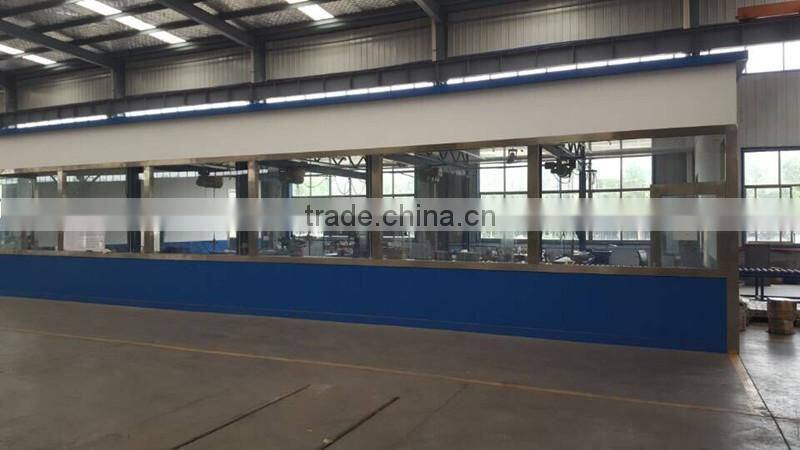

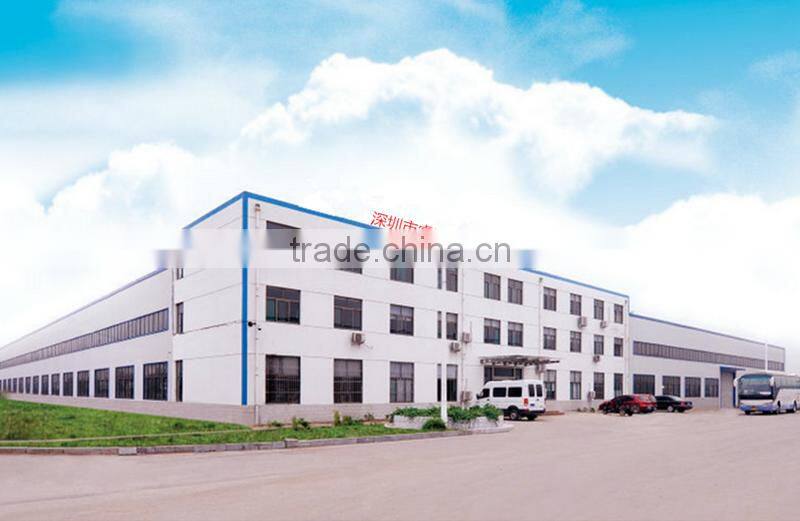

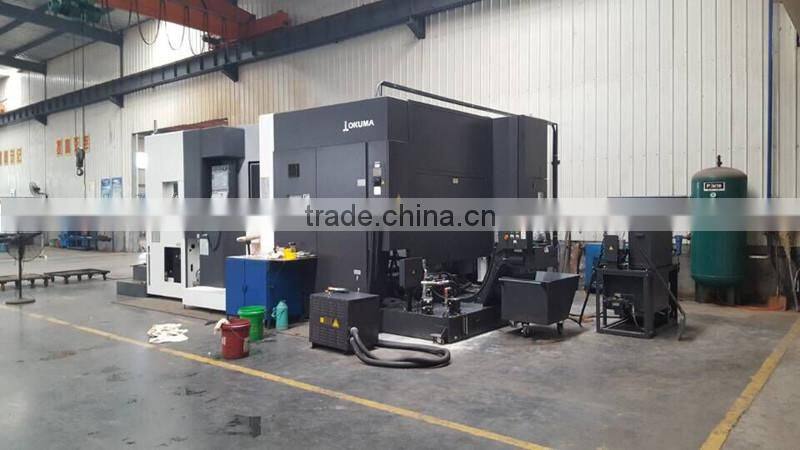

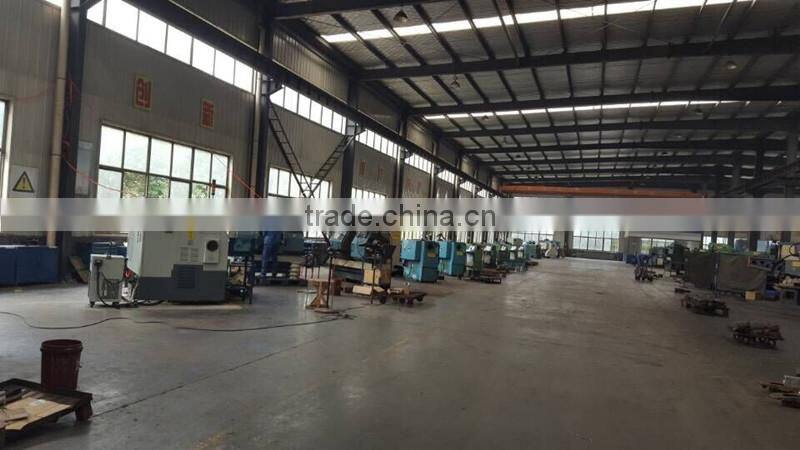

Plant and equipment Photos :

FAQ

Q.How to request a manufacturing quotation from Raypoo?

A.Give us a call or send us an E-mail with your purchase request.

Q.What are your quality control procedures?

A.Raypoo is equippedwith high-tech, advancedcomputerized and self-inspection machineries, manufactures thousands of different parts in house to ensure the built-in quality and dependable performance. This is the reason why Raypoo is recognized as on the world class quality level.
