Home > Tools & Hardware > Hydraulic Parts > Hydraulic Cylinder > Smc Type Compressed Air Cylinder

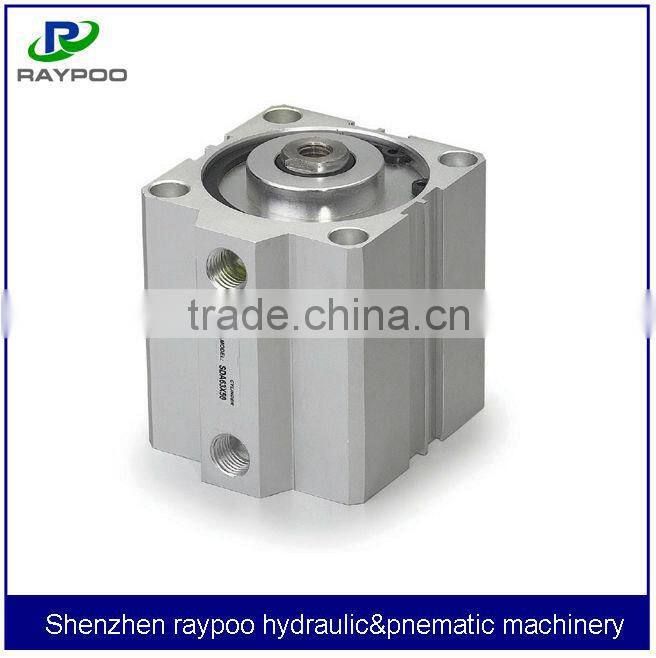

Smc Type Compressed Air Cylinder

Name: Smc Type Compressed Air Cylinder
Brand: raypoo
SKU: 141614490
Availability: InStock

Smc Type Compressed Air Cylinder thumbnail-1

Smc Type Compressed Air Cylinder photo-1

US$ 20 - 35 MOQ: 1 Piece

Key Specifications

Get Latest Price

Standard or Nonstandard:

Standard

Structure:

Cushioned Cylinder

Power:

Pneumatic

Contact Supplier Request Quote Chat Now

Shenzhen Raypoo Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard or Nonstandard Standard

Structure Cushioned Cylinder

Power Pneumatic

Body Material Aluminum

Maximum Stroke 100

Shaft Diameter 100

Place of Origin Guangdong, China

Model Number SDA

Brand Name raypoo

Product Description

compacct air cylinder compressed air cylinder

1.Riveted structure is adopted to connect the cylinder body and back cover,and piston and piston rod to make it compact and reliable;

2.The inner diameter of the body is treated with rolling followed by the treatment of hard anodiaing,forming and excellent abrasion resistance and durability.

3.The seal of piston adopts heterogeneous two-way seal structure.It has compact dimension and the function of oil reservation;

4.Compact structure can effectively save installation space;

5.There are magnetic swith slots around the cylinder body,which is convenient to install sensor swith;

6.Mounting accessories with various specifications are optional.

Example	*SDAJ S 40 50 -20 - B - P**
Meaings	Model(Compact cylinder)	Magnet	Bore size	Stroke	Ajustable stroke	Rod type	Thread
Explain	SDA: double acting SSA: single acting push STA: single acting pull SDAD:double rod	Blank: No magnet S:with magnet			No this code	Blank: Female thread B: Male thread N: No thread	P:PT T:NPT G:G
	SDAJ: adjustable stroke
					10:10mm 20:20mm 30:30mm 40:40mm 50:50mm
	SDAT: duplex type SDAW: duplex-end type				This code is stroke2

Bore size mm

100

Acting type

Double acting type

Single acting-push type

Single acting-pull type

Fluid

Air ( to be filtered by 40um filter element)

Operating pressure

Double acting

0.1~1.0Mpa (14~145 psi)

Single acting

0.2~1.0 Mpa (28~145 psi)

Proof pressure

1.5Mpa (215psi)

Temperature °C

-20~80

Speed range mm/s

double acting type : 30~500

single acting type : 50~500

Stroke tolerance

+ 1.0

Cushion type

Bumper

Port size

M5*0.8

1/8”

1/4”

3/8”

Packaging & Shipping

How are orders packed and shipped?

Depends on customers' orders. All goods are packed with a plastic bag with an outer carton and a wooden pallet( fumigation).

Can be customized according to customer requirements

Our Services

We provide hydraulic, lubrication, pneumatic technology consulting, system design, and the parts.

Could Raypoo offer OEM service?

Yes. Raypo is able to offer OEM with customers' brand name and trademark onto the product.

Do Raypoo products come with a warranty?

Yes.Raypoo offer 1-year guarantee without abusive usage on all purchases which begins with the bill of lading.

Company Information

Shenzhen raypoo is a manufacturer of hydraulic products and engineered solutions serving the fluid power market.

The Company offers an engineering and manufacturing team capable of providing advanced technology in the design and production of unique fluid power components and electronic controls.

The Company's involvement focuses its expertise on markets in which customers demand top quality, prompt delivery, high performance and responsive aftermarket support.

The Company's products include hydraulic pumps, hydraulic motors, hydraulic valve ,valves controls manifolds, ,hydraulic cylinders, Industries that use these products include primary metals, machine tool, automobile, petroleum, construction equipment, chemical, plastic, glass, lumber, rubber and food.

The Company strives to serve those markets requiring high technology and expertise where reliability, top performance and longer service life are needed.

The products are sold as individual components or integrated into high performanceapplications.

Plant and equipment Photos :

FAQ

Q.How to request a manufacturing quotation from Raypoo?

A.Give us a call or send us an E-mail with your purchase request.

Q.What are your quality control procedures?

A.Raypoo is equippedwith high-tech, advancedcomputerized and self-inspection machineries, manufactures thousands of different parts in house to ensure the built-in quality and dependable performance. This is the reason why Raypoo is recognized as on the world class quality level.
