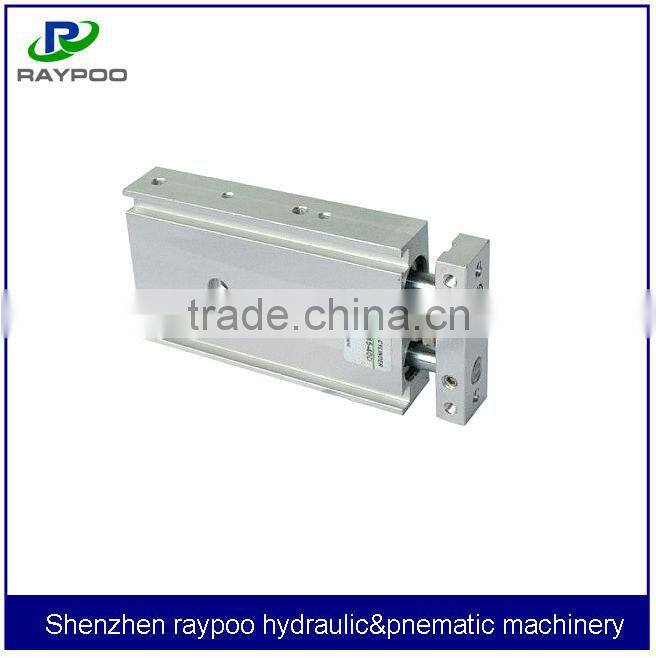

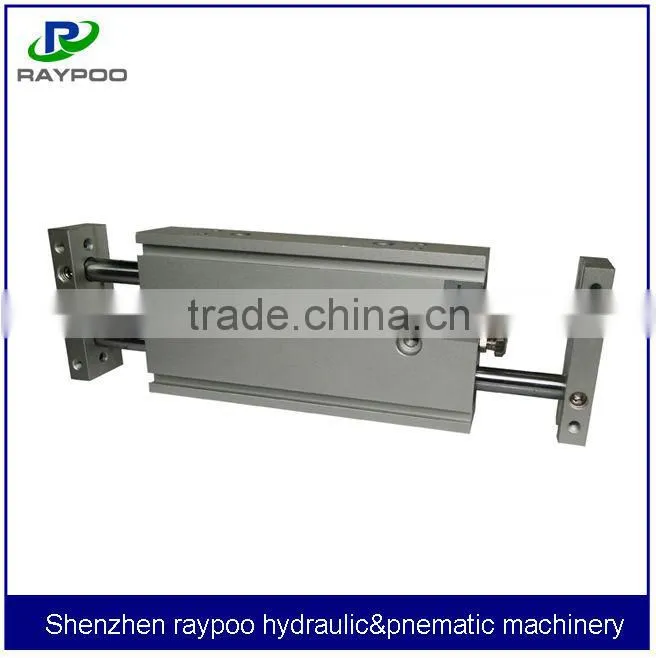

CXSM series air cylinder SMC pneumatic cylinder price
Example | CXSM | 10 | * | 50 | R | Y7BW | * |
Meaings | Bearing type | Bore size | Thread type | Stroke (mm) |
| Auto switch | Number of auto switches |
Explain | M: slide bearing L: Ball sushing bearing | 6,10,15,20,25,32 | P:PT T:NPT G:G | 10,20,30,40,50,75,100 | With end lock for retraction side | Nil:without auto switch(built-in magnet) | Nil:2 pcs S: 1 pcs N: n pcs |
Bore size mm | 6 | 10 | 15 | 20 | 25 | 32 |
Fluid | Air ( to be filtered by 40um filter element) | |||||
Operating pressure | 0.3~0.7Mpa (14~145 psi) | |||||
Proof pressure | 1.05Mpa | |||||
Temperature °C | -10~60 | |||||
Speed range mm/s | 30~300 | 30~800 | 30~700 | 30~600 | ||
Cushion type | Bumper is standard on both ends | |||||
Non-Rotating tolerance | ±0.10 | ±0.050 | ||||
Port size | M5*0.8 | 1/8” | ||||
Bearing type | Slide bearing,ball sushing bearing (same dimension for both) | |||||
Allowable kinetic energy | 0.0023J | 0.064J | 0.095J | 0.17J | 0.27J | 0.32J |
How are orders packed and shipped?
Depends on customers' orders. All goods are packed with a plastic bag with an outer carton and a wooden pallet( fumigation).
Can be customized according to customer requirements
We provide hydraulic, lubrication, pneumatic technology consulting, system design, and the parts.
Could Raypoo offer OEM service?
Yes. Raypo is able to offer OEM with customers' brand name and trademark onto the product.
Do Raypoo products come with a warranty?
Yes.Raypoo offer 1-year guarantee without abusive usage on all purchases which begins with the bill of lading.
Shenzhen raypoo is a manufacturer of hydraulic products and engineered solutions serving the fluid power market.
The Company offers an engineering and manufacturing team capable of providing advanced technology in the design and production of unique fluid power components and electronic controls.
The Company's involvement focuses its expertise on markets in which customers demand top quality, prompt delivery, high performance and responsive aftermarket support.
The Company's products include hydraulic pumps, hydraulic motors, hydraulic valve ,valves controls manifolds, ,hydraulic cylinders, Industries that use these products include primary metals, machine tool, automobile, petroleum, construction equipment, chemical, plastic, glass, lumber, rubber and food.
The Company strives to serve those markets requiring high technology and expertise where reliability, top performance and longer service life are needed.
The products are sold as individual components or integrated into high performanceapplications.
Plant and equipment Photos :
Q.How to request a manufacturing quotation from Raypoo?
A.Give us a call or send us an E-mail with your purchase request.
Q.What are your quality control procedures?
A.Raypoo is equippedwith high-tech, advancedcomputerized and self-inspection machineries, manufactures thousands of different parts in house to ensure the built-in quality and dependable performance. This is the reason why Raypoo is recognized as on the world class quality level.
